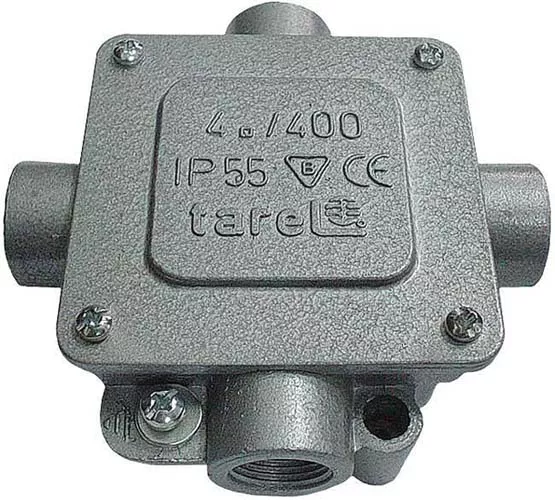

Odgałęźnik metalowy 5x16/3-36 IP-55
Information | Value |
---|---|
Supplier | Tarnowskie Zakłady Osprzętu Elektrycznego TAREL sp. z o.o. |
Symbol | 068-V |
GTIN(EAN) | 5903874956853 |
Price unit | piece |
Catalog price | 282,90 zł (230,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

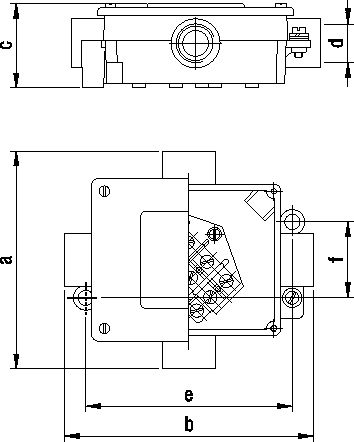

Odgałęźnik metalowy,5x16/3-36,IP-55,Wymiary gabarytowe (mm) dł.72,szer.215,wys.160,Wymiary montażowe (mm) poziom 195, pion 100,Dławnica max fi 36
Additional features:
Information | Value |
---|---|
Net weight: | 980 g |
ETIM class: | Box/housing for surface mounting on the wall/ceiling |
Max. conductor cross section: | 16 mm² |
Equipped with: | Clamp |
Shape: | Rectangular |
Mounting method: | Wall-/ceiling mounting |
For tube diameter: | Other |
Inlet from the rear: | no |
Length: | 160 mm |
Width: | 215 mm |
Depth: | 72 mm |
Diameter: | 0 mm |
Tackable: | no |
Number of inlets: | 2 |
Type of housing feed-through: | Thread |
Material: | Aluminium |
Halogen free: | yes |
Surface protection: | Other |
Colour: | Grey |
Degree of protection (IP): | IP55 |
Cover model: | Blind cover |
Cover attachment: | Screwed |
Castable: | no |
With casting compound: | no |
Sealable: | no |
Rated insulation voltage Ui: | 400 V |
Circuit integrity: | None |
With screening: | no |
Explosion-tested version: | no |
For Ex-zone gas: | None |
For Ex-Zone dust: | None |
