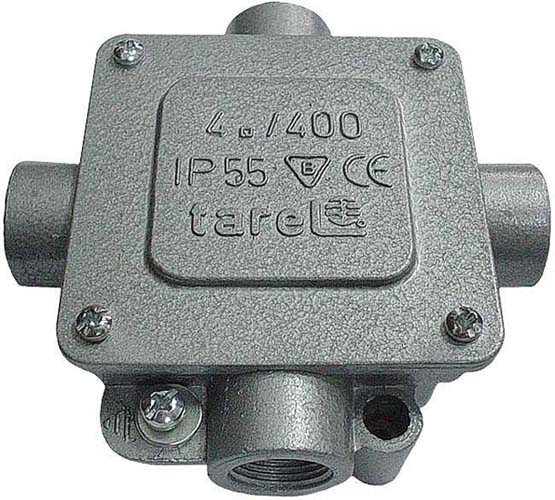

Odgałęźnik metalowy 5x16/3-29 IP-55
| Information | Value |
|---|---|
| Supplier | Tarnowskie Zakłady Osprzętu Elektrycznego TAREL sp. z o.o. |
| Symbol | 068-II |
| GTIN(EAN) | 5903874956822 |
| Price unit | piece |
| Catalog price | 282,90 zł (230,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

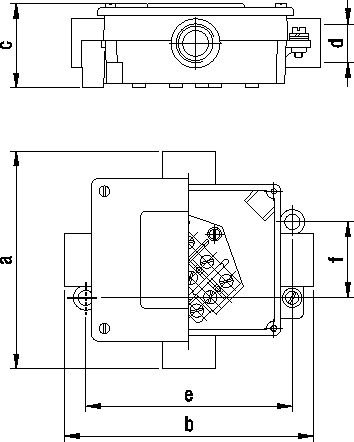

Odgałęźnik metalowy,5x16/3-29,IP-55,Wymiary gabarytowe (mm) dł.72,szer.215,wys.160,Wymiary montażowe (mm) poziom 195, pion 100,Dławnica max fi 29
Additional features:
| Information | Value |
|---|---|
| Net weight: | 970 g |
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Max. conductor cross section: | 16 mm² |
| Equipped with: | Clamp |
| Shape: | Rectangular |
| Mounting method: | Wall-/ceiling mounting |
| For tube diameter: | Other |
| Inlet from the rear: | no |
| Length: | 160 mm |
| Width: | 215 mm |
| Depth: | 72 mm |
| Diameter: | 0 mm |
| Tackable: | no |
| Number of inlets: | 3 |
| Type of housing feed-through: | Thread |
| Material: | Aluminium |
| Halogen free: | yes |
| Surface protection: | Other |
| Colour: | Grey |
| Degree of protection (IP): | IP55 |
| Cover model: | Blind cover |
| Cover attachment: | Screwed |
| Castable: | no |
| With casting compound: | no |
| Sealable: | no |
| Rated insulation voltage Ui: | 400 V |
| Circuit integrity: | None |
| With screening: | no |
| Explosion-tested version: | no |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
