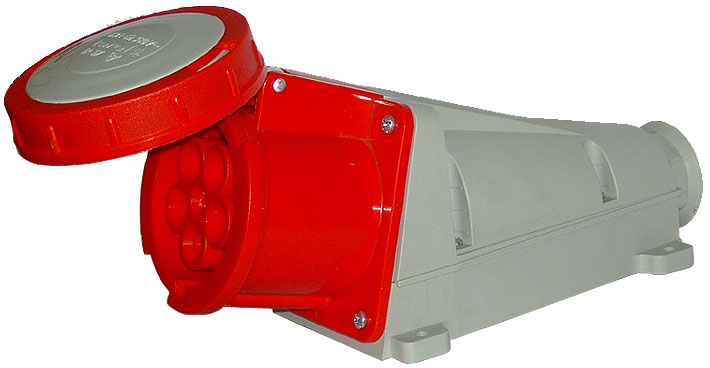

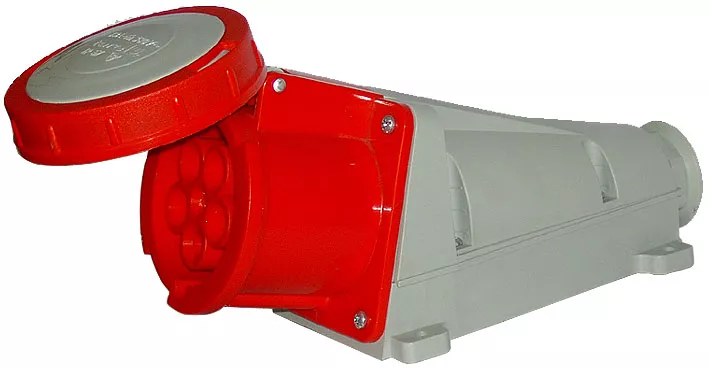

Gniazdo izolacyjne stałe 63A /400V 3p+n+z IP-67
| Information | Value |
|---|---|
| Supplier | Tarnowskie Zakłady Osprzętu Elektrycznego TAREL sp. z o.o. |
| Symbol | 050 |
| GTIN(EAN) | 5903874950509 |
| Price unit | piece |
| Catalog price | 182,53 zł (148,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Gniazdo izolacyjne stałe,63A,400V,5 styk,3P+N+Z,IP67, z zaciskami gwintowymi,Przyłączalność przewodów 6.0–10.0,UWAGA: Maksymalna średnica przyłączanego kabla – fi 28 mm
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1000 g |
| ETIM class: | CEE socket outlet (IEC 60309) |
| Model: | Surface mounted |
| IEC-amperage: | 63 A |
| Amperage according to UL/CSA (for UL-version): | 63 A |
| Number of poles: | 5 |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Clock hour position: | 6 h |
| Identification colour: | Red |
| RAL-number: | 3020 |
| Degree of protection (IP): | IP67 |
| Connection system: | Screwed terminal |
| Cable entry: | Gland nut |
| Material: | Plastic |
| Contact material: | CuZn |
| Surface treatment contacts: | Untreated |
| Type of fastening: | Inner lying mounting |
| Insulated mounting: | yes |
| Military model: | no |
