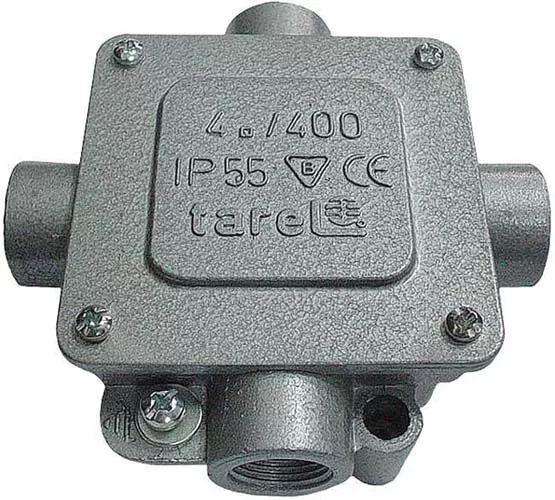

Odgałęźnik metalowy 5x4/4-16 IP-55
Information | Value |
---|---|
Supplier | Tarnowskie Zakłady Osprzętu Elektrycznego TAREL sp. z o.o. |
Symbol | 021 |
GTIN(EAN) | 5903874950219 |
Price unit | piece |
Catalog price | 102,34 zł (83,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

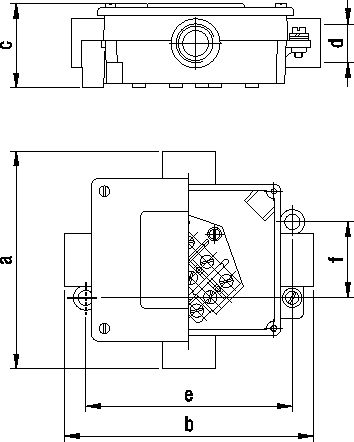

Odgałęźnik metalowy,5x4/4-16,IP-55,Wymiary gabarytowe (mm) dł.42,szer.110,wys.110,Wymiary montażowe (mm) poziom 88, pion 40,Dławnica max fi 16
Additional features:
Information | Value |
---|---|
Net weight: | 260 g |
ETIM class: | Box/housing for surface mounting on the wall/ceiling |
Max. conductor cross section: | 4 mm² |
Equipped with: | Clamp |
Shape: | Rectangular |
Mounting method: | Wall-/ceiling mounting |
For tube diameter: | Other |
Inlet from the rear: | no |
Length: | 110 mm |
Width: | 110 mm |
Depth: | 42 mm |
Diameter: | 0 mm |
Tackable: | no |
Number of inlets: | 4 |
Type of housing feed-through: | Thread |
Material: | Aluminium |
Halogen free: | yes |
Surface protection: | Other |
Colour: | Grey |
Degree of protection (IP): | IP55 |
Cover model: | Blind cover |
Cover attachment: | Screwed |
Castable: | no |
With casting compound: | no |
Sealable: | no |
Rated insulation voltage Ui: | 400 V |
Circuit integrity: | None |
With screening: | no |
Explosion-tested version: | no |
For Ex-zone gas: | 2 |
For Ex-Zone dust: | None |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-01-02 00:03:26 |
