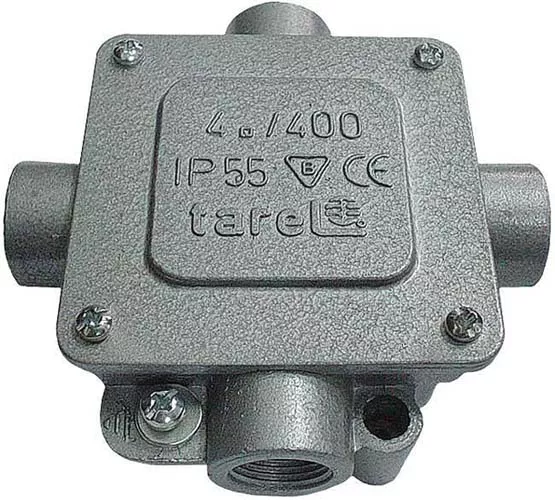

Odgałęźnik metalowy 5x2,5/4-11 IP-55
| Information | Value |
|---|---|
| Supplier | Tarnowskie Zakłady Osprzętu Elektrycznego TAREL sp. z o.o. |
| Symbol | 018 |
| GTIN(EAN) | 5903874950189 |
| Price unit | piece |
| Catalog price | 102,34 zł (83,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

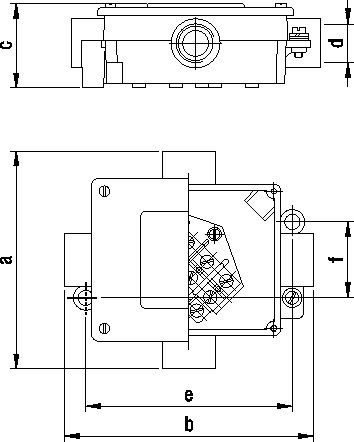

Odgałęźnik metalowy,5x2,5/4-11 IP-55,Wymiary gabarytowe (mm) dł.42,szer.110,wys.110,Wymiary montażowe (mm) poziom 88, pion 40,Dławnica max fi 11
Additional features:
| Information | Value |
|---|---|
| Net weight: | 300 g |
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Max. conductor cross section: | 2.5 mm² |
| Equipped with: | Clamp |
| Shape: | Rectangular |
| Mounting method: | Wall-/ceiling mounting |
| For tube diameter: | Other |
| Inlet from the rear: | no |
| Length: | 110 mm |
| Width: | 110 mm |
| Depth: | 42 mm |
| Diameter: | 0 mm |
| Tackable: | no |
| Number of inlets: | 4 |
| Type of housing feed-through: | Thread |
| Material: | Aluminium |
| Halogen free: | yes |
| Surface protection: | Other |
| Colour: | Grey |
| Degree of protection (IP): | IP55 |
| Cover model: | Blind cover |
| Cover attachment: | Screwed |
| Castable: | no |
| With casting compound: | no |
| Sealable: | no |
| Rated insulation voltage Ui: | 400 V |
| Circuit integrity: | None |
| With screening: | no |
| Explosion-tested version: | no |
| For Ex-zone gas: | 2 |
| For Ex-Zone dust: | None |
