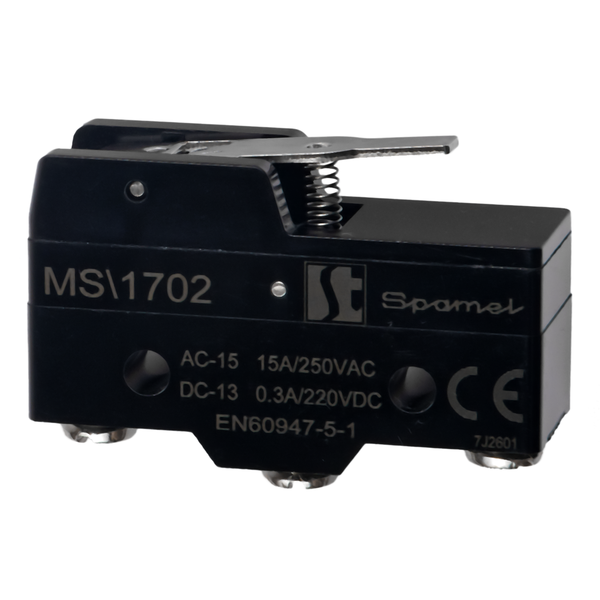

ŁĄCZNIK MINIATUROWY DŹWIGNIA PŁASKA KRÓTKA
| Information | Value |
|---|---|
| Supplier | SPAMEL Spółdzielnia Inwalidów |
| Symbol | MS\1702 |
| GTIN(EAN) | 5907723243248 |
| Price unit | piece |
| Catalog price | 34,54 zł (28,08 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
ŁĄCZNIK MINIATUROWY DŹWIGNIA PŁASKA KRÓTKA
Additional features:
| Information | Value |
|---|---|
| Net weight: | 45 g |
| Gross weight: | 76 g |
| ETIM class: | End switch |

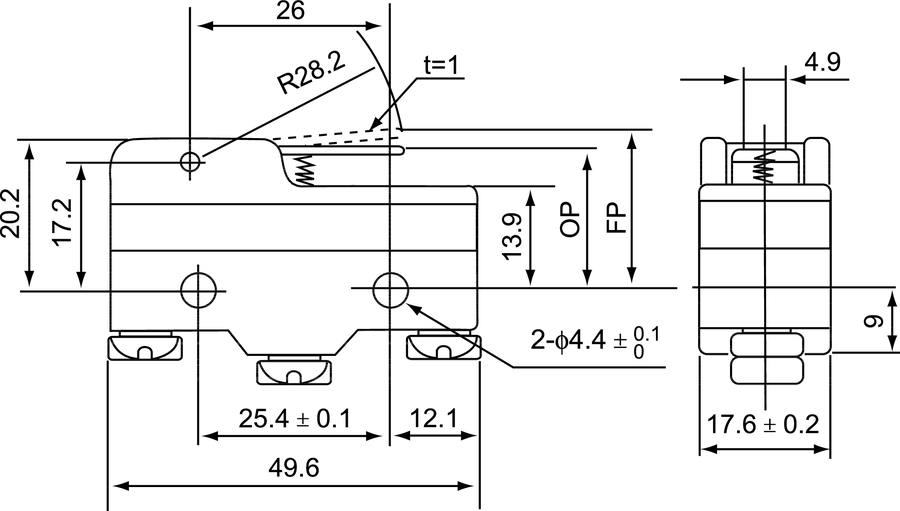

| Width sensor: | 17.8 mm |
| Height of sensor: | 23.7 mm |
| Length of sensor: | 49.6 mm |
| Rated operation current Ie at AC-15, 24 V: | 5 A |
| Rated operation current Ie at AC-15, 125 V: | 5 A |
| Rated operation current Ie at AC-15, 230 V: | 5 A |
| Rated operation current Ie at DC-13, 24 V: | 5 A |
| Rated operation current Ie at DC-13, 125 V: | 0.4 A |
| Rated operation current Ie at DC-13, 230 V: | 0.2 A |
| Switching function: | Quick-break switch |
| Switching function latching: | no |
| Output electronic: | no |
| Forced opening: | no |
| Number of safety auxiliary contacts: | 0 |
| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 2 |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cuboid |
| Housing material: | Plastic |
| Coating housing: | Other |
| Type of control element: | Actuating rod |
| Alignment of the control element: | Other |
| Type of electric connection: | Other |
| With status indication: | no |
| Suitable for safety functions: | yes |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Ambient temperature during operating: | -25 - 80 °C |
| Degree of protection (IP): | IP65 |
