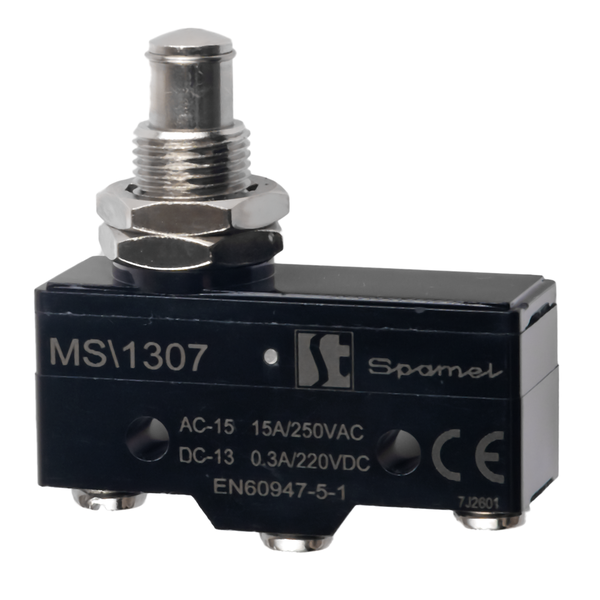

ŁĄCZNIK MINIATUROWY POPYCHACZ PROSTY DŁUGI
Information | Value |
---|---|
Supplier | SPAMEL Spółdzielnia Inwalidów |
Symbol | MS\1307 |
GTIN(EAN) | 5907723243309 |
Price unit | piece |
Catalog price | 34,54 zł (28,08 zł + 23% VAT) |
Sale price | from 16,38 zł / szt. (13,32 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
ŁĄCZNIK MINIATUROWY POPYCHACZ PROSTY DŁUGI
Additional features:
Information | Value |
---|---|
Net weight: | 45 g |
Gross weight: | 76 g |
ETIM class: | End switch |

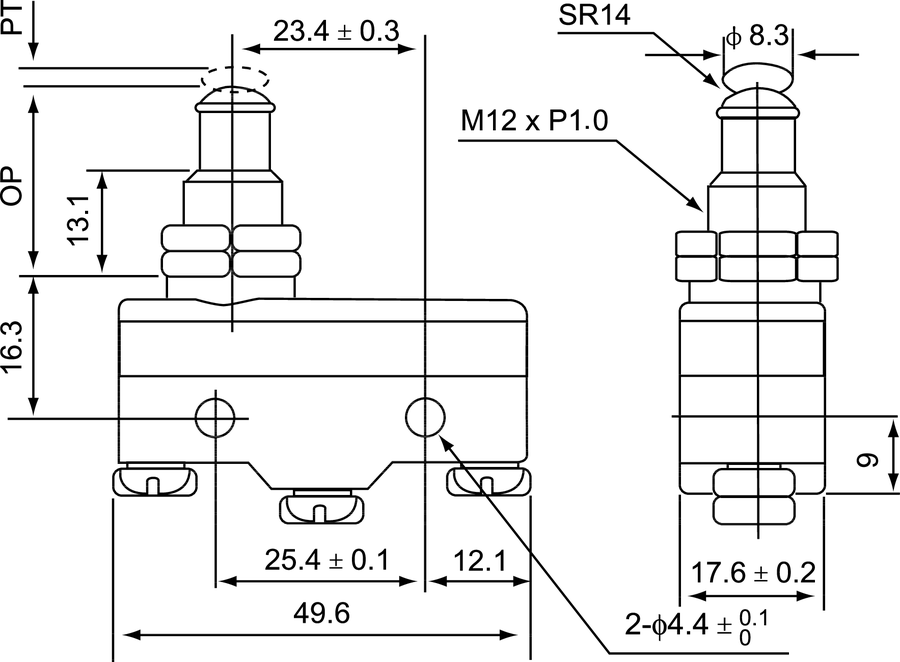

Width sensor: | 17.8 mm |
Height of sensor: | 23.7 mm |
Length of sensor: | 49.6 mm |
Rated operation current Ie at AC-15, 24 V: | 5 A |
Rated operation current Ie at AC-15, 125 V: | 5 A |
Rated operation current Ie at AC-15, 230 V: | 5 A |
Rated operation current Ie at DC-13, 24 V: | 5 A |
Rated operation current Ie at DC-13, 125 V: | 0.4 A |
Rated operation current Ie at DC-13, 230 V: | 0.2 A |
Switching function: | Quick-break switch |
Switching function latching: | no |
Output electronic: | no |
Forced opening: | no |
Number of safety auxiliary contacts: | 0 |
Number of contacts as normally closed contact: | 1 |
Number of contacts as normally open contact: | 1 |
Number of contacts as change-over contact: | 2 |
Type of interface: | None |
Type of interface for safety communication: | None |
Construction type housing: | Cuboid |
Housing material: | Plastic |
Coating housing: | Other |
Type of control element: | Plunger |
Alignment of the control element: | Other |
Type of electric connection: | Other |
With status indication: | no |
Suitable for safety functions: | yes |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Ambient temperature during operating: | -25 - 80 °C |
Degree of protection (IP): | IP65 |
