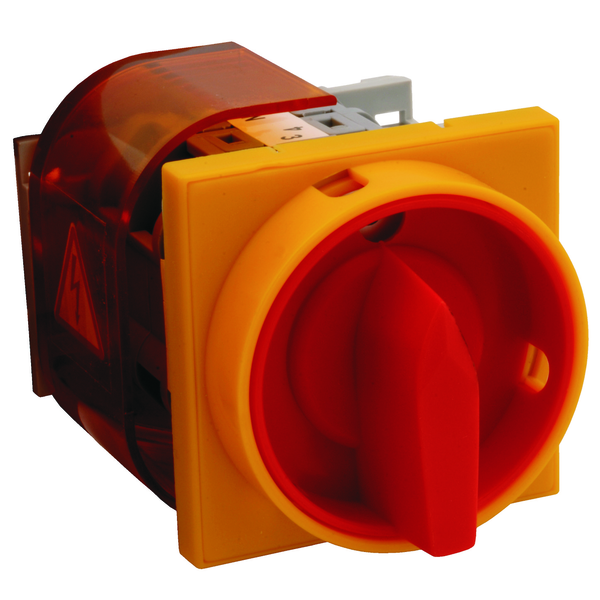

Rozłącznik Główny 25A, mocowanie do pulpitu czoło zamykane czarne
| Information | Value |
|---|---|
| Supplier | SPAMEL Spółdzielnia Inwalidów |
| Symbol | ŁK25RG\P07 |
| GTIN(EAN) | 5907723007796 |
| Price unit | piece |
| Catalog price | 135,61 zł (110,25 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zastosowanie
Rozłączniki główne służą do załączania i wyłączania obwodów 3-fazowych o prądach do 16; 25; 32A, z pokrętłem zamykanym i osłoną zacisków przyłączowych.
W standardowym wykonaniu stosowany jest łącznik
ŁK 16/25/32R-2.421.
» Pokaż produkty
» Wyszukiwarka łączników (schematy, diagramy)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 213,6 g |
| Gross weight: | 228,6 g |
| ETIM class: | Off-load switch |
| Type of control element: | Turn button |
| Type of electrical connection of main circuit: | Clamp bracket |
| Suitable for floor mounting: | no |
| Suitable for intermediate mounting: | no |
| Rated operation power at AC-3, 400 V: | 13 kW |
| Rated permanent current Iu: | 25 A |
| Degree of protection (IP), front side: | IP65 |
| With zero (off) position: | yes |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Complete device in housing: | no |
| Number of poles: | 3 |
| Suitable for distribution board installation: | yes |
| Suitable for front mounting: | yes |
| Number of auxiliary contacts as normally open contact: | 0 |
| Model: | On/Off switch |
