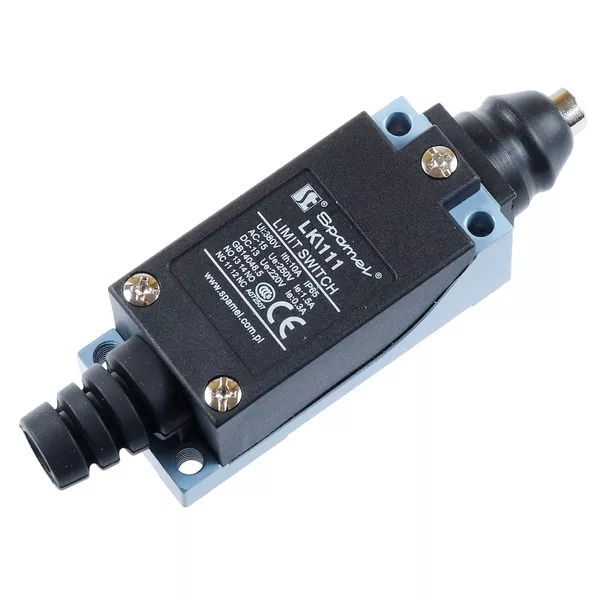

ŁĄCZNIK KRAŃCOWY (METAL / TWORZYWO) Z POPYCHACZEM
Information | Value |
---|---|
Supplier | SPAMEL Spółdzielnia Inwalidów |
Symbol | LK\111 |
GTIN(EAN) | 5907723213289 |
Price unit | piece |
Catalog price | 76,73 zł (62,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Dwuobwodowy łącznik krańcowy
Wytrzymała konstrukcja ze sztywnego plastiku i stopu aluminium (górna część i osłona tworzą zwartą formę)
Małe rozmiary, konstrukcja wodo- i olejoodporna. Wbudowany łącznik z podwójnym mechanizmem sprężynowym
Większa trwałość mechaniczna. Płynne działanie, dłuższy czas pracy
Konstrukcja otworów ułatwia montaż przewodów
Bogaty wybór elementów uruchamiających, łatwość obsługi
Additional features:
Information | Value |
---|---|
Net weight: | 160 g |
Gross weight: | 160 g |
ETIM class: | End switch |

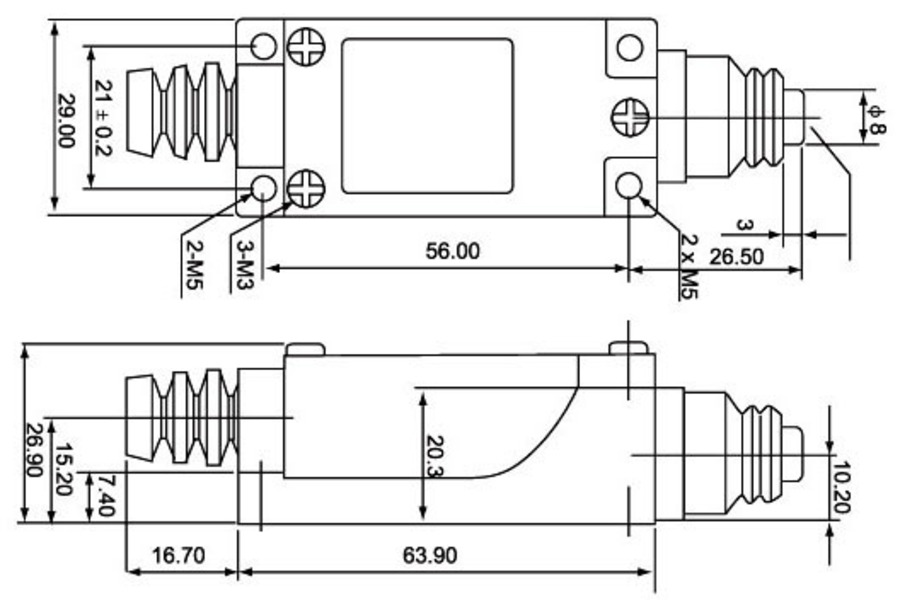

Width sensor: | 29 mm |
Height of sensor: | 26.9 mm |
Length of sensor: | 63.9 mm |

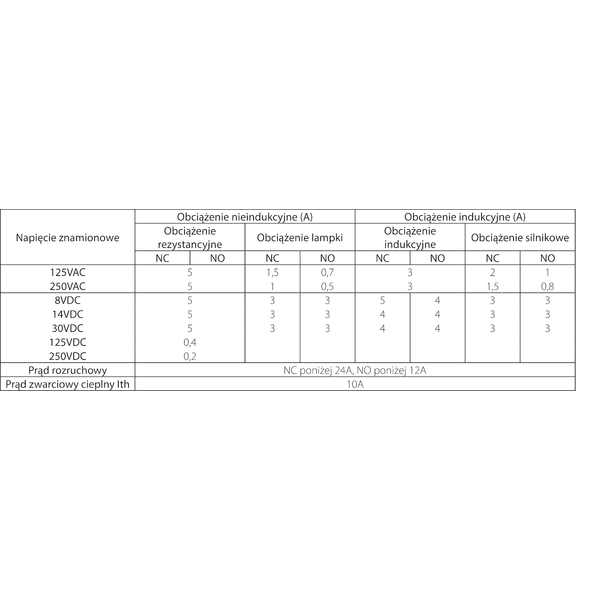

Rated operation current Ie at AC-15, 24 V: | 5 A |
Rated operation current Ie at AC-15, 125 V: | 5 A |
Rated operation current Ie at AC-15, 230 V: | 5 A |
Rated operation current Ie at DC-13, 24 V: | 5 A |
Rated operation current Ie at DC-13, 125 V: | 0.4 A |
Rated operation current Ie at DC-13, 230 V: | 0.2 A |
Switching function: | Quick-break switch |
Switching function latching: | no |
Output electronic: | no |
Forced opening: | no |
Number of safety auxiliary contacts: | 0 |

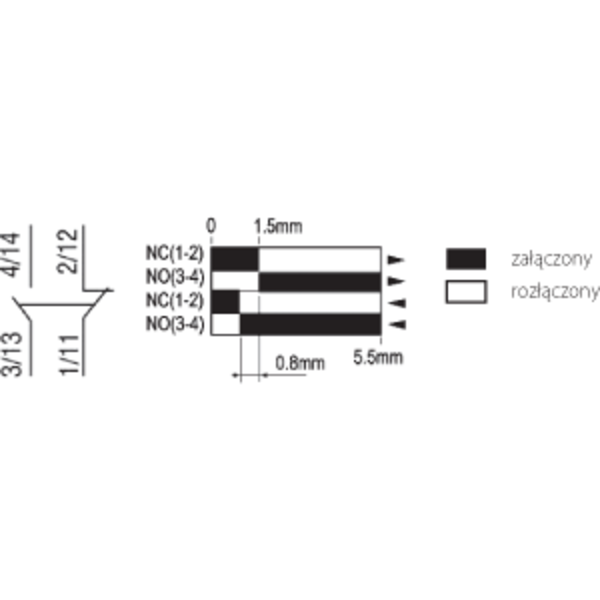

Number of contacts as normally closed contact: | 1 |
Number of contacts as normally open contact: | 1 |
Number of contacts as change-over contact: | 2 |
Type of interface: | None |
Type of interface for safety communication: | None |
Construction type housing: | Cuboid |
Housing material: | Metal |
Coating housing: | Other |

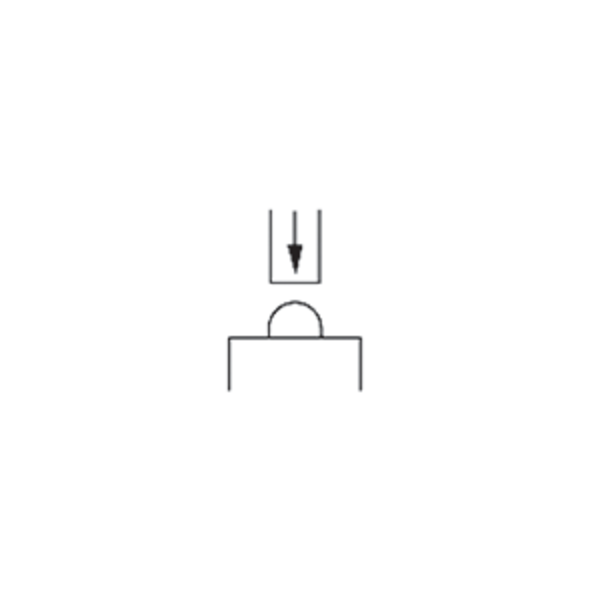

Type of control element: | Plunger |
Alignment of the control element: | Other |
Type of electric connection: | Cable entry PG |
With status indication: | no |
Suitable for safety functions: | yes |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Ambient temperature during operating: | -10 - 70 °C |
Degree of protection (IP): | IP65 |
