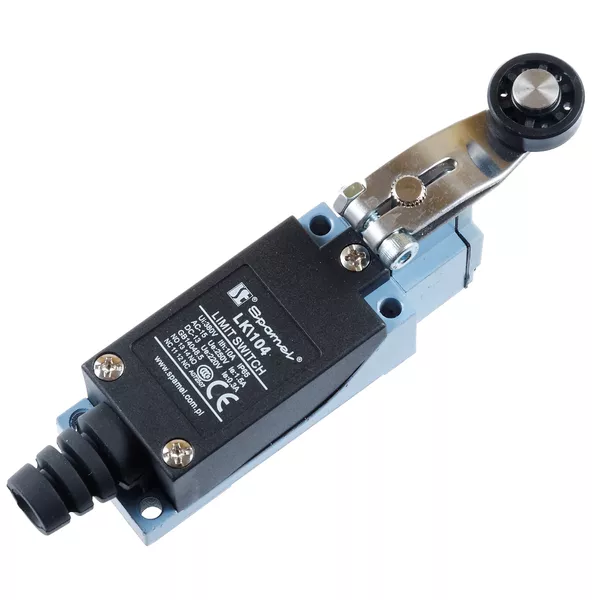

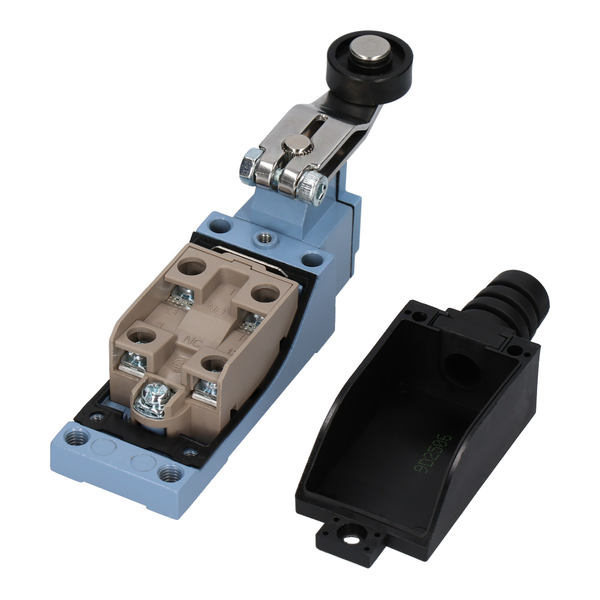

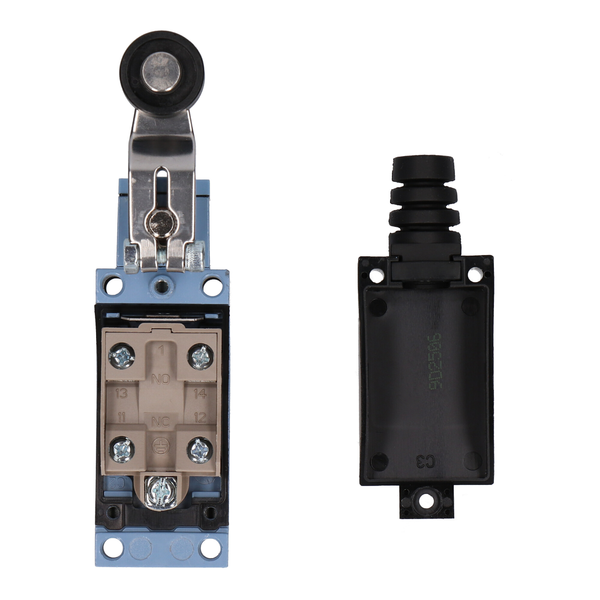

ŁĄCZNIK KRAŃCOWY (METAL / TWORZYWO) DŹWIGNIA Z ROLKĄ
| Information | Value |
|---|---|
| Supplier | SPAMEL Spółdzielnia Inwalidów |
| Symbol | LK\104 |
| GTIN(EAN) | 5907723213241 |
| Price unit | piece |
| Catalog price | 76,73 zł (62,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Dwuobwodowy łącznik krańcowy
Wytrzymała konstrukcja ze sztywnego plastiku i stopu aluminium (górna część i osłona tworzą zwartą formę)
Małe rozmiary, konstrukcja wodo- i olejoodporna. Wbudowany łącznik z podwójnym mechanizmem sprężynowym
Większa trwałość mechaniczna. Płynne działanie, dłuższy czas pracy
Konstrukcja otworów ułatwia montaż przewodów
Bogaty wybór elementów uruchamiających, łatwość obsługi
Additional features:
| Information | Value |
|---|---|
| Net weight: | 190 g |
| Gross weight: | 190 g |
| ETIM class: | End switch |

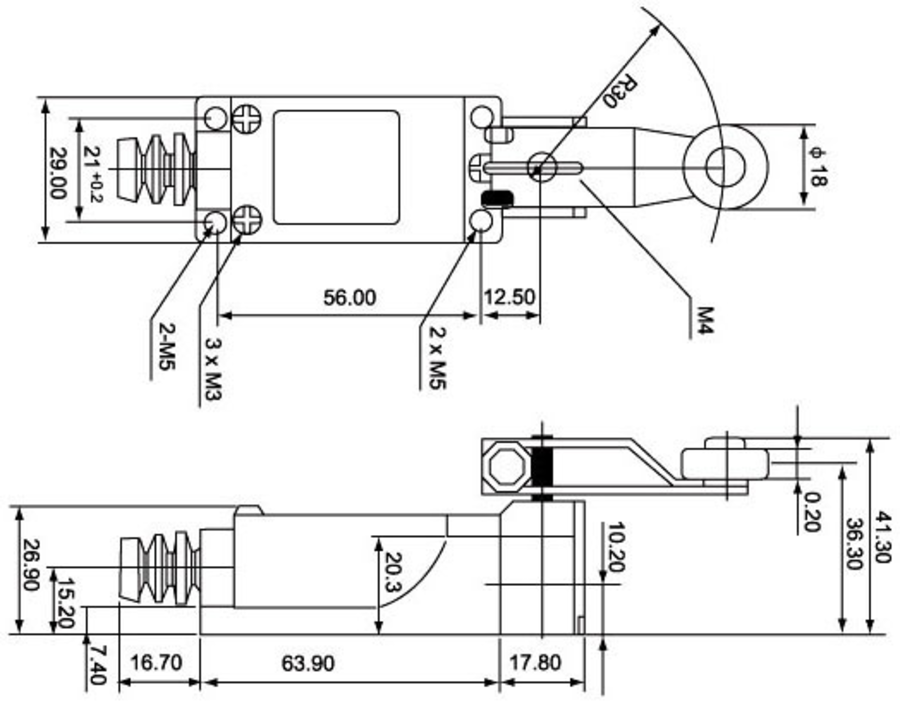

| Width sensor: | 29 mm |
| Height of sensor: | 26.9 mm |
| Length of sensor: | 81.7 mm |

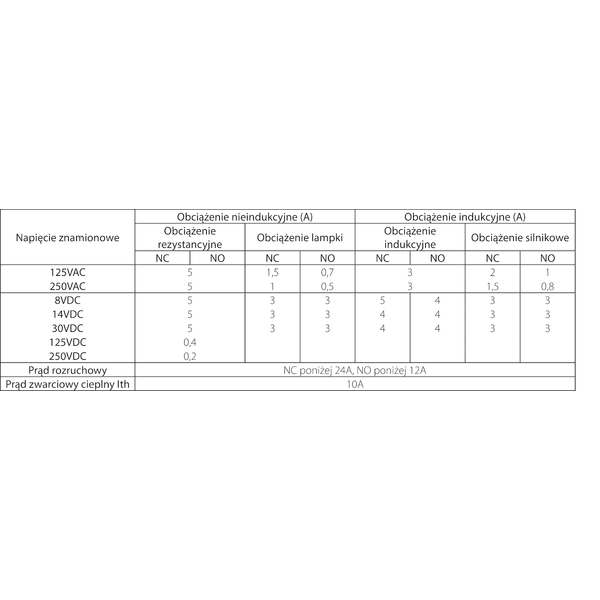

| Rated operation current Ie at AC-15, 24 V: | 5 A |
| Rated operation current Ie at AC-15, 125 V: | 5 A |
| Rated operation current Ie at AC-15, 230 V: | 5 A |
| Rated operation current Ie at DC-13, 24 V: | 5 A |
| Rated operation current Ie at DC-13, 125 V: | 0.4 A |
| Rated operation current Ie at DC-13, 230 V: | 0.2 A |
| Switching function: | Quick-break switch |
| Switching function latching: | no |
| Output electronic: | no |
| Forced opening: | no |
| Number of safety auxiliary contacts: | 0 |

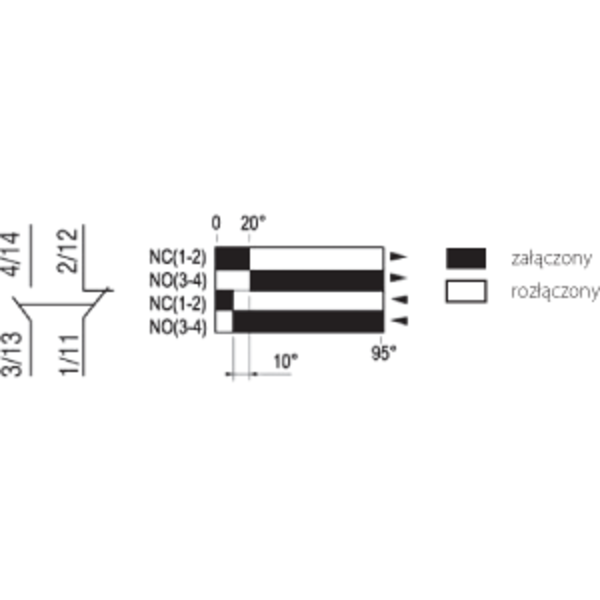

| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 2 |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cuboid |
| Housing material: | Metal |
| Coating housing: | Other |

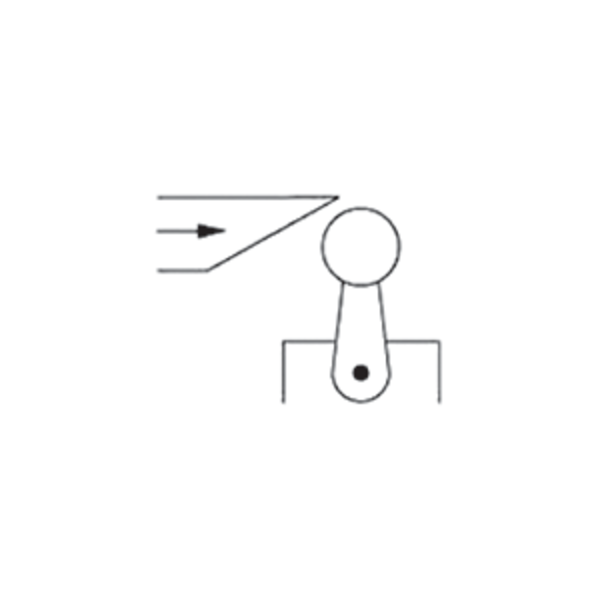

| Type of control element: | Roller lever |
| Alignment of the control element: | Other |
| Type of electric connection: | Cable entry PG |
| With status indication: | no |
| Suitable for safety functions: | yes |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Ambient temperature during operating: | -10 - 70 °C |
| Degree of protection (IP): | IP65 |
