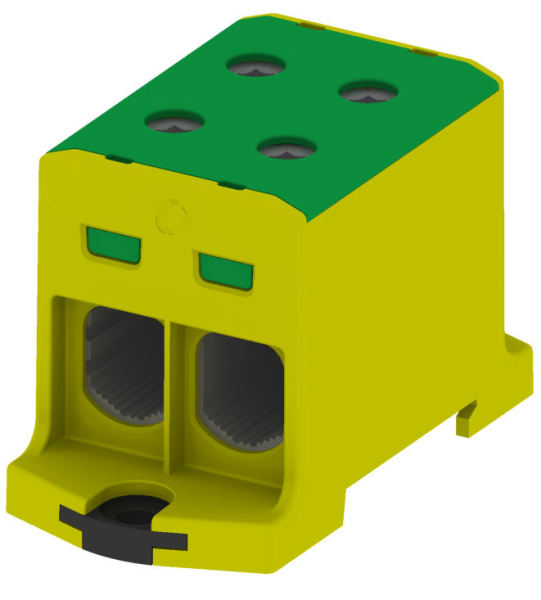

Złączka szynowa gwintowa rozgałęźna AL/CU MAA2150Y10 żółto-zielony

• buy at the outlet / on sale
• Buy online
• Buy / order

Information	Value
Supplier	SIMET S.A.
Symbol	89738009
GTIN(EAN)	5907813227592
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock

Promotions related to this product

•

  Zachowaj Spokój

  Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.

•

  Simet Combo 3

  Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3

Description:

MAA2150Y10 żółto-zielony_Złączka szynowa gwintowa rozgałęźna AL/CU / 25-150 mm2 / TS 35/ 1 tor, 4 otwory zaciskowe, OTL150-2

Additional features:

Information	Value
Net weight:	170 g
ETIM class:	Feed-through terminal block
Connectable conductor cross section fine-strand without cable end sleeve:	25 - 150 mm²
Connectable conductor cross section fine-strand with cable end sleeve:	0 - 0 mm²
Connectable conductor cross section solid-core:	25 - 150 mm²
Connectable conductor cross section multi-wired:	25 - 150 mm²
Rated current In:	290 A
Rated voltage:	690 V
Type of electrical connection 1:	Screw connection
Type of electrical connection 2:	Screw connection
Connection position:	Sideways
Number of levels:	1
Number of clamp positions per level:	4
Mounting method:	DIN rail (top hat rail) 35 mm
Material insulation body:	Thermoplastic
Width/grid dimension:	31 mm
Length:	84 mm
Explosion-tested version 'Ex e':	no
Closing plate required:	no
Colour:	Green/yellow
Internally connected stages:	yes
