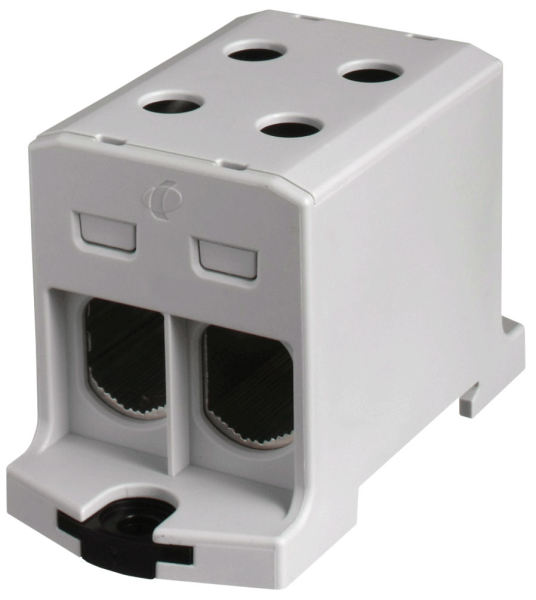

Złączka szynowa gwintowa rozgałęźna AL/CU MAA2095A10 szary

• buy at the outlet / on sale
• Buy online
• Buy / order

Information	Value
Supplier	SIMET S.A.
Symbol	89733002
GTIN(EAN)	5907813227394
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock

Promotions related to this product

•

  Zachowaj Spokój

  Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.

•

  Simet Combo 3

  Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3

Description:

MAA2095A10 szary_Złączka szynowa gwintowa rozgałęźna AL/CU / 6-95 mm2 / TS 35/ 1 tor, 4 otwory zaciskowe, OTL95-2

Additional features:

Information	Value
Net weight:	125 g
ETIM class:	Feed-through terminal block
Connectable conductor cross section fine-strand without cable end sleeve:	6 - 95 mm²
Connectable conductor cross section fine-strand with cable end sleeve:	0 - 0 mm²
Connectable conductor cross section solid-core:	6 - 95 mm²
Connectable conductor cross section multi-wired:	6 - 95 mm²
Rated current In:	220 A
Rated voltage:	1000 V
Type of electrical connection 1:	Screw connection
Type of electrical connection 2:	Screw connection
Connection position:	Sideways
Number of levels:	1
Number of clamp positions per level:	4
Mounting method:	DIN rail (top hat rail) 35 mm
Material insulation body:	Thermoplastic
Width/grid dimension:	42 mm
Length:	84 mm
Explosion-tested version 'Ex e':	no
Closing plate required:	no
Colour:	Grey
Internally connected stages:	yes

Additional information:

Information	Value
Updated:	2024-07-10 12:29:02
External links:	Głęboki link do str. produktu
