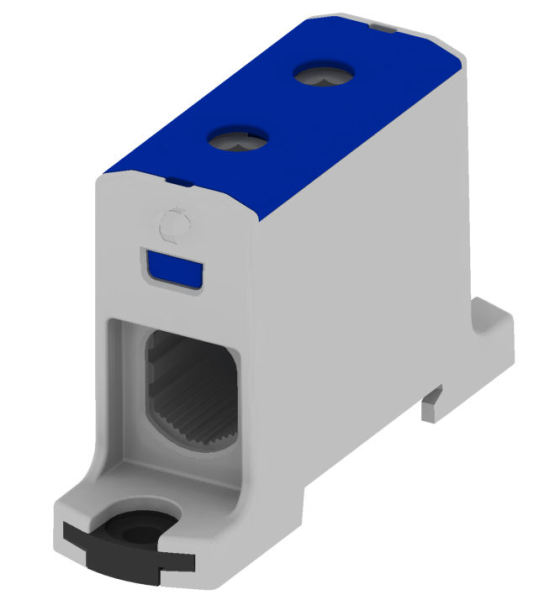

Złączka szynowa gwintowa AL/CU MAA1150B10 niebieski
| Information | Value |
|---|---|
| Supplier | SIMET S.A. |
| Symbol | 89712003 |
| GTIN(EAN) | 5907813227134 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 43,30 zł / szt. (35,20 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
MAA1150B10 niebieski_Złączka szynowa gwintowa AL/CU/ 25 - 150 mm2 / TS 35/ 1 tor, 2 otwory zaciskowe, OTL150
Additional features:
| Information | Value |
|---|---|
| Net weight: | 100 g |
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 10 - 150 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
| Connectable conductor cross section solid-core: | 25 - 150 mm² |
| Connectable conductor cross section multi-wired: | 25 - 150 mm² |
| Rated current In: | 290 A |
| Rated voltage: | 690 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Connection position: | Sideways |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Width/grid dimension: | 31 mm |
| Length: | 84 mm |
| Explosion-tested version 'Ex e': | no |
| Closing plate required: | no |
| Colour: | Blue |
| Internally connected stages: | yes |
