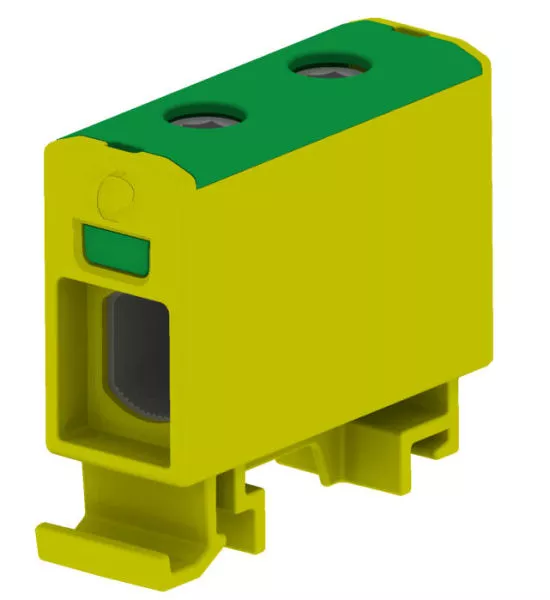

Złączka szynowa gwintowa AL/CU MAA1016Y10 żółto-zielony
| Information | Value |
|---|---|
| Supplier | SIMET S.A. |
| Symbol | 89703009 |
| GTIN(EAN) | 5907813226779 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 8,99 zł / szt. (7,31 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
MAA1016Y10 żółto-zielony_Złączka szynowa gwintowa AL/CU/ 1,5 - 16 mm2 / TS 35/ 1 tor, 2 otwory zaciskowe, OTL16
Additional features:
| Information | Value |
|---|---|
| Net weight: | 15 g |
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1,5 - 16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
| Connectable conductor cross section solid-core: | 1,5 - 16 mm² |
| Connectable conductor cross section multi-wired: | 1,5 - 16 mm² |
| Rated current In: | 82 A |
| Rated voltage: | 690 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Connection position: | Sideways |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Width/grid dimension: | 13.5 mm |
| Length: | 45 mm |
| Explosion-tested version 'Ex e': | no |
| Closing plate required: | no |
| Colour: | Green/yellow |
| Internally connected stages: | yes |
| Transparent: | |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
DORIAN DKL Sp. z o.o. - centrala Legionowo
Legionowo Michałów-Reginów, Warszawska 10B
Legionowo Michałów-Reginów, Warszawska 10B
Distance:
9 sztuk
9,98 zł/szt.
DORIAN DKL Sp. z o.o. - oddział Łomianki
Łomianki Kiełpin Poduchowny, Warszawska 380
Łomianki Kiełpin Poduchowny, Warszawska 380
Distance:
2 sztuki
8,99 zł/szt.
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Kwidzyn,
Toruńska 34
Distance:
Dostępność:
27 pc
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-10 12:29:02 |
| External links: |
