Listwa zaciskowa gwintowa LPA12-1.5 transparentny
| Information | Value |
|---|---|
| Supplier | SIMET S.A. |
| Symbol | 89091110 |
| GTIN(EAN) | 8595055702334 |
| Price unit | piece |
| Catalog price | 6,59 zł (5,36 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
-
Simet - zestaw do zadań specjalnych
Zestaw COMBO 3 w promocji
Description:

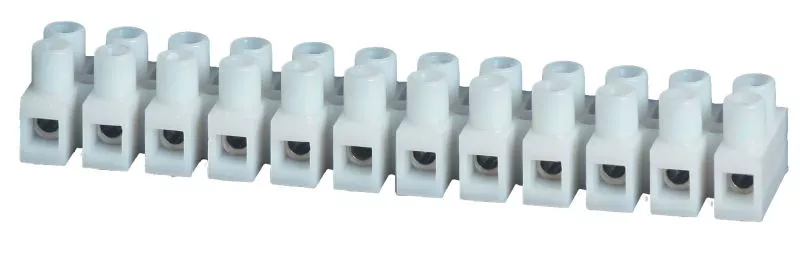

LPA12-1.5 transparentny_Listwa zaciskowa gwintowa termoplastyczna z podkładką, 1,5mm², 12 torów
Additional features:
| Information | Value |
|---|---|
| kolor: | transparentny |
| Net weight: | 28 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Drill hole distance centrically: | 8 mm |
| Explosion-tested version 'Ex e': | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1,5 - 1,5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
| Connectable conductor cross section solid-core: | 1,5 - 1,5 mm² |
| Connectable conductor cross section multi-wired: | 1,5 - 1,5 mm² |
| Rated current In: | 17.5 A |
| Rated voltage: | 450 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Connection position: | Sideways |
| Number of poles: | 12 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | Direct mounting |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -25 - 85 °C |
| Width/grid dimension: | 17 mm |
| Length: | 96.2 mm |
| Closing plate required: | no |
| Colour: | White |
| Transparent: | no |
| Inflammability class of insulation material according to with UL94: | V0 |
