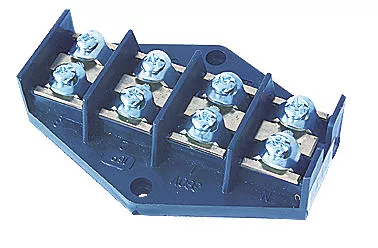

Płytka odgałęźna ZPT4-16.0 czarny
| Information | Value |
|---|---|
| Supplier | SIMET S.A. |
| Symbol | 83007007 |
| GTIN(EAN) | 5907813231254 |
| Price unit | piece |
| Catalog price | 13,04 zł (10,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
ZPT4-16.0 czarny_Płytka odgałęźna serii ZPT, 16,0mm², 4tory
Additional features:
| Information | Value |
|---|---|
| Net weight: | 133 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Drill hole distance centrically: | 63 mm |
| Explosion-tested version 'Ex e': | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 10 - 25 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
| Connectable conductor cross section solid-core: | 10 - 25 mm² |
| Connectable conductor cross section multi-wired: | 10 - 25 mm² |
| Rated current In: | 55 A |
| Rated voltage: | 400 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Connection position: | Sideways |
| Number of poles: | 4 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | Direct mounting |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -25 - 100 °C |
| Width/grid dimension: | 76 mm |
| Length: | 110 mm |
| Closing plate required: | no |
| Colour: | Black |
| Transparent: | no |
