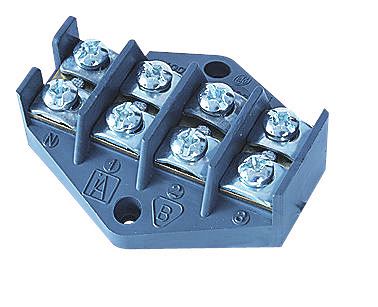

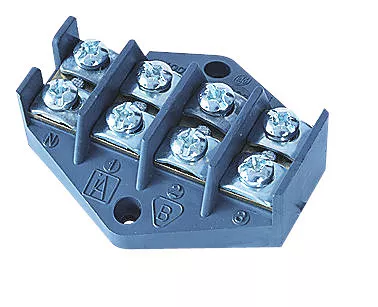

Płytka odgałęźna ZPT4-10.0 czarny
Information | Value |
---|---|
Supplier | SIMET S.A. |
Symbol | 83005007 |
GTIN(EAN) | 5907813231230 |
Price unit | piece |
Catalog price | 7,84 zł (6,37 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
ZPT4-10.0 czarny_Płytka odgałęźna serii ZPT, 10,0mm², 4 tory
Additional features:
Information | Value |
---|---|
Net weight: | 70 g |
ETIM class: | Single- and multi-pole terminal strip |
Drill hole distance centrically: | 44 mm |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 6 - 25 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
Connectable conductor cross section solid-core: | 6 - 25 mm² |
Connectable conductor cross section multi-wired: | 6 - 25 mm² |
Rated current In: | 40 A |
Rated voltage: | 400 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of poles: | 4 |
Number of clamp positions per pole: | 2 |
Mounting method: | Direct mounting |
Material insulation body: | Thermoplastic |
Operating temperature: | -25 - 100 °C |
Width/grid dimension: | 56 mm |
Length: | 67 mm |
Closing plate required: | no |
Colour: | Black |
Transparent: | no |
