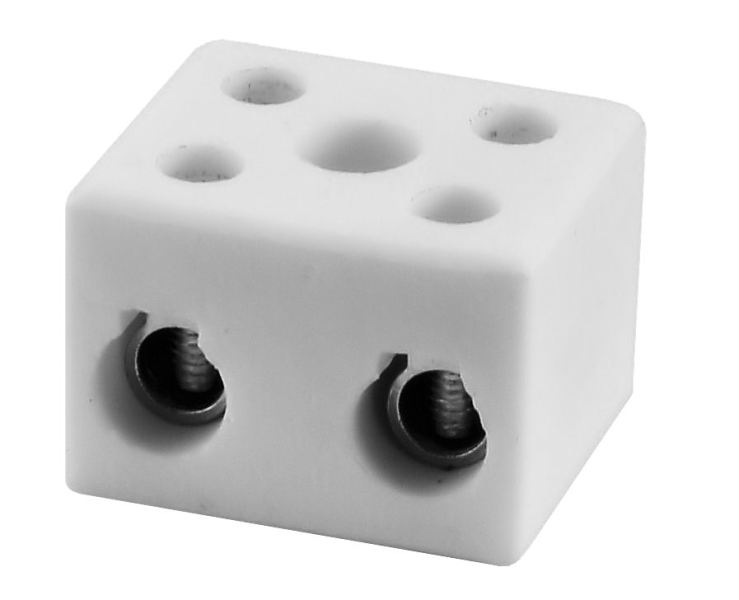

Złączka gwintowa porcelanowa CPO-30A-2P biały
Information | Value |
---|---|
Supplier | SIMET S.A. |
Symbol | 80732516 |
GTIN(EAN) | 5907813217531 |
Price unit | piece |
Catalog price | 8,83 zł (7,18 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
CPO-30A-2P biały_Złączka gwintowa porcelanowa, 16mm², 2 tory
Additional features:
Information | Value |
---|---|
kolor: | biały |
Net weight: | 41 g |
ETIM class: | Single- and multi-pole terminal strip |
Drill hole distance centrically: | 0 mm |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 0 - 16 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
Connectable conductor cross section solid-core: | 0 - 16 mm² |
Connectable conductor cross section multi-wired: | 0 - 16 mm² |
Rated current In: | 76 A |
Rated voltage: | 450 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of poles: | 2 |
Number of clamp positions per pole: | 2 |
Mounting method: | Direct mounting |
Material insulation body: | Ceramics |
Operating temperature: | -40 - 350 °C |
Width/grid dimension: | 27 mm |
Length: | 31 mm |
Closing plate required: | no |
Colour: | White |
Transparent: | no |
