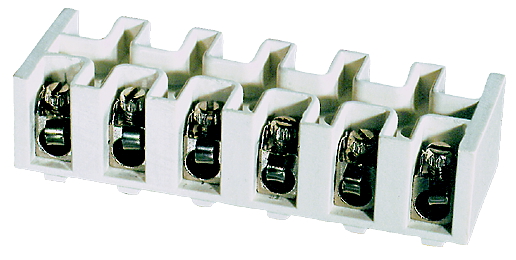

Listwa zaciskowa gwintowa termoutwardzalna LTE6-16.0 biały

Information Value
Supplier SIMET S.A.
Symbol 25616406
GTIN(EAN) 5907813200946
Price unit piece
Product withdrawn This product is not produced any more. It might still be available if some wholesaler has it in it's stock
Sale price from 15,09 zł / szt. (12,27 zł + 23 % VAT)
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.

Description:

Listwa zaciskowa gwintowa termoutwardzalna, 16mm², 6 torów, T120 C, pięć otworów montażowych, zaciski z podkładką

Additional features:

Information Value
Net weight: 92,7 g
ETIM class: Single- and multi-pole terminal strip
Drill hole distance centrically: 15 mm
Explosion-tested version 'Ex e': no
Connectable conductor cross section fine-strand without cable end sleeve: 0 - 16 mm²
Connectable conductor cross section fine-strand with cable end sleeve: 0 - 0 mm²
Connectable conductor cross section solid-core: 0 - 16 mm²
Connectable conductor cross section multi-wired: 0 - 16 mm²
Rated current In: 76 A
Rated voltage: 500 V
Type of electrical connection 1: Screw connection
Type of electrical connection 2: Screw connection
Connection position: Sideways
Number of poles: 6
Number of clamp positions per pole: 2
Mounting method: Direct mounting
Material insulation body: Duroplast
Operating temperature: -40 - 120 °C
Inflammability class of insulation material according to with UL94: V0
Width/grid dimension: 30 mm
Length: 90 mm
Closing plate required: no
Colour: White
Transparent: no
