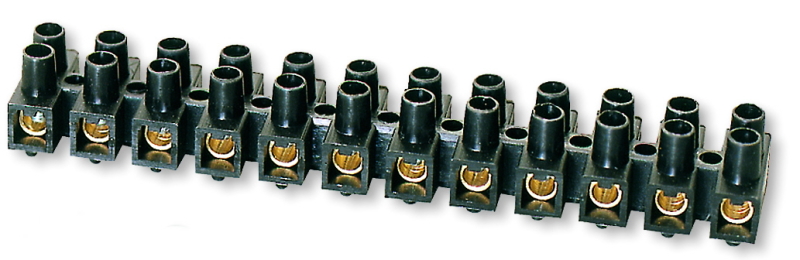

Listwa zaciskowa gwintowa termoplastyczna LTA12-2.5d czarny
Information | Value |
---|---|
Supplier | SIMET S.A. |
Symbol | 22210217 |
GTIN(EAN) | 5907813200281 |
Price unit | piece |
Catalog price | 8,00 zł (6,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
LTA12-2.5d czarny_Listwa zaciskowa gwintowa termoplastyczna, 2,5 mm², 12 torów, bezhalogenowy poliamid PA6, T85 C
Additional features:
Information | Value |
---|---|
kolor: | czarny |
Net weight: | 24 g |
ETIM class: | Single- and multi-pole terminal strip |
Drill hole distance centrically: | 8 mm |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 0 - 2,5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
Connectable conductor cross section solid-core: | 0 - 2,5 mm² |
Connectable conductor cross section multi-wired: | 0 - 2,5 mm² |
Rated current In: | 24 A |
Rated voltage: | 400 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of poles: | 12 |
Number of clamp positions per pole: | 2 |
Mounting method: | Direct mounting |
Material insulation body: | Thermoplastic |
Operating temperature: | -25 - 85 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 16 mm |
Length: | 94 mm |
Closing plate required: | no |
Colour: | Black |
Transparent: | no |
