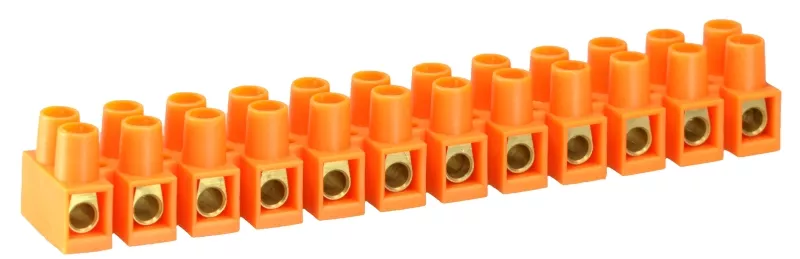

Listwa zaciskowa gwintowa termoplastyczna LTF12-16.0 pomarańczowy
Information | Value |
---|---|
Supplier | SIMET S.A. |
Symbol | 21612108 |
GTIN(EAN) | 5907813207815 |
Price unit | piece |
Catalog price | 17,54 zł (14,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
LTF12-16.0 pomarańczowy_Listwa zaciskowa gwintowa termoplastyczna, 16,0 mm², 12 torów, polietylen, T55 C
Additional features:
Information | Value |
---|---|
kolor: | pomarańczowy |
Net weight: | 90 g |
ETIM class: | Single- and multi-pole terminal strip |
Drill hole distance centrically: | 13 mm |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 6 - 10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
Connectable conductor cross section solid-core: | 6 - 12 mm² |
Connectable conductor cross section multi-wired: | 6 - 10 mm² |
Rated current In: | 76 A |
Rated voltage: | 400 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of poles: | 12 |
Number of clamp positions per pole: | 2 |
Mounting method: | Direct mounting |
Material insulation body: | Thermoplastic |
Operating temperature: | -40 - 55 °C |
Inflammability class of insulation material according to with UL94: | V2 |
Width/grid dimension: | 27 mm |
Length: | 153 mm |
Closing plate required: | no |
Colour: | Orange |
Transparent: | no |
