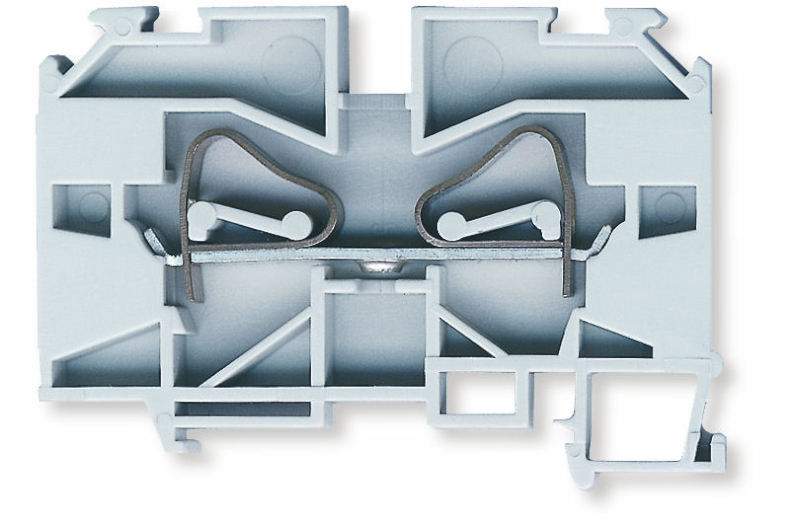

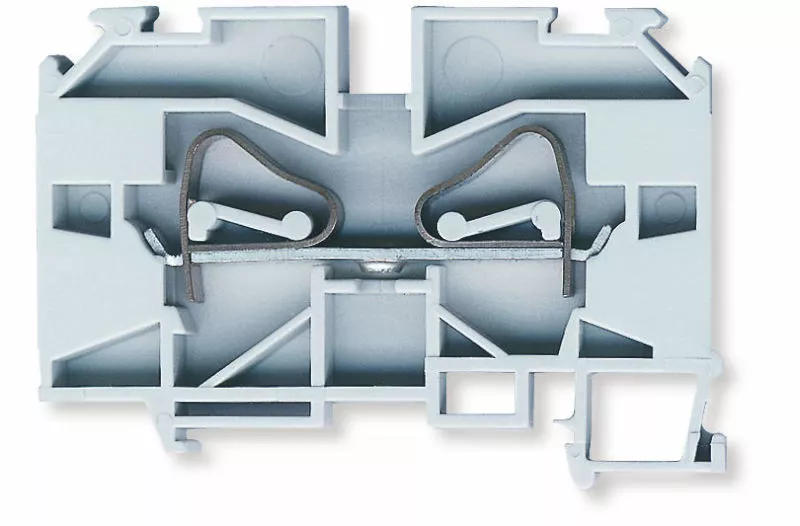

ZSA1- 4.0, Złączka szynowa samozaciskowa / 4 mm2 / TS 35 / 1 tor - (kolor szary)
| Information | Value |
|---|---|
| Supplier | SIMET S.A. |
| Symbol | 16308312 |
| GTIN(EAN) | 5907813208836 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 0,95 zł / szt. (0,77 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0,08 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
| Connectable conductor cross section solid-core: | 0,08 - 4 mm² |
| Connectable conductor cross section multi-wired: | 0,08 - 4 mm² |
| Rated current In: | 32 A |
| Rated voltage: | 500 V |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connection position: | Sideways |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -25 - 125 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Explosion-tested version 'Ex e': | no |
| Closing plate required: | no |
| Colour: | Grey |
| Internally connected stages: | no |
