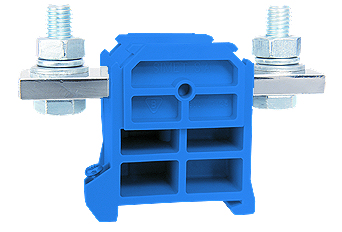

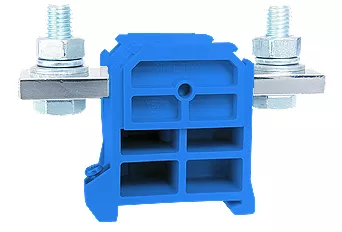

Złączka szynowa gwintowa ZSG1-95.0n niebieski
Information | Value |
---|---|
Supplier | SIMET S.A. |
Symbol | 12902313 |
GTIN(EAN) | 5907813209789 |
Price unit | piece |
Catalog price | 65,29 zł (53,08 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
ZSG1-95.0n niebieski_Złączka szynowa gwintowa, seria STANDARD 95,0 mm², TS 35 + śruba , 1 tor
Additional features:
Information | Value |
---|---|
kolor: | niebieski |
Net weight: | 222 g |
ETIM class: | Feed-through terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 10 - 95 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
Connectable conductor cross section solid-core: | 10 - 95 mm² |
Connectable conductor cross section multi-wired: | 10 - 95 mm² |
Rated current In: | 232 A |
Rated voltage: | 800 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of levels: | 1 |
Number of clamp positions per level: | 2 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -25 - 125 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 41 mm |
Length: | 88 mm |
Explosion-tested version 'Ex e': | no |
Closing plate required: | no |
Colour: | Blue |
Internally connected stages: | no |
