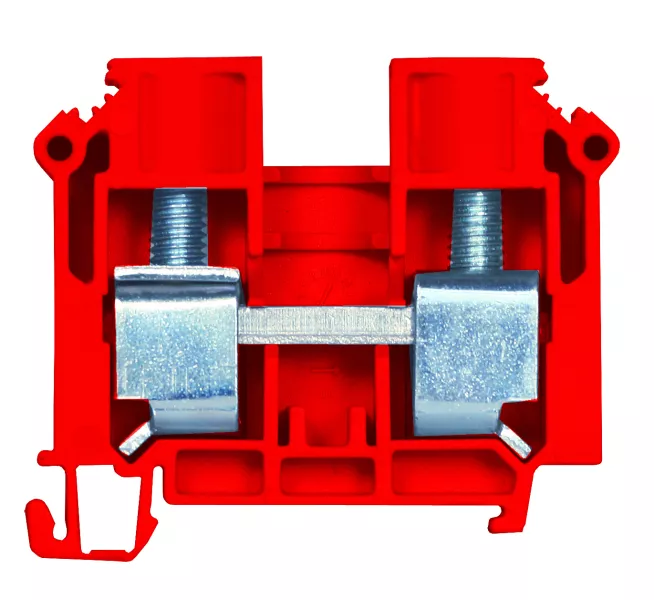

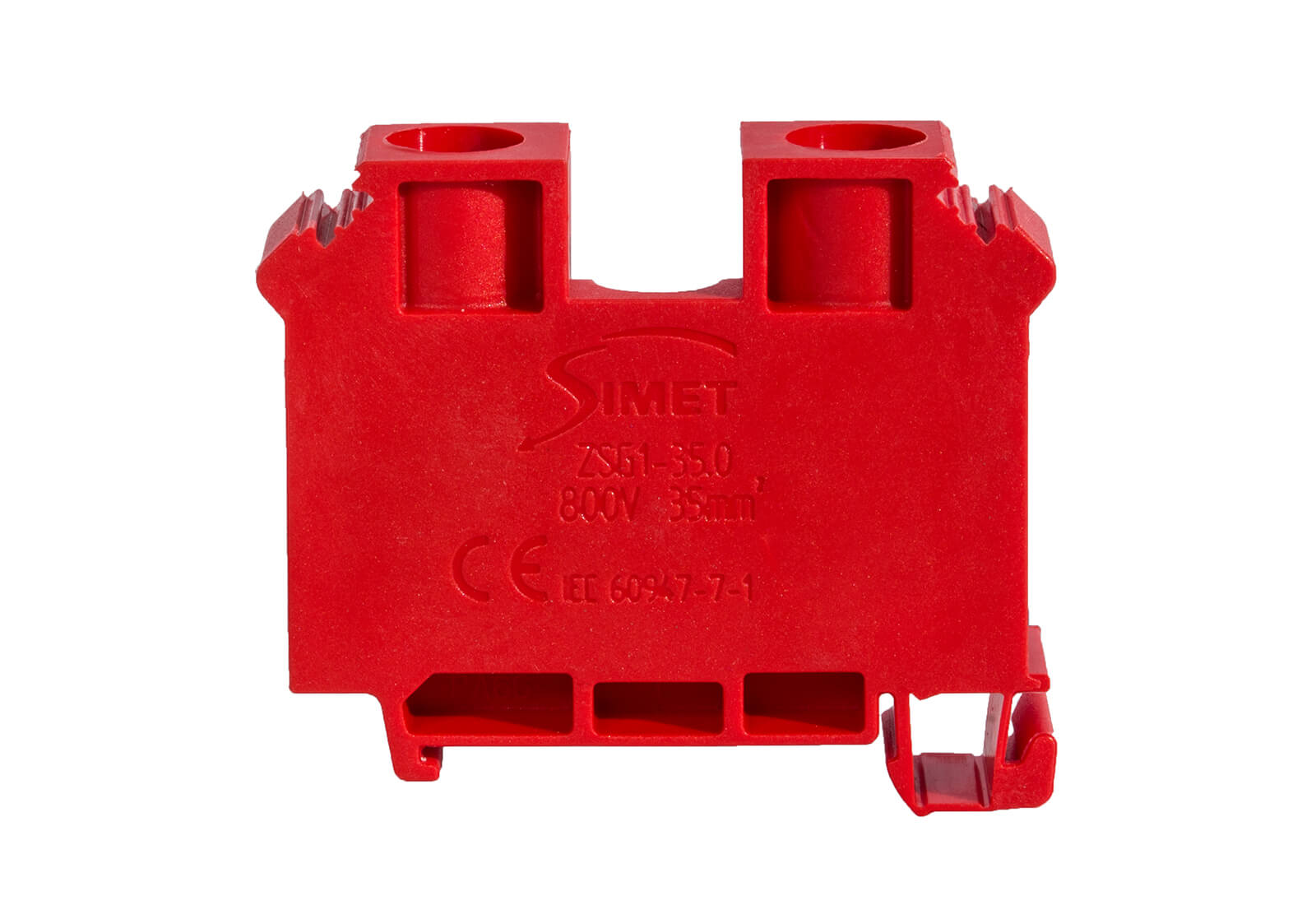

Złączka szynowa gwintowa ZSG1-35.0c czerwony
Information | Value |
---|---|
Supplier | SIMET S.A. |
Symbol | 12701311 |
GTIN(EAN) | 5907813209628 |
Price unit | piece |
Catalog price | 24,87 zł (20,22 zł + 23% VAT) |
Sale price | from 5,81 zł / szt. (4,72 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
ZSG1-35.0c czerwony_Złączka szynowa gwintowa, seria STANDARD 35,0 mm², TS 32,35, 1 tor
Additional features:
Information | Value |
---|---|
kolor: | czerwony |
Net weight: | 50 g |
ETIM class: | Feed-through terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 2,5 - 35 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 2,5 - 35 mm² |
Connectable conductor cross section solid-core: | 2,5 - 35 mm² |
Connectable conductor cross section multi-wired: | 2,5 - 35 mm² |
Rated current In: | 800 A |
Rated voltage: | 125 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of levels: | 1 |
Number of clamp positions per level: | 2 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -25 - 125 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Explosion-tested version 'Ex e': | no |
Closing plate required: | yes |
Colour: | Red |
Internally connected stages: | no |
Width/grid dimension: | 14 mm |
Length: | 58 mm |
