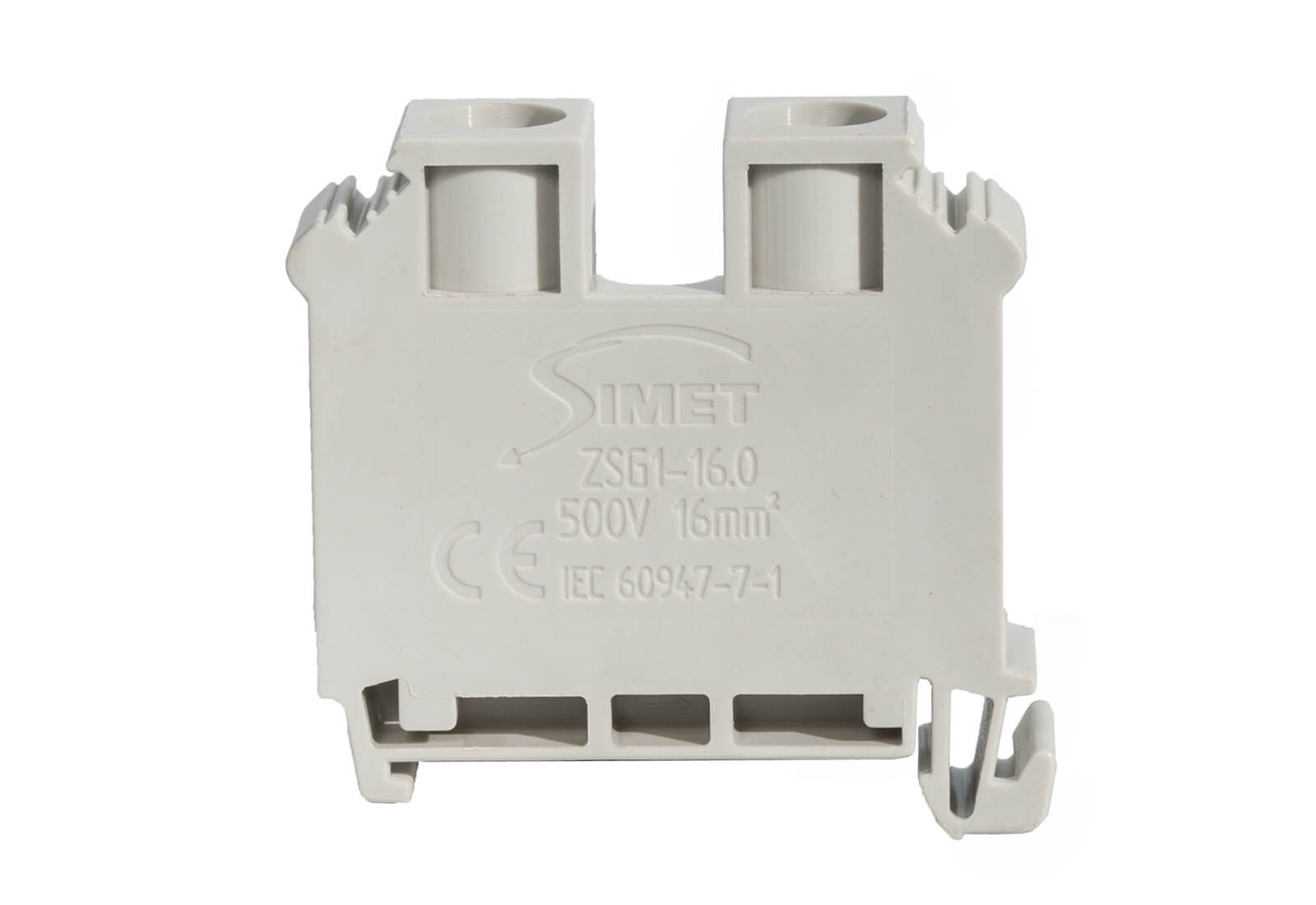

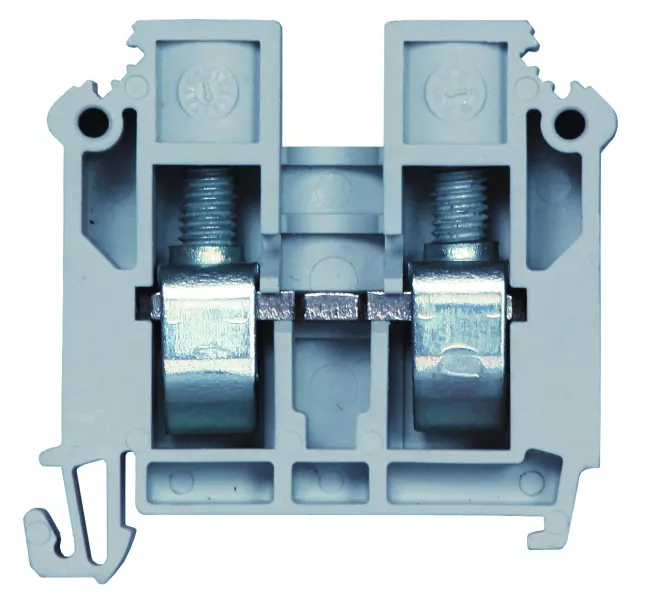

Złączka szynowa gwintowa ZSG1-16.0s szary
Information | Value |
---|---|
Supplier | SIMET S.A. |
Symbol | 12601312 |
GTIN(EAN) | 5907813209574 |
Price unit | piece |
Catalog price | 14,85 zł (12,07 zł + 23% VAT) |
Sale price | from 6,22 zł (5,06 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
ZSG1-16.0s szary_Złączka szynowa gwintowa, seria STANDARD 16,0 mm², TS 32,35, 1 tor
Additional features:
Information | Value |
---|---|
Net weight: | 27 g |
ETIM class: | Feed-through terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 4 - 16 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
Connectable conductor cross section solid-core: | 2,5 - 16 mm² |
Connectable conductor cross section multi-wired: | 0 - 0 mm² |
Rated current In: | 500 A |
Rated voltage: | 76 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of levels: | 1 |
Number of clamp positions per level: | 2 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -25 - 125 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 13 mm |
Length: | 41 mm |
Explosion-tested version 'Ex e': | no |
Closing plate required: | yes |
Colour: | Grey |
Internally connected stages: | no |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
MEGA O/Dębica
Dębica, Rzeszowska 120
Dębica, Rzeszowska 120
Distance:
32 sztuki
6,22 zł/szt.
Buy online
Buy / order
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-08-27 14:34:05 |
External links: |
