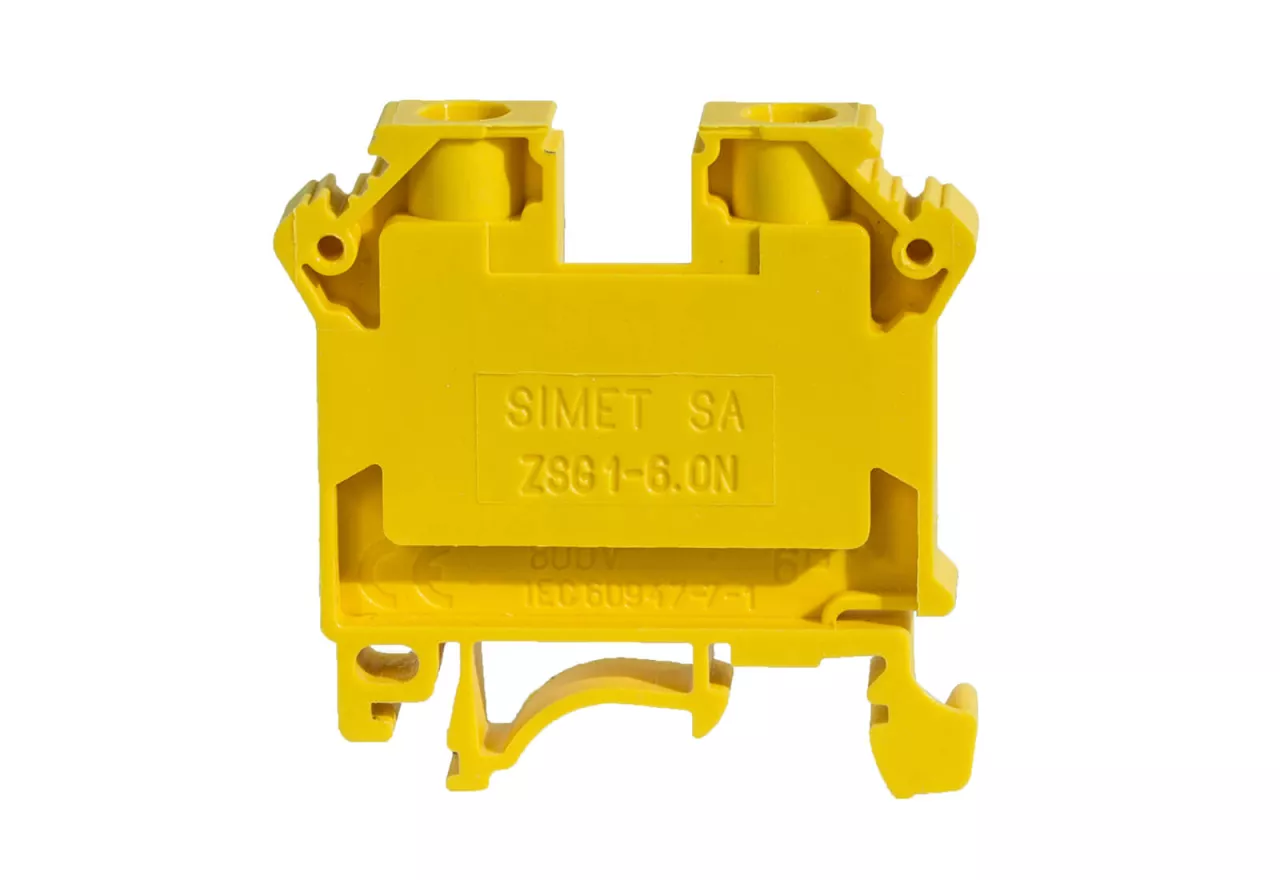

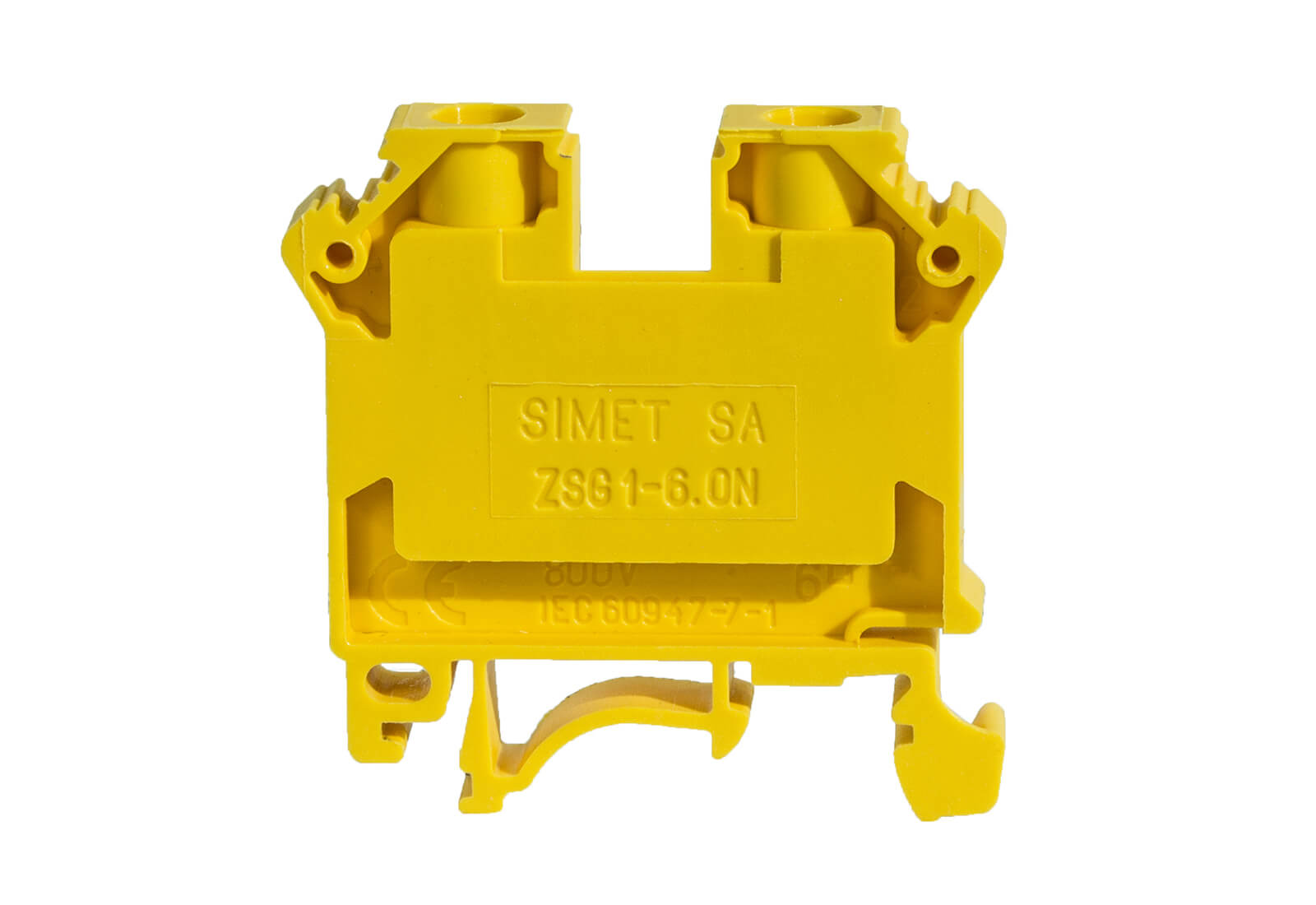

Złączka szynowa gwintowa ZSG1-6.0Nz żółty
Information | Value |
---|---|
Supplier | SIMET S.A. |
Symbol | 11421314 |
GTIN(EAN) | 5907813212581 |
Price unit | piece |
Catalog price | 5,97 zł (4,85 zł + 23% VAT) |
Sale price | from 2,58 zł / szt. (2,10 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
ZSG1-6.0Nz żółty _Złączka szynowa gwintowa, seria NOWA, 6,0 mm², TS 32,35, 1 tor
Additional features:
Information | Value |
---|---|
kolor: | żółty |
Net weight: | 13 g |
ETIM class: | Feed-through terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 0,5 - 6 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
Connectable conductor cross section solid-core: | 0,5 - 10 mm² |
Connectable conductor cross section multi-wired: | 0 - 0 mm² |
Rated current In: | 41 A |
Rated voltage: | 800 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of levels: | 1 |
Number of clamp positions per level: | 2 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -25 - 125 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 8 mm |
Length: | 48 mm |
Explosion-tested version 'Ex e': | no |
Closing plate required: | yes |
Colour: | Yellow |
Internally connected stages: | no |
