BVP125 LED120-4S/740 PSU OFA52 ALU C1KC3 Naświetlacz
| Information | Value |
|---|---|
| Supplier | Signify Poland Sp. z o.o. (Philips Lighting) |
| Symbol | 912300024001 |
| GTIN(EAN) | 8718699455873 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 738,00 zł / szt. (600,00 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Oprawy CoreLine Tempo medium to rodzinanaświetlaczy o bardzo wysokiej skuteczności świetlnej opracowana w celu bezpośredniego zastąpienia opraw konwencjonalnych bez konieczności zmiany istniejącej instalacji elektrycznej i słupów.Określony zestawwariantów ułatwia dobranie najlepszego zamiennika. Łatwe w montażu CoreLine Tempo mediumzapewniają strumień świetlny przydatny w różnych obszarach zastosowań oraz bogaty wybór wysokowydajnych asymetrycznych i symetrycznych układów optycznych. Zestaw obejmuje uniwersalnyuchwyt montażowy w kształcie litery U oraz kabelzakończony 3-biegunową złączką o stopniu ochrony IP68.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Downlight/spot/floodlight |
| Suitable for surface mounting: | yes |
| Suitable for low voltage cable system: | no |
| Filament test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire efficacy: | 126 lm/W |
| Photobiological safety according to EN 62471: | RG1 |
| Suitable for workplace according to EN 12464-1: | yes |
| Covering of the luminaire with thermally insulating material possible: | no |
| IFTTT support available: | no |
| Colour consistency (McAdam ellipse): | SDCM3 |
| Unified Glare Ratio (UGR): | 0 |
| Compatible with Apple HomeKit: | no |
| Adjustability: | Swivelling |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Lamp type: | LED not exchangeable |
| With light source: | yes |
| Suitable for number of light sources: | 40 |
| Lamp holder: | None |
| Housing material: | Aluminium |
| Surface protection: | Powder coating |
| Suitable for built-in mounting: | no |
| Housing colour: | Grey |
| Material cover: | Glass transparent |
| Surface brushed: | yes |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Type of control gear: | LED operating device current-controlled |
| With control gear: | yes |
| Exchangeable control gear: | yes |
| Dimming 0-10 V: | no |
| Suitable for wall mounting: | yes |
| Dimming 1-10 V: | no |
| Dimming DALI-2: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer's proprietary system: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase cut-off: | no |
| Suitable for suspended mounting: | no |
| Dimming phase cut-on: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push-button: | no |
| No dim function: | yes |
| Reflector: | None |
| Light distributor: | Diffuser lens/optic/panel |
| Suitable for ceiling mounting: | no |
| Light sharing: | Asymmetric |
| Beam angle: | Wide beam 41-80° |
| Light outlet: | Direct |
| Total harmonic distortion: | 6.52 |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): | 96 % |
| Suitable for traverse mounting: | yes |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): | 10 % |
| Constant light output (CLO): | no |
| Degree of protection (IP): | IP66 |
| Impact strength: | IK08 |
| Protection class: | I |
| Rated ambient temperature according to IEC 62722-2-1: | -40 - 35 °C |
| Suitable for pedestal/floor mounting: | yes |
| Max. system power: | 98 W |
| Colour of light: | White |
| Colour temperature: | 4000 - 4000 K |
| Colour rendering index CRI: | 70-79 |
| Luminous flux: | 12000 - 12000 lm |
| Rated luminous flux according to IEC 62722-2-1: | 12000 lm |
| Luminous intensity: | 861 cd |
| Power factor: | 0.99 |
| Flickering value Pst LM: | 0.06 |
| Colour of light adjustable: | No |
| Suitable for light-track mounting: | no |
| Luminous flux adjustable: | Continuously variable |
| Beam angle adjustable: | No |
| Stroboscope effect value SVM: | 0.09 |

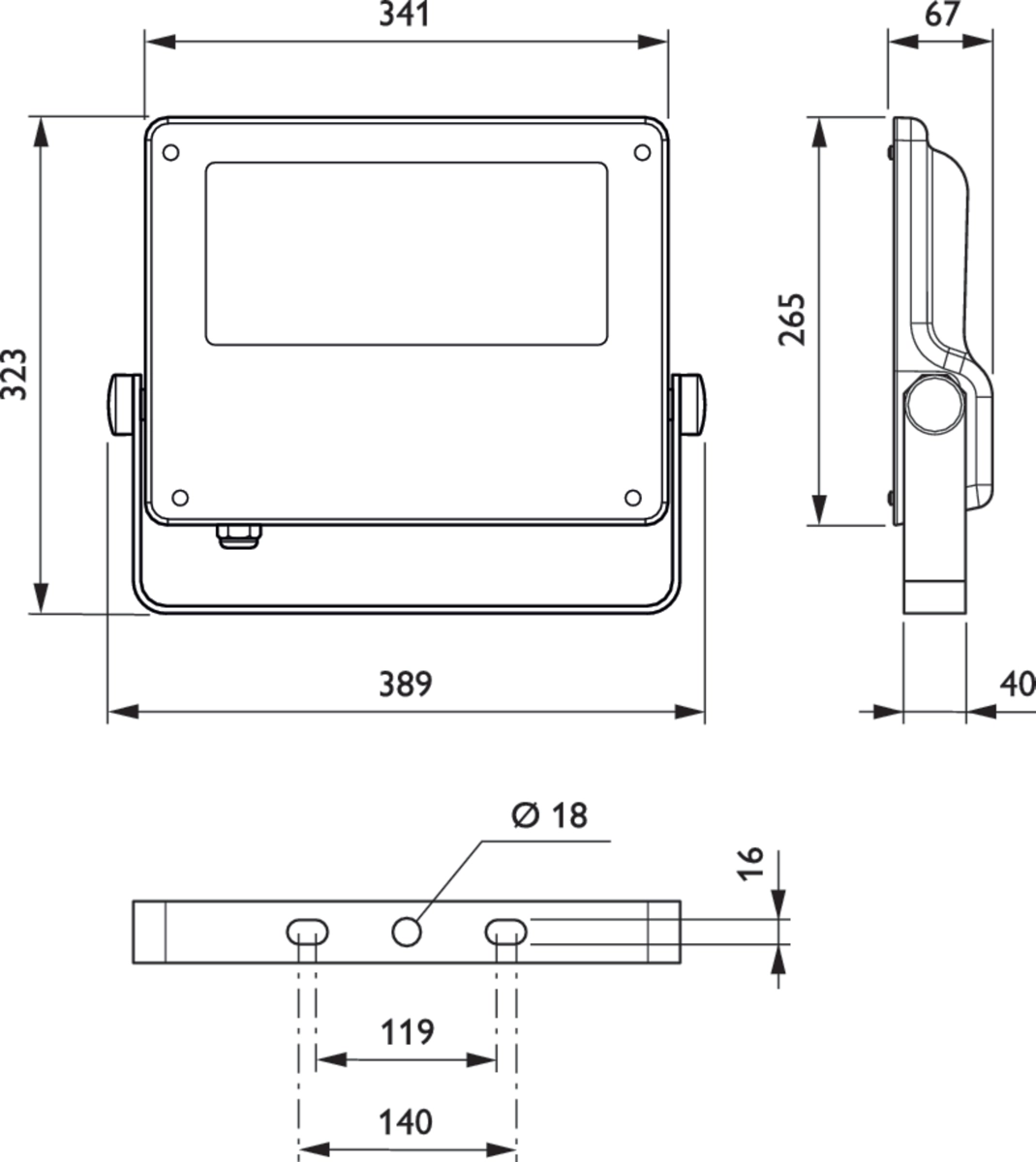

| Width: | 265 mm |
| Height/depth: | 67.4 mm |
| Length: | 340.5 mm |
| Suitable for clamp-mounting: | no |
| Type of wiring: | Ending |
| Number of poles: | 3 |
| Conductor cross section: | 1.5 mm² |
| Connectable conductor cross section: | 7 - 14 mm² |
| Connection type: | Insulation displacement connector |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 8 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 13 |
| Emergency power supply integrated: | no |
