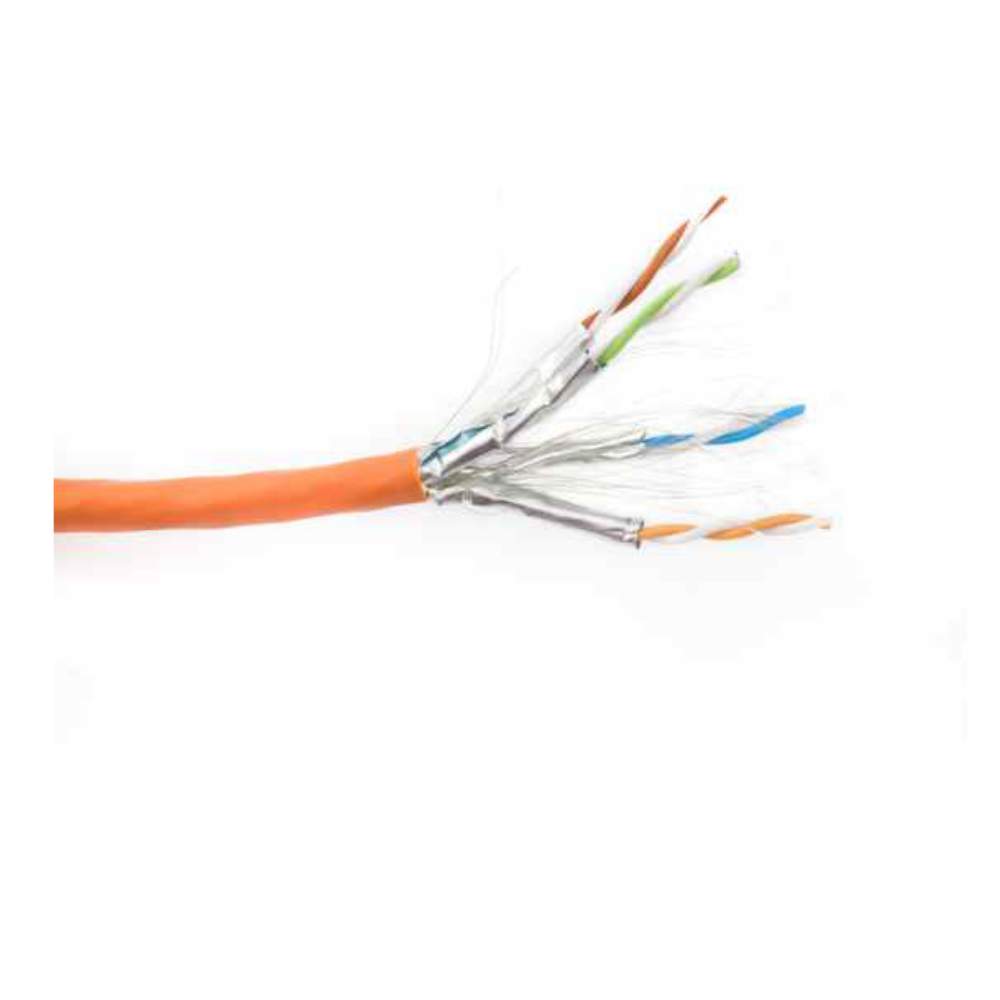

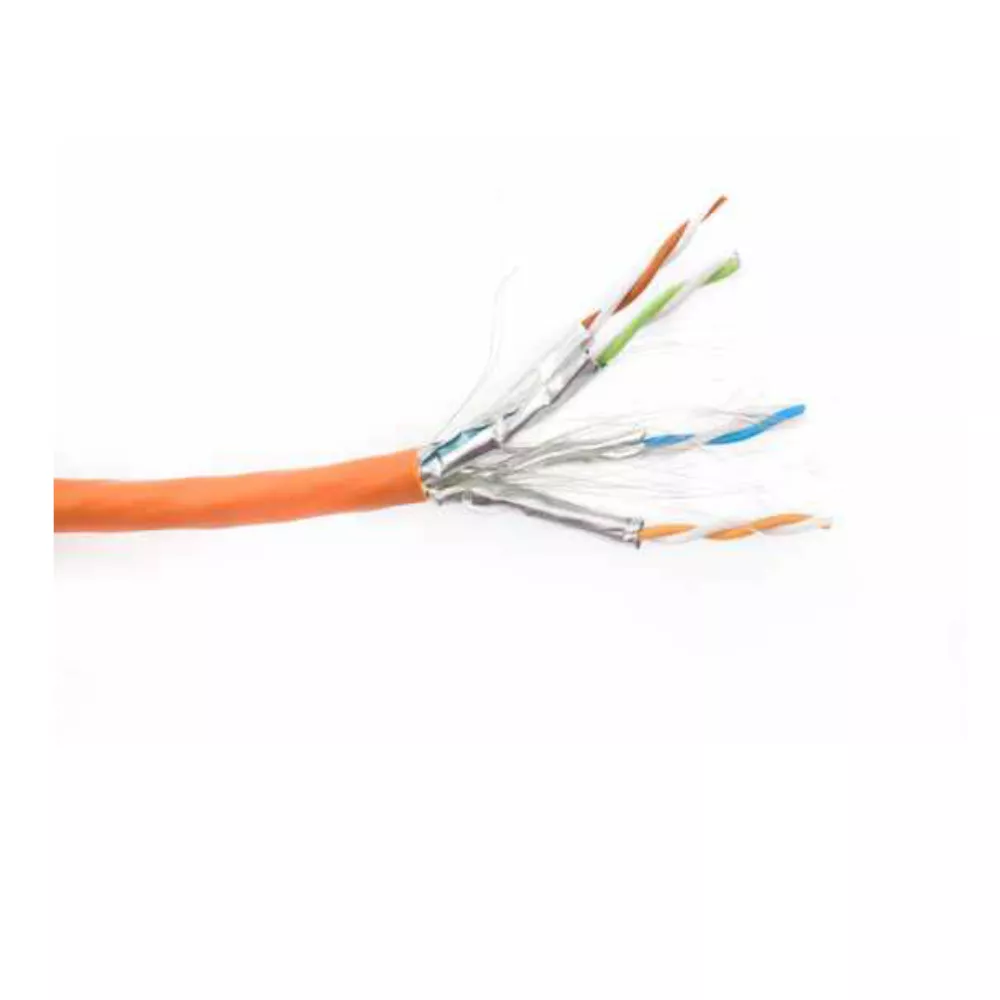

Kabel SecurityNET S/FTP kat. 7 CU LSZH, 1000m
| Information | Value |
|---|---|
| Supplier | C&C Partners Sp. z o.o. (securityNET) |
| Symbol | SEC7SFTPLSZH-DCA |
| GTIN(EAN) | 5904169103884 |
| Price unit | kilometer |
| Catalog price | 3 874,50 zł (3 150,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

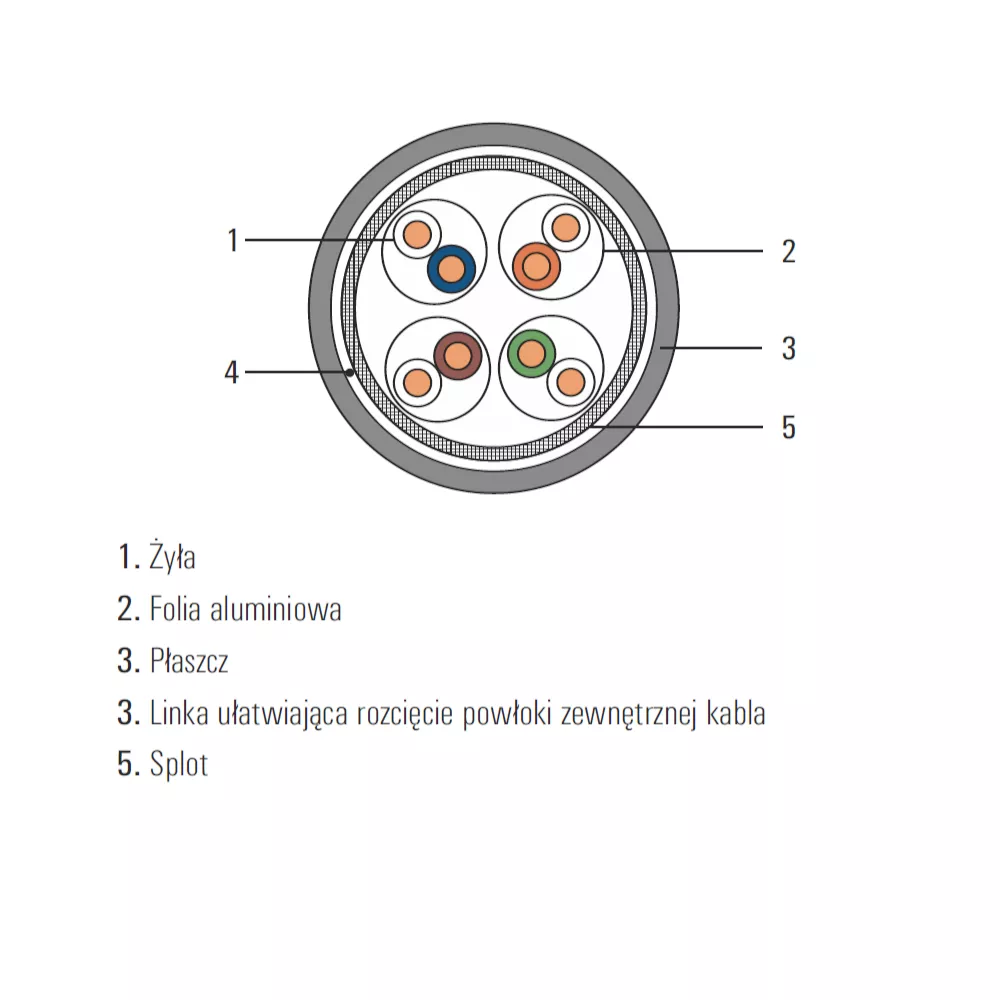

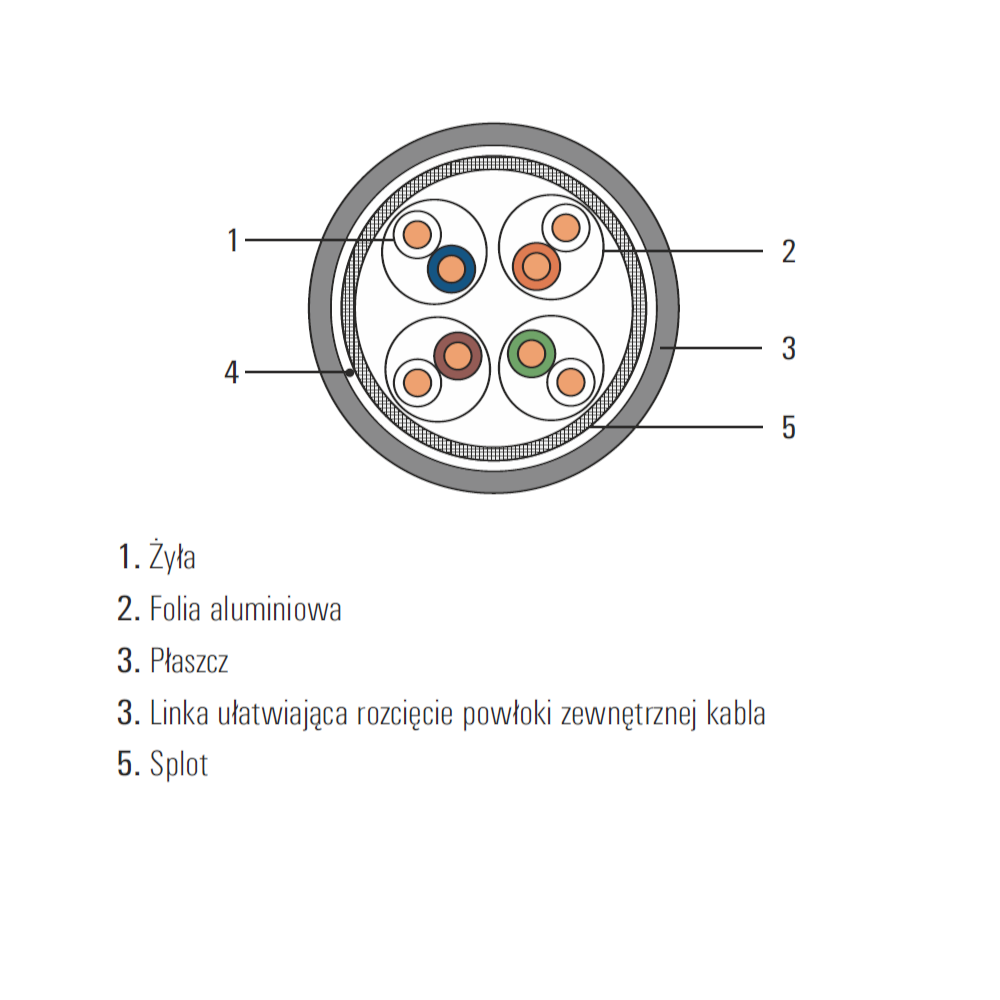

Instalacyjny kabel skrętkowy SecurityNET przeznaczony jest do wykonywania połączeń pomiędzy punktami dystrybucyjnymi sygnałów multimedialnych, a gniazdami przyłączeniowymi użytkowników. Kabel skrętkowy S/FTP podwójnie ekranowany nadaje się do instalacji w sieciach komputerowych, telefonicznych, systemach CCTV itp., które narażone są na zakłócenia elektromagnetyczne. Zastosowanie ekranu minimalizuje ryzyko zakłóceń, które mogą występować np. przy ułożeniu kabla we wspólnym korytku z kablem prądowym. Posiada powłokę zewnętrzną LSZH w klasie DCA. Kabel spełnia wymagania norm okablowania strukturalnego: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 27,2 kg |
| ETIM class: | Data and communication cable |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| AWG size: | 23 |
| Conductor category: | Class 1 = solid |
| Number of cores: | 8 |
| Stranding element: | Pairs |
| Material core insulation: | Other |
| Specification core insulation: | Polyethylene (PE) |
| Core identification according to HD 308 S2: | yes |
| Core identification: | Colour |
| Screen over stranding element: | Foil + braiding |
| Stranding: | Layers |
| Screen over stranding: | Foil + braiding |
| Longitudinal water blocking cable: | no |
| Radial water blocking cable: | yes |
| Suitable for underground installation: | no |
| Approved type of underground installation: | Other |
| Protective sheath: | Other |
| Material outer sheath: | Other |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Orange |
| Armouring/reinforcement: | None |
| Material armouring: | Other |
| Cable geometry: | Round |
| Reaction-to-fire according to EN 13501-6: Class: | Dca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | s1a |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d2 |
| Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
| Halogen free according to EN IEC 60754-2: | yes |
| Low smoke according to EN IEC 61034-2: | yes |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 7.6 mm |
| Min. permitted bending radius, moving application with forced guidance: | 76 mm |
| Min. permitted bending radius, moving application/free movement: | 76 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 64 mm |
| Permitted cable outer temperature during assembling/handling: | -5 - 70 °C |
| Permitted cable outer temperature after assembling without vibration: | -20 - 70 °C |
| Category: | 7 |
| NVP value: | 79 % |
| UV resistant: | no |
| Certified for shipboard application: | no |
| Suitable as telephone cable: | yes |
| Suitable as computer data cable: | yes |
| Suitable as signalling cable: | yes |
| Weight: | 64 kg/km |
