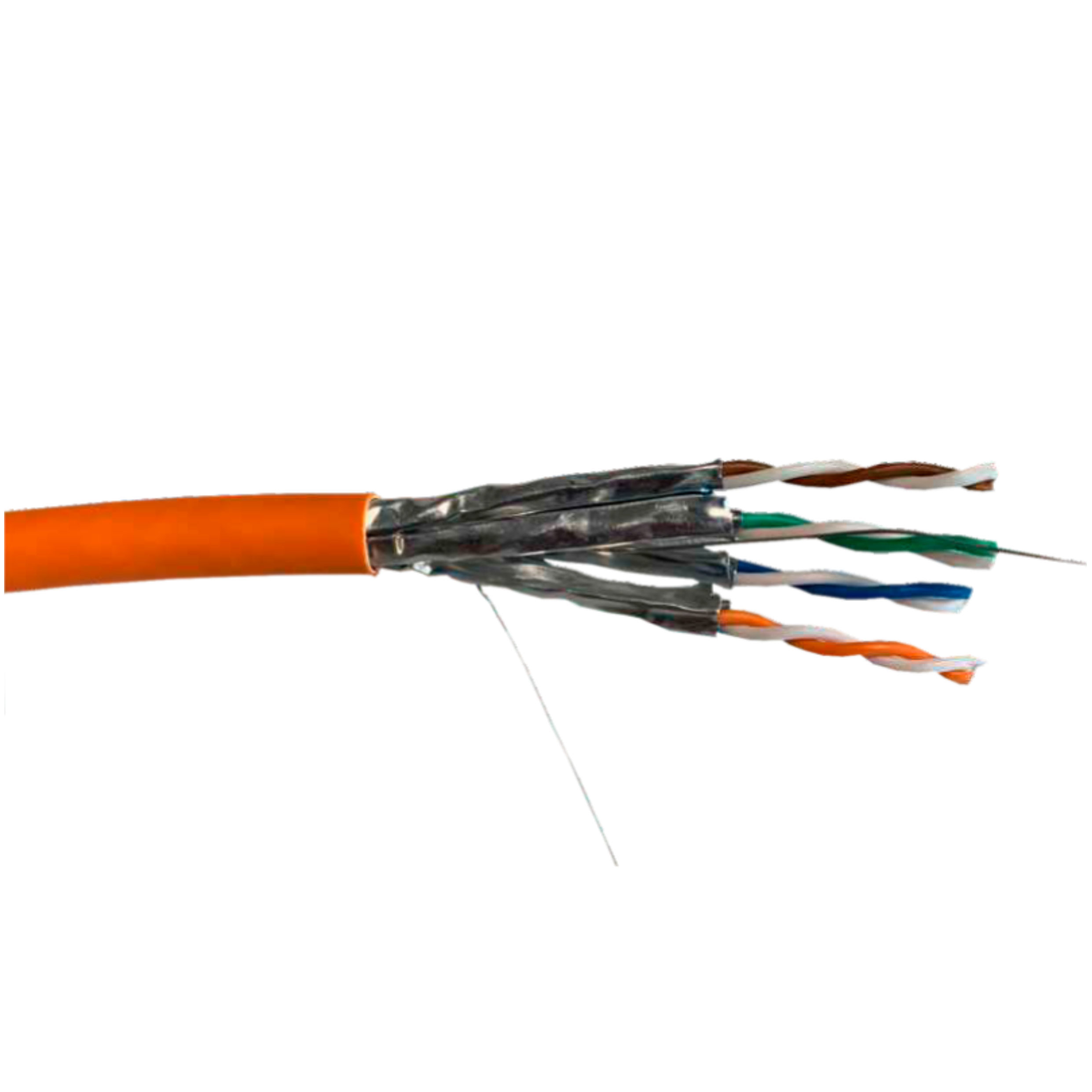

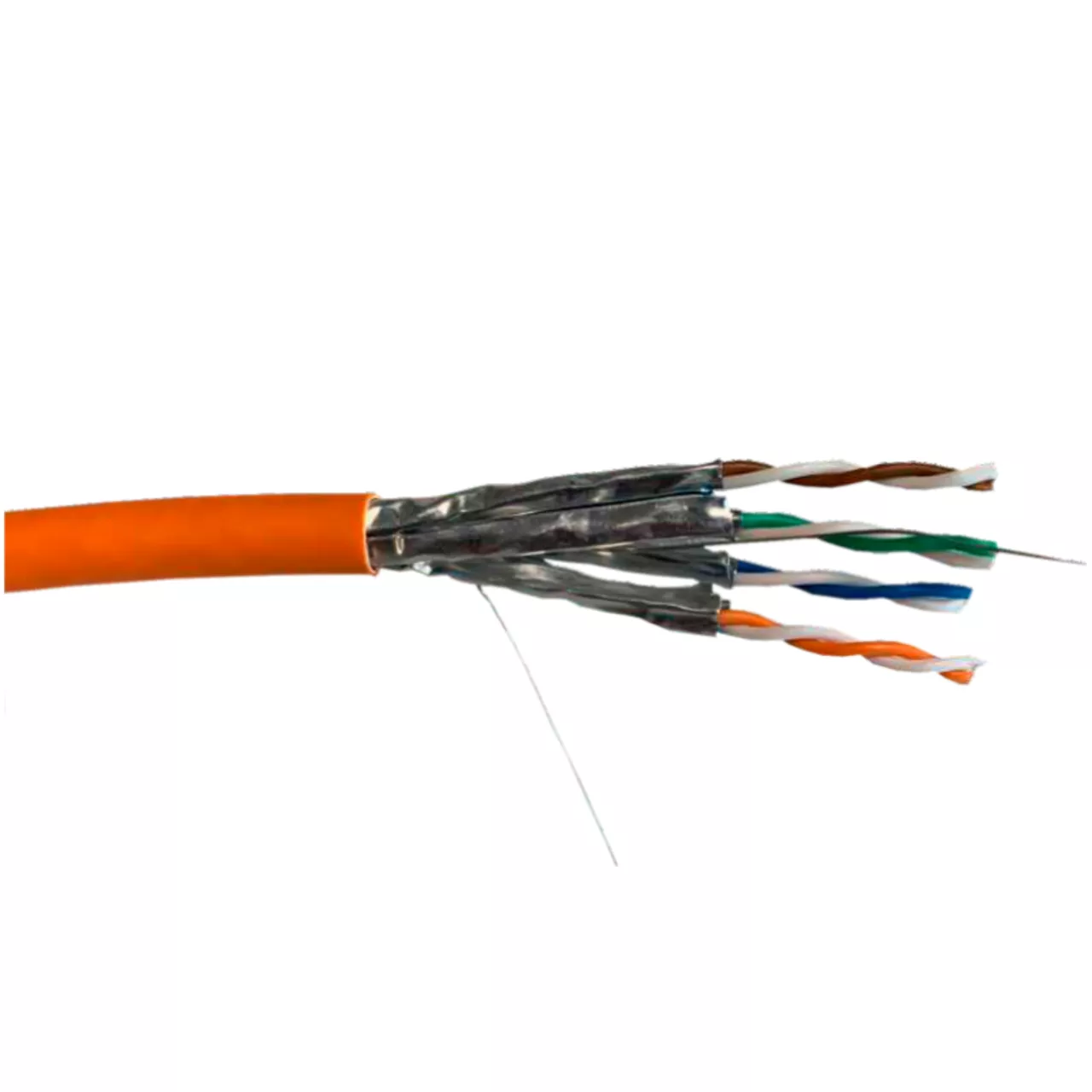

Kabel SecurityNET U/FTP kat.6A CU LSZH Dca 500m
Information
Value
Supplier
C&C Partners Sp. z o.o.
(securityNET)
Symbol
SEC6AUFTPLSZH-DCA
GTIN(EAN)
5904169104508
Price unit
kilometer
Catalog price
3 382,50 zł (2 750,00 zł + 23% VAT)
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Instalacyjny kabel skrętkowy SecurityNET przeznaczony jest do wykonywania połączeń pomiędzy punktami dystrybucyjnymi sygnałów multimedialnych, a gniazdami przyłączeniowymi użytkowników. Kabel skrętkowy U/FTP (ekranowany) nadaje się do instalacji w sieciach komputerowych, telefonicznych, systemach CCTV itp., które narażone są na zakłócenia elektromagnetyczne. Posiada powłokę zewnętrzną LSZH w klasie DCA. Kabel spełnia wymagania norm okablowania strukturalnego: ISO/IEC11801, EN 50173, TIA-568-C.2
Information
Value
Net weight:
26,2 kg
ETIM class:
Data and communication cable
Conductor material:
Copper
Conductor surface:
Bare
AWG size:
23
Conductor category:
Class 1 = solid
Number of cores:
8
Stranding element:
Pairs
Material core insulation:
Other
Specification core insulation:
Polyethylene (PE)
Core identification according to HD 308 S2:
yes
Core identification:
Colour
Screen over stranding element:
Foil
Stranding:
Layers
Screen over stranding:
Foil
Longitudinal water blocking cable:
no
Radial water blocking cable:
yes
Suitable for underground installation:
no
Approved type of underground installation:
Other
Protective sheath:
Other
Material outer sheath:
Other
Specification material outer sheath:
Other
Colour outer sheath:
Orange
Armouring/reinforcement:
None
Material armouring:
Other
Cable geometry:
Round
Reaction-to-fire according to EN 13501-6: Class:
Dca
Reaction-to-fire according to EN 13501-6: Smoke production:
s1
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
d1
Reaction-to-fire according to EN 13501-6: Acidity:
a1
Halogen free according to EN IEC 60754-2:
yes
Low smoke according to EN IEC 61034-2:
yes
Oil resistant according to EN IEC 60811-404:
no
Outer diameter approx.:
7.4 mm
Min. permitted bending radius, moving application with forced guidance:
74 mm
Min. permitted bending radius, moving application/free movement:
74 mm
Min. permitted bending radius, stationary application/permanent installation:
60 mm
Permitted cable outer temperature during assembling/handling:
-5 - 60 °C
Permitted cable outer temperature after assembling without vibration:
-5 - 60 °C
Category:
6A (IEC)
NVP value:
74 %
UV resistant:
no
Certified for shipboard application:
no
Suitable as telephone cable:
yes
Suitable as computer data cable:
yes
Suitable as signalling cable:
yes
Weight:
62 kg/km
