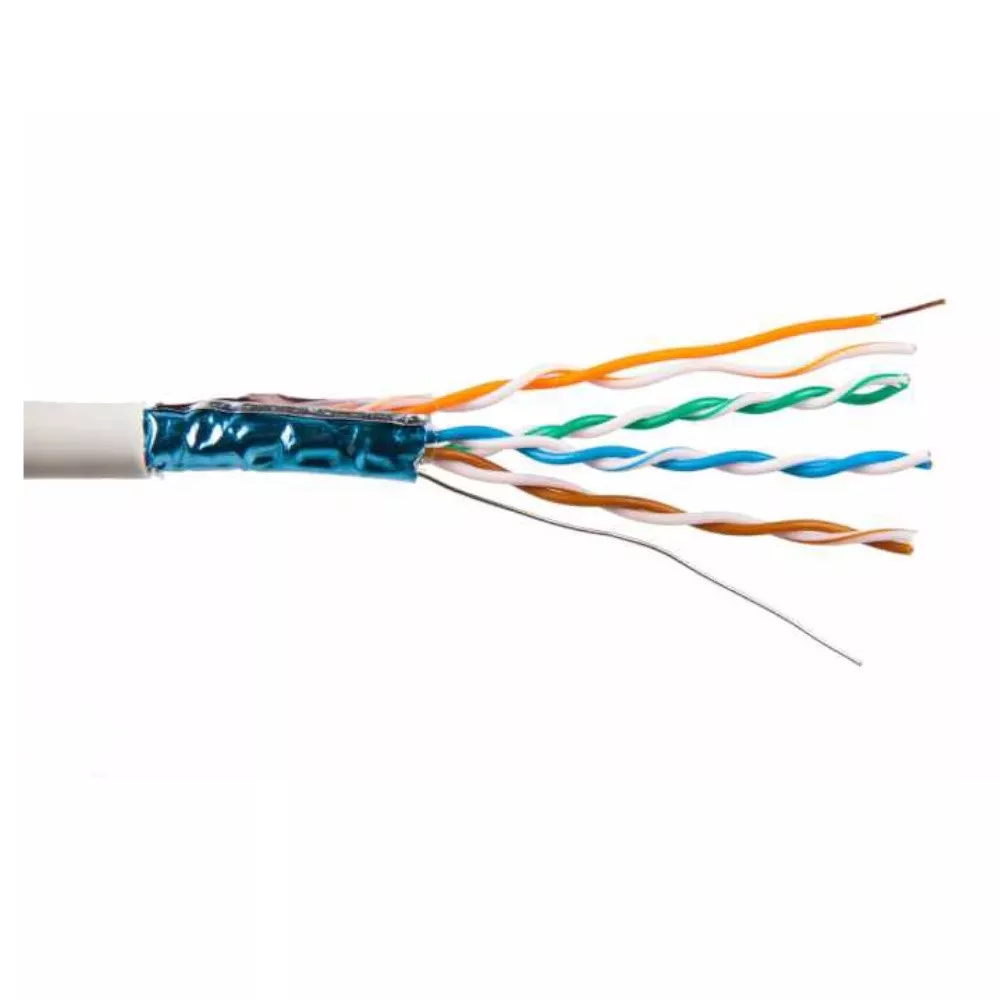

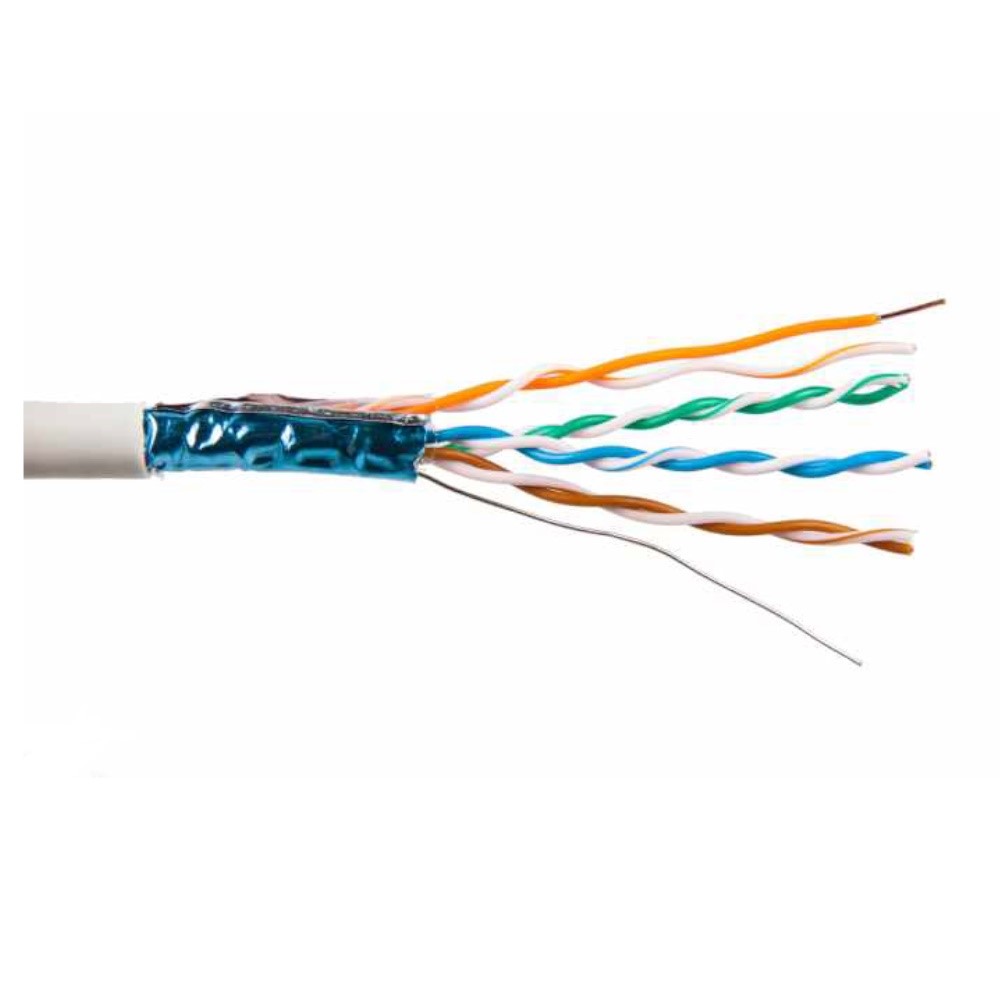

Kabel SecurityNET F/UTP 200MHz kat. 5e LSZH, Dca 305m SEC5EFTPLSZH-DCA
| Information | Value |
|---|---|
| Supplier | C&C Partners Sp. z o.o. (securityNET) |
| Symbol | SEC5EFTPLSZH-DCA |
| GTIN(EAN) | 5904169103839 |
| Price unit | kilometer |
| Catalog price | 2 270,58 zł (1 846,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Instalacyjny kabel skrętkowy SecurityNET przeznaczony jest do wykonywania połączeń pomiędzy punktami dystrybucyjnymi sygnałów multimedialnych, a gniazdami przyłączeniowymi użytkowników. Kabel skrętkowy F/UTP (ekranowany) nadaje się do instalacji w sieciach komputerowych, telefonicznych, systemach CCTV itp., które narażone są na zakłócenia elektromagnetyczne. Zastosowanie ekranu minimalizuje ryzyko zakłóceń, które mogą występować np. przy ułożeniu kabla we wspólnym korytku z kablem prądowym. Kabel spełnia wymagania norm okablowania strukturalnego: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 11,5 kg |
| Country of origin | Chiny |
| ETIM class: | Data and communication cable |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Diameter conductor: | 0,5 mm |
| Nominal cross section conductor: | 0,196 mm² |
| AWG size: | 24 |
| Conductor category: | Class 1 = solid |
| Number of cores: | 8 |
| Number of stranding elements: | 1 |
| Stranding element: | Pairs |
| Material core insulation: | Other |
| Specification core insulation: | Polyethylene (PE) |
| Core identification according to HD 308 S2: | yes |
| Core identification: | Colour |
| Screen over stranding element: | None |
| Stranding: | None |
| Screen over stranding: | Foil |
| Longitudinal water blocking cable: | no |
| Approved type of underground installation: | Other |
| Protective sheath: | Other |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Grey |
| Armouring/reinforcement: | None |
| Cable geometry: | Round |
| Reaction-to-fire according to EN 13501-6: Class: | Dca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | s2 |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d2 |
| Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
| Outer diameter approx.: | 6,3 mm |
| Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
| Permitted cable outer temperature after assembling without vibration: | -20 - 60 °C |
| Category: | 5E |
| UV resistant: | no |
| Certified for shipboard application: | no |
| Weight: | 37,7 kg/km |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
C&C Partners Sp. z o.o.
17 Stycznia 119, 121, 64-100 Leszno, Polska
tel: +48 65 525 50 55 mail: info@securitynet.eu
www: securitynet.eu
|
| Bezpieczeństwo towaru | Dostawca zapewnia o bezpieczeństwie oferowanego produktu |
| Updated: | 2025-04-15 13:03:07 |
| Files to download: |
