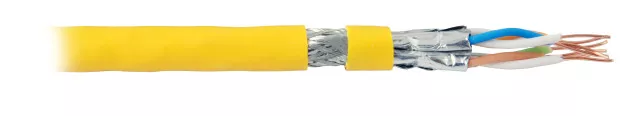

Kabel UC FUTURE C22 Cat.8.2 S/FTP 4P 2GHz ,LSHF-FR 100m
| Information | Value |
|---|---|
| Supplier | C&C Partners Sp. z o.o. (securityNET) |
| Symbol | 99827.100 |
| GTIN(EAN) | 4049759264581 |
| Price unit | pack |
| Catalog price | 1 425,88 zł (1 159,25 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Instalacyjny kabel skrętkowy przeznaczony jest do wykonywania połączeń pomiędzy punktami dystrybucyjnymi sygnałów multimedialnych, a gniazdami przyłączeniowymi użytkowników. Kabel skrętkowy S/FTP podwójnie ekranowany nadaje się do instalacji w sieciach komputerowych, telefonicznych, systemach CCTV itp., które narażone są na zakłócenia elektromagnetyczne. Zastosowanie ekranu minimalizuje ryzyko zakłóceń, które mogą występować np. przy ułożeniu kabla we wspólnym korytku z kablem prądowym. Posiada powłokę zewnętrzną LSHF-FR. Kabel spełnia wymagania norm okablowania strukturalnego: EN 60332-3-24, EN 60754-1/2, EN 61034-2, EN 50173-1;ISO/IEC 11801, EN 50575, IEC 61156-5;EN 50288-9-1
Additional features:
| Information | Value |
|---|---|
| Net weight: | 8,7 kg |
| ETIM class: | Data and communication cable |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Diameter conductor: | 0.64 mm |
| Nominal cross section conductor: | 0.32 mm² |
| AWG size: | 22 |
| Conductor category: | Class 1 = solid |
| Number of cores: | 8 |
| Number of stranding elements: | 0 |
| Stranding element: | Pairs |
| Material core insulation: | Other |
| Specification core insulation: | Other |
| Core identification: | Colour |
| Screen over stranding element: | Braiding |
| Stranding: | Other |
| Screen over stranding: | Foil + braiding |
| Longitudinal water blocking cable: | no |
| Radial water blocking cable: | no |
| Suitable for underground installation: | no |
| Material outer sheath: | Other |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Yellow |
| Cable geometry: | Round |
| Reaction-to-fire according to EN 13501-6: Class: | Dca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | s1 |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d1 |
| Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
| Halogen free according to EN IEC 60754-2: | yes |
| Low smoke according to EN IEC 61034-2: | yes |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 8.5 mm |
| Min. permitted bending radius, moving application with forced guidance: | 68 mm |
| Min. permitted bending radius, moving application/free movement: | 68 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 32 mm |
| Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
| Permitted cable outer temperature after assembling without vibration: | -20 - 60 °C |
| Category: | Other |
| NVP value: | 73 % |
| UV resistant: | no |
| Weight: | 80 kg/km |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-12-19 08:15:45 |
| Files to download: |
