Kabel securityNET U/UTP 200MHz kat.5e LSZH B2ca
| Information | Value |
|---|---|
| Supplier | C&C Partners Sp. z o.o. (securityNET) |
| Symbol | SEC5EUTPLSZH-B2CA |
| GTIN(EAN) | 5904169104454 |
| Price unit | kilometer |
| Catalog price | 2 327,16 zł (1 892,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

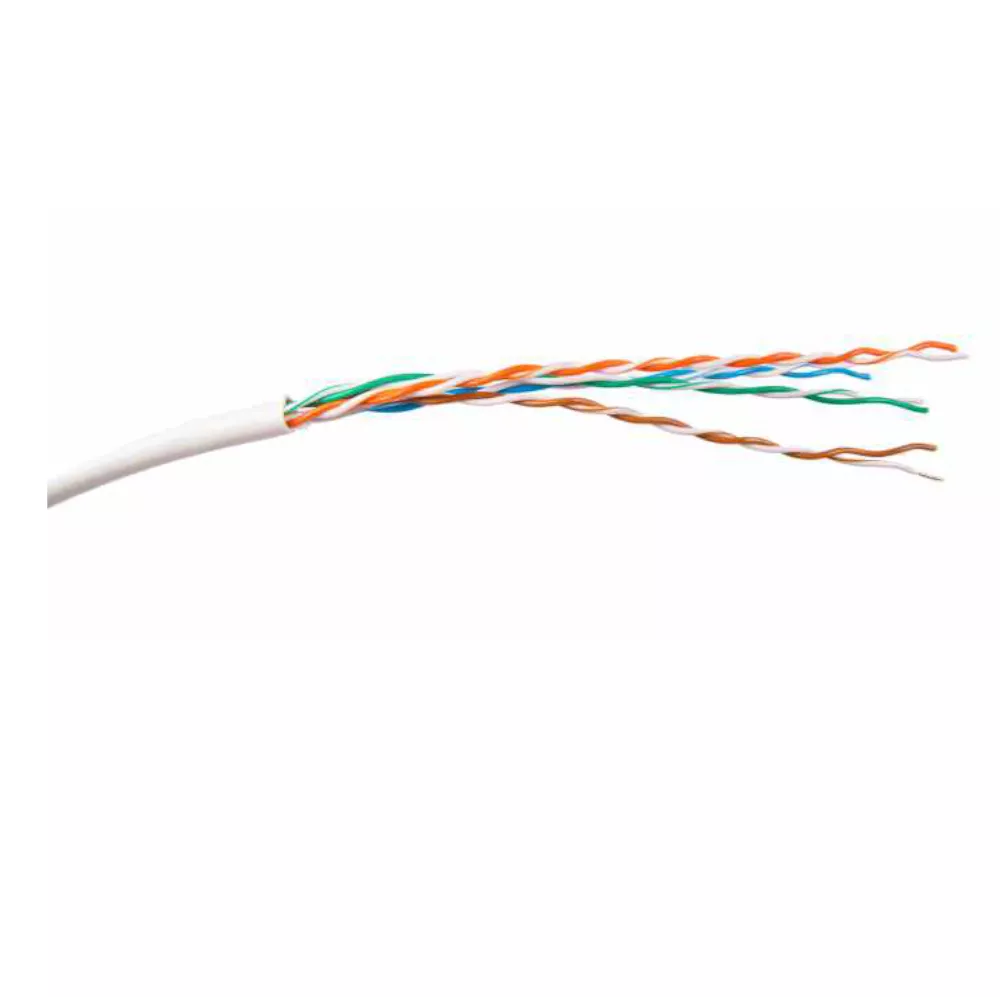

Instalacyjny kabel skrętkowy SecurityNET przeznaczony jest do wykonywania połączeń pomiędzy punktami dystrybucyjnymi sygnałów multimedialnych, a gniazdami przyłączeniowymi użytkowników. Kabel skrętkowy U/UTP (nieekranowany) nadaje się do instalacji w sieciach komputerowych, telefonicznych, systemach CCTV itp., które nie są narażone na zakłócenia elektromagnetyczne. Posiada powłokę zewnętrzną LSZH w klasie B2CA. Kabel spełnia wymagania norm okablowania strukturalnego: ISO/IEC11801, TIA-568-C.2, EN 50173
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9 kg |
| ETIM class: | Data and communication cable |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| AWG size: | 24 |
| Conductor category: | Class 1 = solid |
| Number of cores: | 8 |
| Number of stranding elements: | 1 |
| Stranding element: | Pairs |
| Material core insulation: | Other |
| Specification core insulation: | Polyethylene (PE) |
| Core identification according to HD 308 S2: | yes |
| Core identification: | Colour |
| Screen over stranding element: | None |
| Stranding: | None |
| Screen over stranding: | None |
| Longitudinal water blocking cable: | no |
| Radial water blocking cable: | yes |
| Suitable for underground installation: | no |
| Approved type of underground installation: | Other |
| Protective sheath: | Other |
| Material outer sheath: | Other |
| Specification material outer sheath: | Other |
| Colour outer sheath: | White |
| Armouring/reinforcement: | None |
| Material armouring: | Other |
| Cable geometry: | Round |
| Reaction-to-fire according to EN 13501-6: Class: | B2ca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | s1a |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d0 |
| Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
| Halogen free according to EN IEC 60754-2: | yes |
| Low smoke according to EN IEC 61034-2: | yes |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 5 mm |
| Min. permitted bending radius, moving application with forced guidance: | 50 mm |
| Min. permitted bending radius, moving application/free movement: | 50 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 40 mm |
| Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
| Permitted cable outer temperature after assembling without vibration: | -20 - 60 °C |
| Category: | 5E |
| NVP value: | 68 % |
| UV resistant: | no |
| Certified for shipboard application: | no |
| Suitable as telephone cable: | yes |
| Suitable as computer data cable: | yes |
| Suitable as signalling cable: | yes |
| Weight: | 29.5 kg/km |
