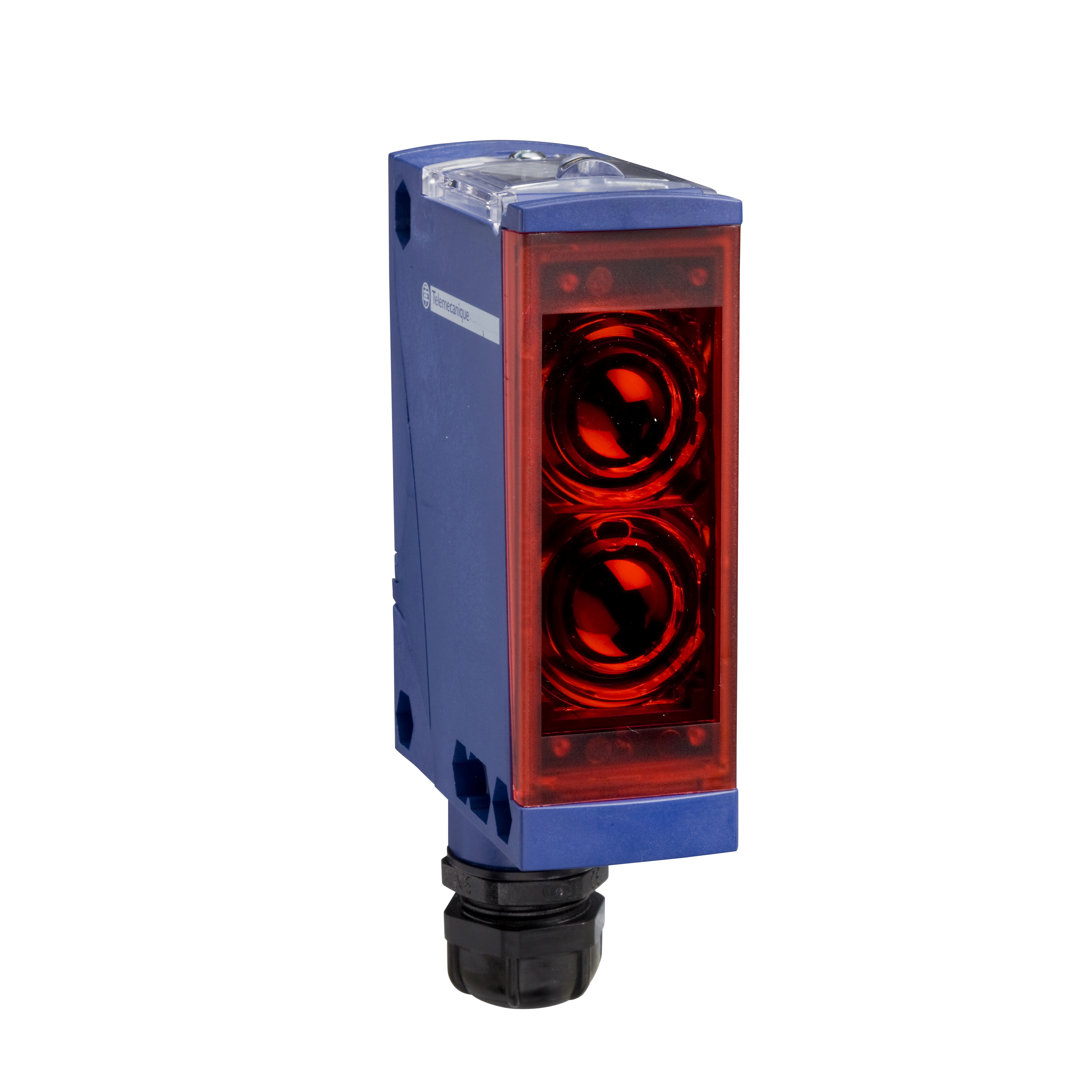

OsiSense XU Czujnik fotoelektryczny 1NO/1NC 12/24V DC, zaciski śrubowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | XUX0AKSAT16 |
| GTIN(EAN) | 3389110168044 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten czujnik fotoelektryczny o kompaktowej konstrukcji, jednomodowy (system thru-beam), posiada obudowę PBT Posiada napięcie zasilania od 12V do 24V DC. Ten wielomodowy prostokątny fotoemiter ma konstrukcję z lakierowanego aluminium i poliamidu, można go zamontować bezpośrednio na powierzchni lub na wsporniku, dzięki 4 punktom mocowania. Posiada obudowę VALOX® PBT o wysokiej wytrzymałości idealną do pracy w wysokich temperaturach oraz soczewkę PMMA odporną na zarysowania dla maksymalnej trwałości czujnika. Trzy kontrolki LED umożliwiają identyfikację stanu czujnika i niestabilności wiązki, co ułatwia rozwiązywanie problemów. Stopień ochrony IP65 i IP67 czyni ten produkt gotowym do pracy w najtrudniejszych warunkach. Może pracować w bardzo zimnym (-25°C) i gorącym środowisku (+55°C). Zapewnia podwójną izolację dla lepszej ochrony ludzi i systemu przed porażeniem elektrycznym. Posiada certyfikat CSA i UL.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 195 g |
| ETIM class: | Through beam photoelectric sensor |
| Length of sensor: | 77 mm |
| Housing material: | Plastic |
| Suitable for safety functions: | no |
| Type of safety according to IEC 61496-1: | 1 |
| Explosion safety category for dust: | None |
| With reflector: | no |
| Height of sensor: | 92 mm |
| With restart blockage: | no |
| With monitoring function downstream switching devices: | no |
| With communication interface Ethernet: | no |
| With communication interface SSD: | no |
| With communication interface RS-485: | no |
| With communication interface RS-422: | no |
| Ambient temperature: | -25 - 55 °C |
| With communication interface RS-232: | no |
| Setting procedure: | Teach-In |
| Explosion safety category for gas: | None |
| With communication interface SSI: | no |
| With communication interface PROFIBUS: | no |
| With communication interface INTERBUS: | no |
| Max. output current: | 100 mA |
| Rated control supply voltage DC: | 12 - 24 V |
| Operation agent-safety class: | Safety class 0 |
| With communication interface DeviceNet: | no |
| Switching frequency: | 250 Hz |
| With communication interface CANOpen: | no |
| With communication interface AS-Interface: | no |
| With communication interface analogue: | no |
| Scope of delivery of the one-way system: | Transmitter and receiver |
| With time function: | no |
| Width sensor: | 30 mm |
| Voltage type: | DC |
| Max. opening angle: | 0 ° |
| Type of light: | Infrared light |
| Laser protection class: | Other |
| Degree of protection (IP): | IP65 |
| Type of interface for safety communication: | Other |
| Material of cable sheath: | Other |
| Material of optical surface: | Plastic |
| Max. switching distance: | 60000 mm |
| Type of switching output: | Other |
| Type of electric connection: | Screw connection |
| Type of switch function: | Programmable/configurable |
| Response time: | 2 ms |
| With other analogue output: | no |
| Number of contact energized outputs with signalling function: | 0 |
| Number of semiconductor outputs with signalling function: | 0 |
| Number of protected semiconductor outputs: | 0 |
| Pre failure notice: | no |
| Construction type housing: | Cuboid |
| Number of protected contact energized outputs: | 0 |
| Rated switching distance: | 40000 mm |
| Analogue output -10 V ... +10 V: | no |
| Analogue output 0 mA ... 20 mA: | no |
| Analogue output 0 V ... 10 V: | no |
| Sensing mode: | Dark switching |
| Analogue output 4 mA ... 20 mA: | no |
