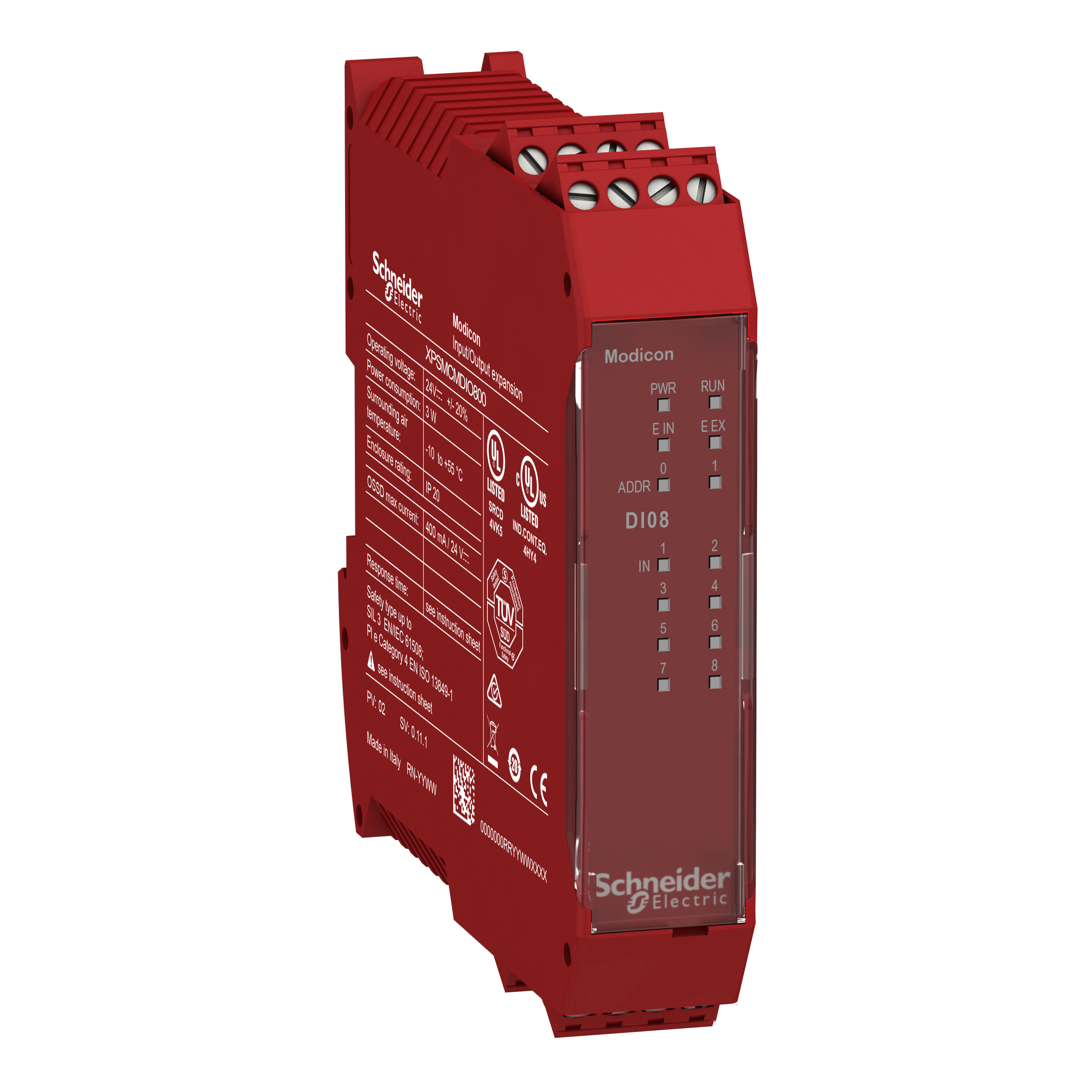

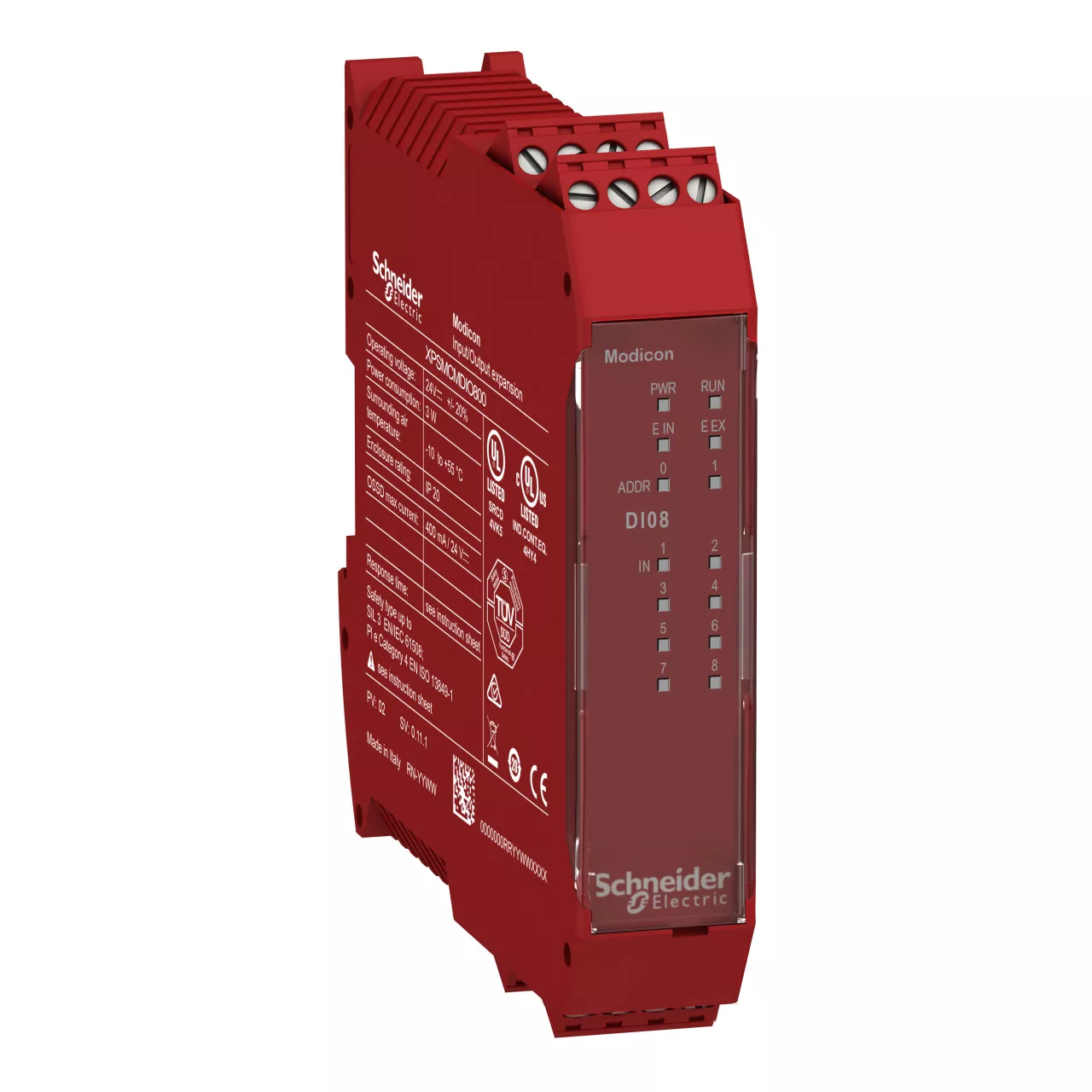

Moduł rozszerzeń 8 wejść zaciski śrubowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | XPSMCMDI0800 |
| GTIN(EAN) | 3606480748585 |
| Price unit | piece |
| Catalog price | 2 212,77 zł (1 799,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 222 g |
| ETIM class: | Device for monitoring of safety-related circuits |
| Performance level according to EN ISO 13849-1: | Level e |
| Width: | 22.5 mm |
| Height: | 99 mm |
| Type of electric connection: | Screw connection |
| SIL according to IEC 61508: | 3 |
| Depth: | 114.5 mm |
| Model: | Expansion device |
| Number of outputs, safety related, delayed, with contact: | 0 |
| Number of outputs, safety related, undelayed, semiconductors: | 0 |
| With feedback circuit: | yes |
| With approval according to UL: | yes |
| Number of outputs, safety related, undelayed, with contact: | 0 |
| Number of outputs, signalling function, delayed, with contact: | 0 |
| Number of outputs, safety related, delayed, semiconductors: | 0 |
| Number of outputs, signalling function, undelayed, with contact: | 0 |
| Evaluation inputs: | Other |
| Stop category according to IEC 60204: | 0 + 1 |
| With approval for TÜV: | yes |
| With approval for BG BIA: | no |
| Voltage type for actuating: | DC |
| Number of outputs, signalling function, undelayed, semiconductors: | 0 |
| Number of outputs, signalling function, delayed, semiconductors: | 0 |
| Suitable for monitoring of position switches: | yes |
| Suitable for monitoring of tactile sensors: | yes |
| Suitable for monitoring of valves: | no |
| Rail mounting possible: | yes |
| Type of safety according to IEC 61496-1: | 4 |
| Suitable for monitoring of magnetic switches: | yes |
| Suitable for monitoring of proximity switches: | yes |
| Suitable for monitoring of emergency-stop circuits: | yes |
| Suitable for monitoring of optoelectronic protection equipment: | yes |
| With start input: | yes |
| Rated control supply voltage DC: | 24 - 24 V |
| With muting function: | yes |
| With detachable clamps: | yes |
