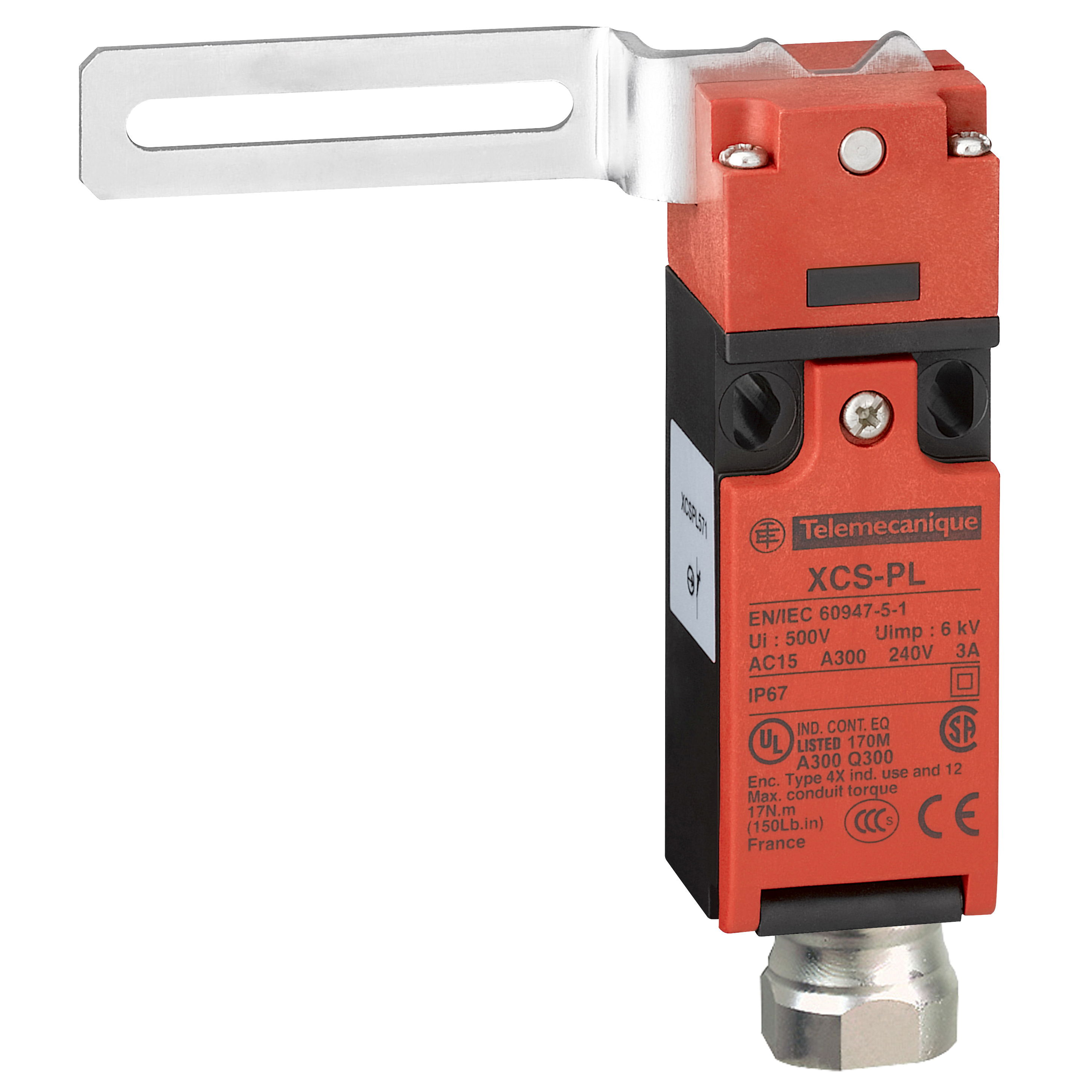

Preventa Safety Wyłącznik bezpieczeństwa XCSPL kolankowa dźwignia z lewej 1NC+1NO 1/2NPT

• buy at the outlet / on sale
• Buy online
• Buy / order

Information	Value
Supplier	Schneider Electric Polska Sp. z o.o.
Symbol	XCSPL593
GTIN(EAN)	3389110866551
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock

Additional features:

Information	Value
Gross weight:	125 g
ETIM class:	End switch
Width sensor:	103 mm
Length of sensor:	30 mm
Housing material:	Plastic
Suitable for safety functions:	yes
Switching function:	Other
Degree of protection (IP):	IP67K
Rated operation current Ie at AC-15, 125 V:	6 A
Explosion safety category for dust:	None
Type of interface for safety communication:	None
Switching function latching:	no
Rated operation current Ie at AC-15, 230 V:	3 A
Rated operation current Ie at DC-13, 230 V:	0.27 A
Type of electric connection:	Other
Height of sensor:	88 mm
Rated operation current Ie at DC-13, 125 V:	0.55 A
Number of contacts as change-over contact:	0
Number of contacts as normally open contact:	1
Number of contacts as normally closed contact:	1
Coating housing:	Other
With status indication:	no
Number of safety auxiliary contacts:	0
Construction type housing:	Cuboid
Output electronic:	no
Explosion safety category for gas:	None
Ambient temperature during operating:	-25 - 70 °C
Type of interface:	None
Type of control element:	Rotary lever
Alignment of the control element:	Other
Forced opening:	no

Additional information:

Information	Value
Updated:	2023-12-04 20:15:28
Files to download:	ECEUDoC W915263760111-12 [XCS] 2022-04-27.pdf (419,0 KB) (Deklaracja DOC CE (Deklaracja zgodności CE), ) ENVPEP110606EN_V3.pdf (267,6 KB) (Deklaracja EPD (Deklaracja Środowiskowa Produktu), ) ENVEOLI110603EN_V2.pdf (178,8 KB) (Inne, )
External links:	Głęboki link dot. REACH Instrukcja montażu Broszura sprzedaży
