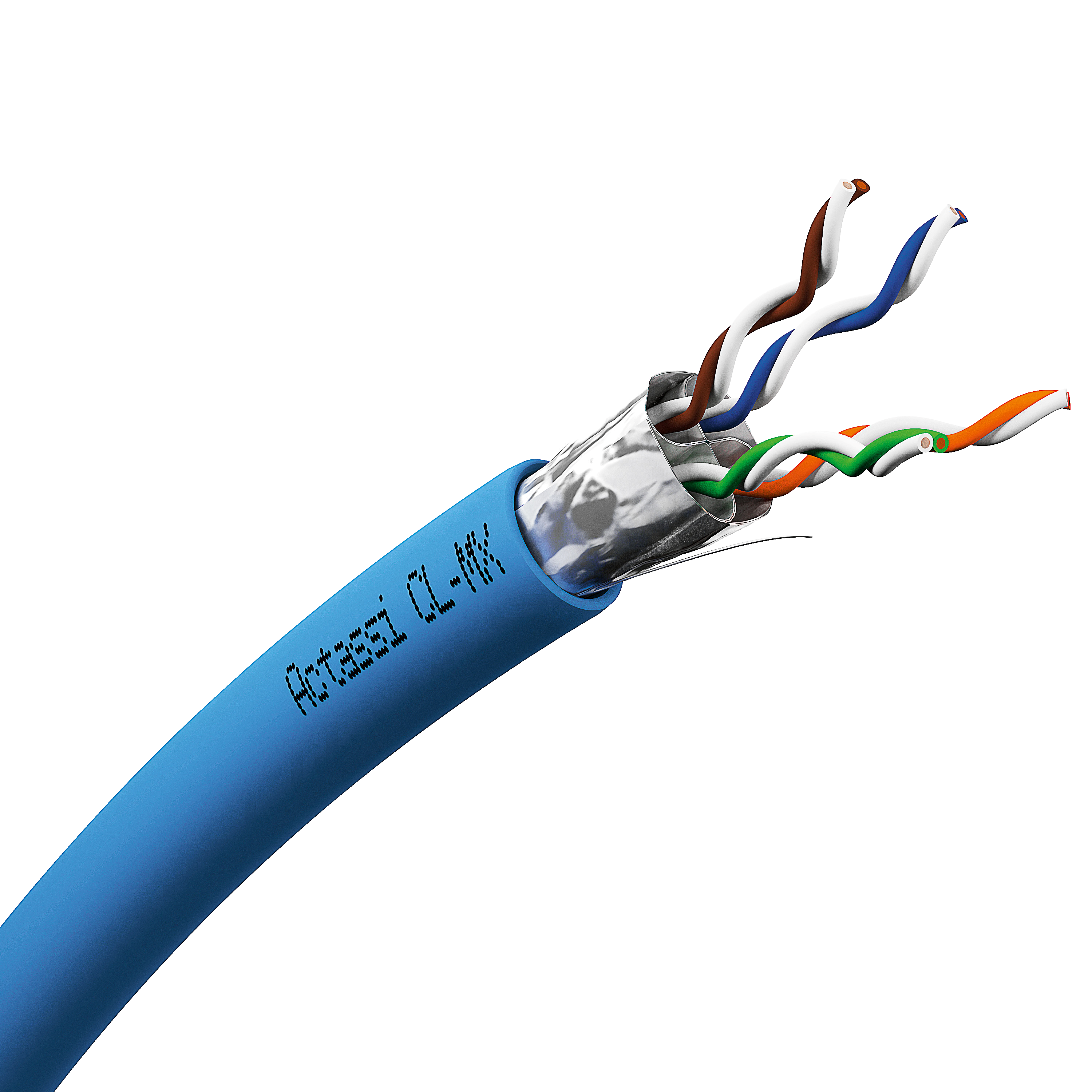

Kabel Actassi LAN F/FTP 4P Cat6A Euroclass D 550MHz LSZH 1000m
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | VDICD68X318 |
GTIN(EAN) | 3606481320353 |
Price unit | piece |
Catalog price | 13 244,64 zł (10 768,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 55,6 kg |
ETIM class: | Data and communication cable |
Screen over stranding element: | Foil |
Outer diameter approx.: | 7.3 mm |
Screen over stranding: | Foil |
UV resistant: | no |
Conductor category: | Class 1 = solid |
NVP value: | 82 % |
Category: | 6A (IEC) |
Stranding element: | Pairs |
Colour outer sheath: | Blue |
Diameter conductor: | 0.565 mm |
Number of stranding elements: | 4 |
Radial water blocking cable: | no |
Longitudinal water blocking cable: | no |
Min. permitted bending radius, stationary application/permanent installation: | 29.2 mm |
Specification core insulation: | Polyethylene (PE) |
Specification material outer sheath: | Polyethylene (PE) |
Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
Permitted cable outer temperature after assembling without vibration: | -20 - 60 °C |
Number of cores: | 8 |
Core identification: | Colour |
Nominal cross section conductor: | 0.25 mm² |
Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d1 |
Reaction-to-fire according to EN 13501-6: Class: | Dca |
Suitable for underground installation: | no |
Reaction-to-fire according to EN 13501-6: Smoke production: | s2 |
Conductor surface: | Bare |
Halogen free according to EN IEC 60754-2: | yes |
Low smoke according to EN IEC 61034-2: | yes |
Oil resistant according to EN IEC 60811-404: | no |
Conductor material: | Copper |
AWG size: | 23 |
Cable geometry: | Round |
Halogen free according to EN 60754-1/2: | yes |
Insulation integrity according to IEC 60331: | no |
Low smoke (according to EN 61034-2): | yes |
Oil resistant (according to IEC 60811-404): | no |
Flame retardant: | According to IEC/EN 60332-1-2 |
