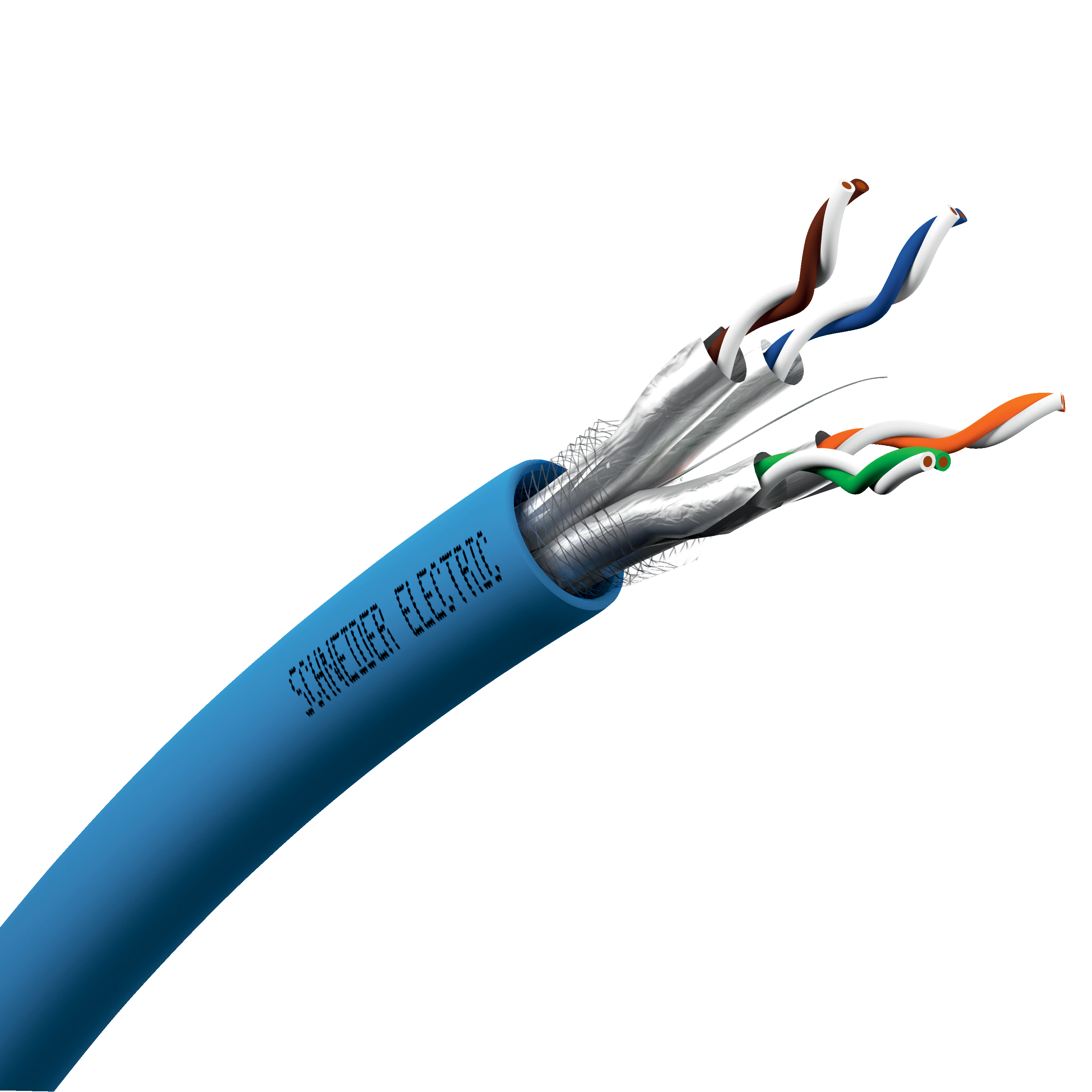

Kabel Actassi LAN S/FTP 4P Cat7A Euroclass D 1,2GHz LSZH 500m
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | VDICD658218 |
| GTIN(EAN) | 3606481320452 |
| Price unit | piece |
| Catalog price | 9 159,81 zł (7 447,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 31 kg |
| ETIM class: | Data and communication cable |
| Screen over stranding element: | Foil |
| Outer diameter approx.: | 7.3 mm |
| Screen over stranding: | Braiding |
| UV resistant: | no |
| Conductor category: | Class 1 = solid |
| NVP value: | 80 % |
| Category: | 7A (IEC) |
| Stranding element: | Pairs |
| Colour outer sheath: | Blue |
| Diameter conductor: | 0.565 mm |
| Number of stranding elements: | 4 |
| Radial water blocking cable: | no |
| Longitudinal water blocking cable: | no |
| Min. permitted bending radius, stationary application/permanent installation: | 29.2 mm |
| Specification core insulation: | Polyethylene (PE) |
| Specification material outer sheath: | Polyethylene (PE) |
| Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
| Permitted cable outer temperature after assembling without vibration: | -20 - 60 °C |
| Number of cores: | 8 |
| Core identification: | Colour |
| Nominal cross section conductor: | 0.25 mm² |
| Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d1 |
| Reaction-to-fire according to EN 13501-6: Class: | Dca |
| Suitable for underground installation: | no |
| Reaction-to-fire according to EN 13501-6: Smoke production: | s2 |
| Conductor surface: | Bare |
| Halogen free according to EN IEC 60754-2: | yes |
| Low smoke according to EN IEC 61034-2: | yes |
| Oil resistant according to EN IEC 60811-404: | no |
| Conductor material: | Copper |
| AWG size: | 23 |
| Cable geometry: | Round |
| Halogen free according to EN 60754-1/2: | yes |
| Insulation integrity according to IEC 60331: | no |
| Low smoke (according to EN 61034-2): | yes |
| Oil resistant (according to IEC 60811-404): | no |
| Flame retardant: | According to IEC/EN 60332-1-2 |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 00:05:02 |
| Files to download: | |
| External links: |
