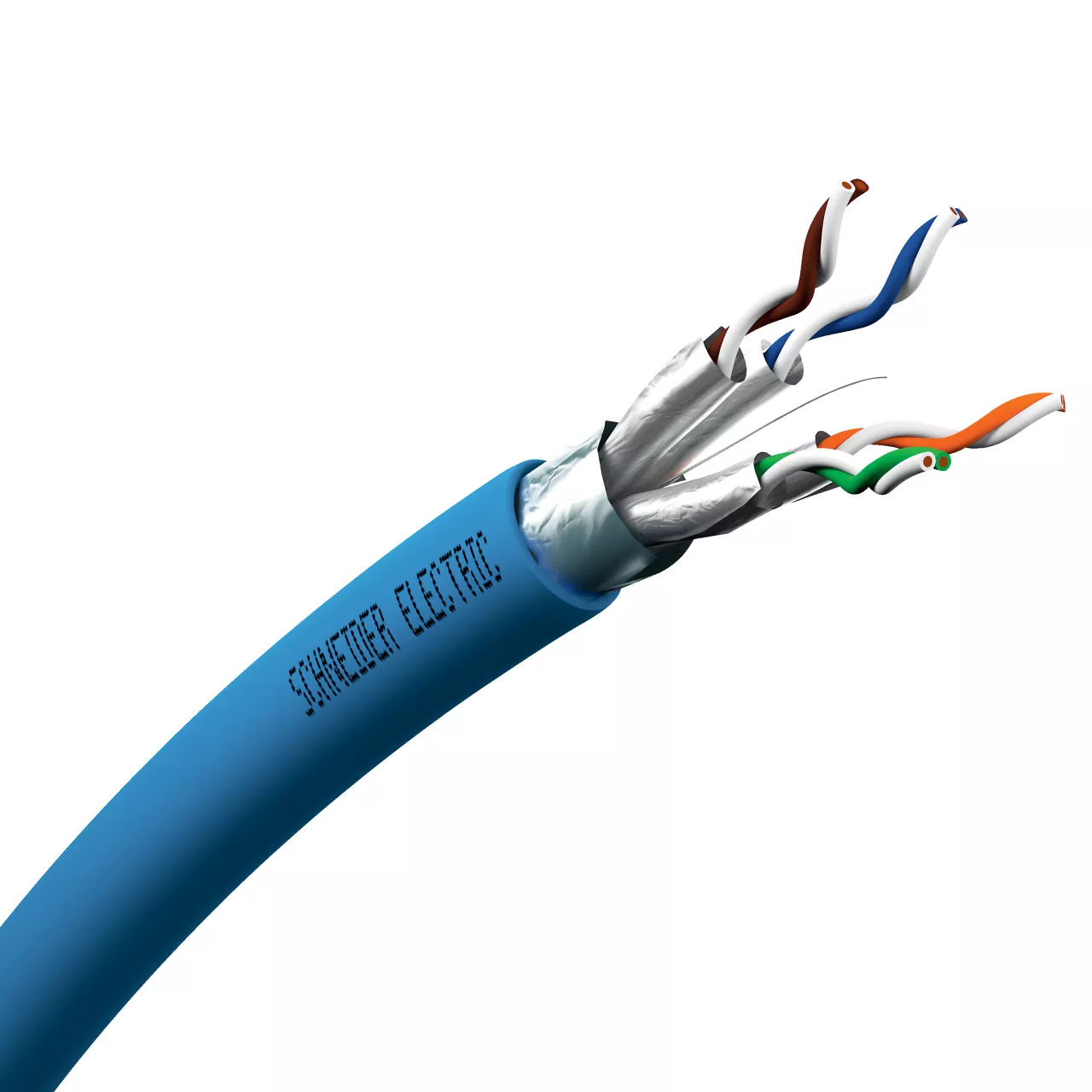

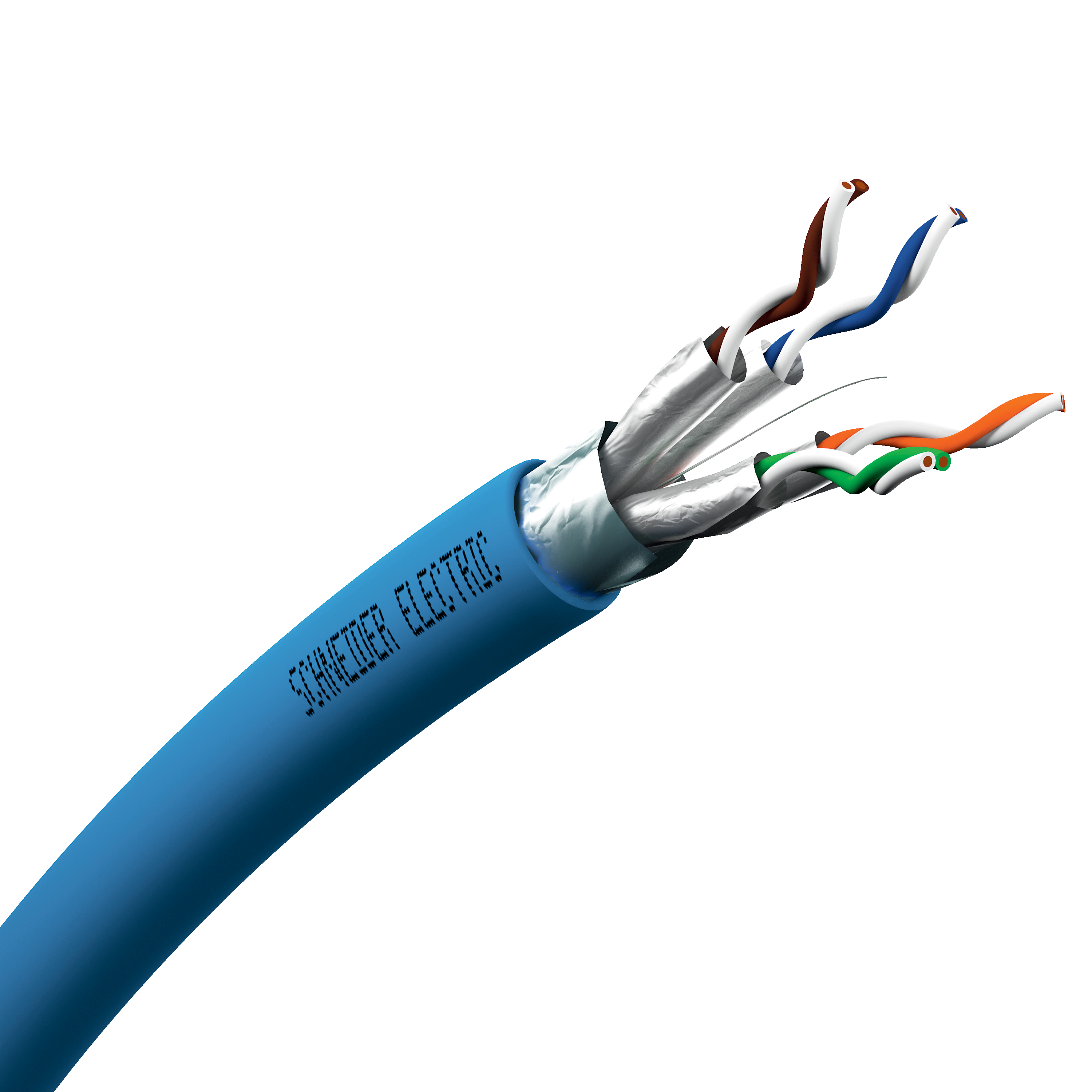

Kabel Actassi LAN F/FTP 4P Cat6A Euroclass D 550MHz LSZH 1000m
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | VDICD64X318 |
| GTIN(EAN) | 3606481320315 |
| Price unit | piece |
| Catalog price | 13 791,99 zł (11 213,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 53,5 kg |
| ETIM class: | Data and communication cable |
| Screen over stranding element: | Foil |
| Outer diameter approx.: | 7 mm |
| Screen over stranding: | Foil |
| UV resistant: | no |
| Conductor category: | Class 1 = solid |
| NVP value: | 80 % |
| Category: | 6A (IEC) |
| Stranding element: | Pairs |
| Colour outer sheath: | Blue |
| Diameter conductor: | 0.565 mm |
| Number of stranding elements: | 4 |
| Radial water blocking cable: | no |
| Longitudinal water blocking cable: | no |
| Min. permitted bending radius, stationary application/permanent installation: | 28 mm |
| Specification core insulation: | Polyethylene (PE) |
| Specification material outer sheath: | Polyethylene (PE) |
| Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
| Permitted cable outer temperature after assembling without vibration: | -20 - 60 °C |
| Number of cores: | 8 |
| Core identification: | Colour |
| Nominal cross section conductor: | 0.25 mm² |
| Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d1 |
| Reaction-to-fire according to EN 13501-6: Class: | Dca |
| Suitable for underground installation: | no |
| Reaction-to-fire according to EN 13501-6: Smoke production: | s2 |
| Conductor surface: | Bare |
| Halogen free according to EN IEC 60754-2: | yes |
| Low smoke according to EN IEC 61034-2: | yes |
| Oil resistant according to EN IEC 60811-404: | no |
| Conductor material: | Copper |
| AWG size: | 23 |
| Cable geometry: | Round |
| Halogen free according to EN 60754-1/2: | yes |
| Insulation integrity according to IEC 60331: | no |
| Low smoke (according to EN 61034-2): | yes |
| Oil resistant (according to IEC 60811-404): | no |
| Flame retardant: | According to IEC/EN 60332-1-2 |
