Rozłącznik główny bezpieczeństwa w obudowie TeSys MINI VARIO 16A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | VCFN20GE |
| GTIN(EAN) | 3389110759990 |
| Price unit | piece |
| Catalog price | 384,24 zł (312,39 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

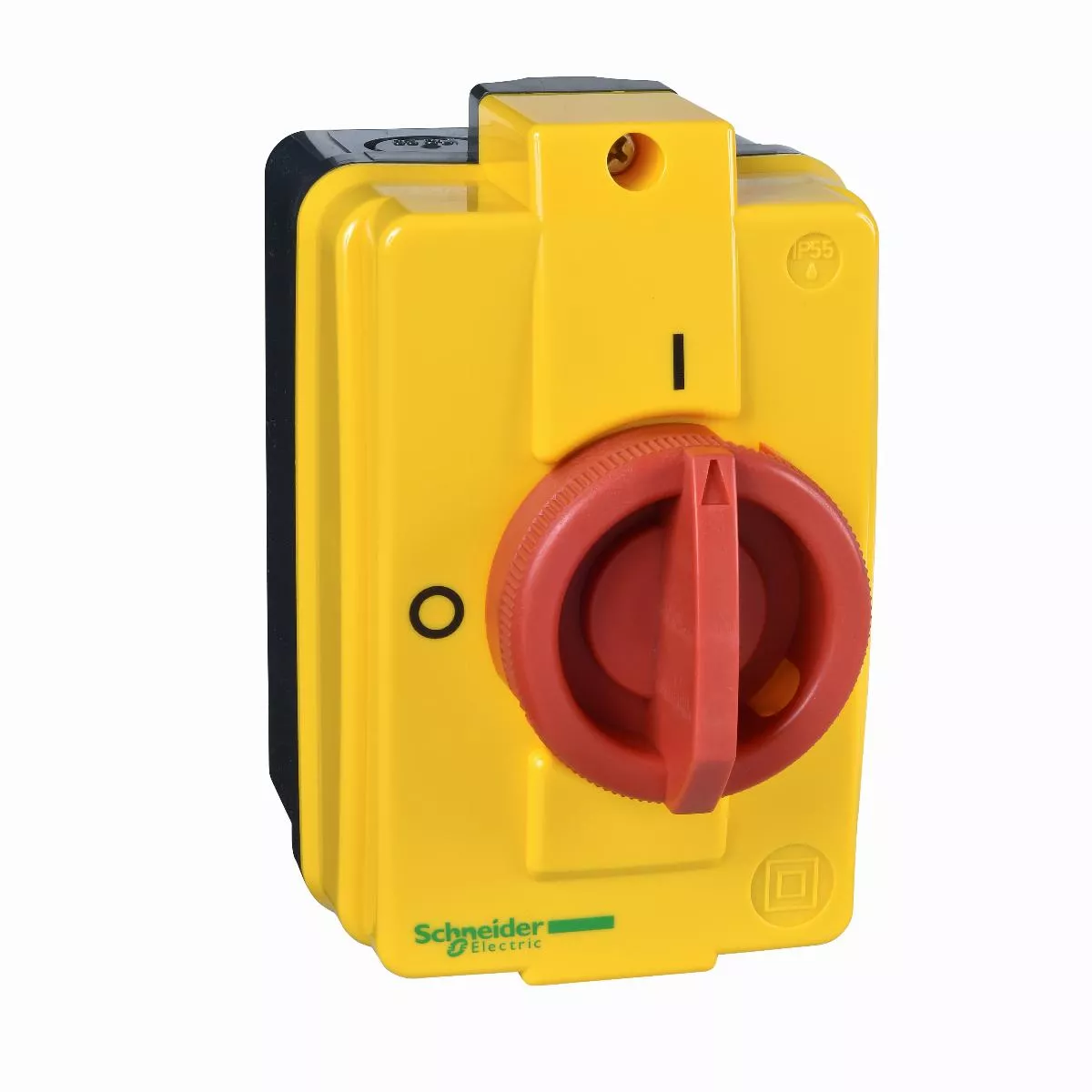

Rozrusznik w obudowie TeSys z rozłącznikiem, 3-biegunowy, Ithe 16A 690V, do głównego i awaryjnego rozłączania w zastosowaniach silnikowych do 5,5kW@400V AC-23. Obudowa zapewniająca stopień ochrony IP55, żółta pokrywa z czerwonym uchwytem obrotowym i oznaczeniem I/O, zamykana na kłódkę (kłódki nie są dołączone). Zawiera 3-biegunowy korpus rozłącznik a mini-Vario VN20 z możliwością podłączenia 2 modułów dodatkowych. Obudowa do montażu natynkowego z mocowaniem śrubowym, 2 otwory na dławiki kablowe na górze i na dole, zamykana pokrywa. Zgodność z normą IEC 60947-4-1, zgodność z Green Premium (RoHS/REACh). Etykieta Green Premium jest zobowiązaniem firmy Schneider Electric do dostarczania produktów
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 305 g |
| ETIM class: | Switch disconnector (low voltage) |
| Rated short-time withstand current lcw: | 0.14 kA |
| Version as emergency stop installation: | yes |
| Number of auxiliary contacts as change-over contact: | 0 |
| Interlockable: | yes |
| Voltage release optional: | no |
| Number of poles: | 3 |
| Degree of protection (IP), front side: | IP55 |
| Suitable for front mounting centre: | no |
| Suitable for front mounting 4-hole: | yes |
| Number of switches: | 1 |
| Rated permanent current at AC-23, 400 V: | 11 A |
| Rated permanent current Iu: | 16 A |
| Colour control element: | Red |
| Suitable for floor mounting: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Version as safety switch: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Version as maintenance-/service switch: | no |
| Device construction: | Complete device in housing |
| Max. rated operation voltage Ue AC: | 690 V |
| Version as main switch: | yes |
| Rated operating voltage: | 690 - 690 V |
| Rated operation power at AC-23, 400 V: | 5.5 kW |
| Version as reversing switch: | no |
| Motor drive integrated: | no |
| Rated operation power at AC-3, 400 V: | 4 kW |
| Type of control element: | Turn button |
| Conditioned rated short-circuit current Iq: | 6 kA |
| Suitable for distribution board installation: | no |
| Motor drive optional: | no |
| Rated permanent current at AC-21, 400 V: | 16 A |
| Switching power at 400 V: | 9 kW |
| Suitable for intermediate mounting: | no |
