Rozłącznik główny bezpieczeństwa na drzwi TeSys VARIO 175A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | VCF6 |
| GTIN(EAN) | 3389110804645 |
| Price unit | piece |
| Catalog price | 1 603,00 zł (1 303,25 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

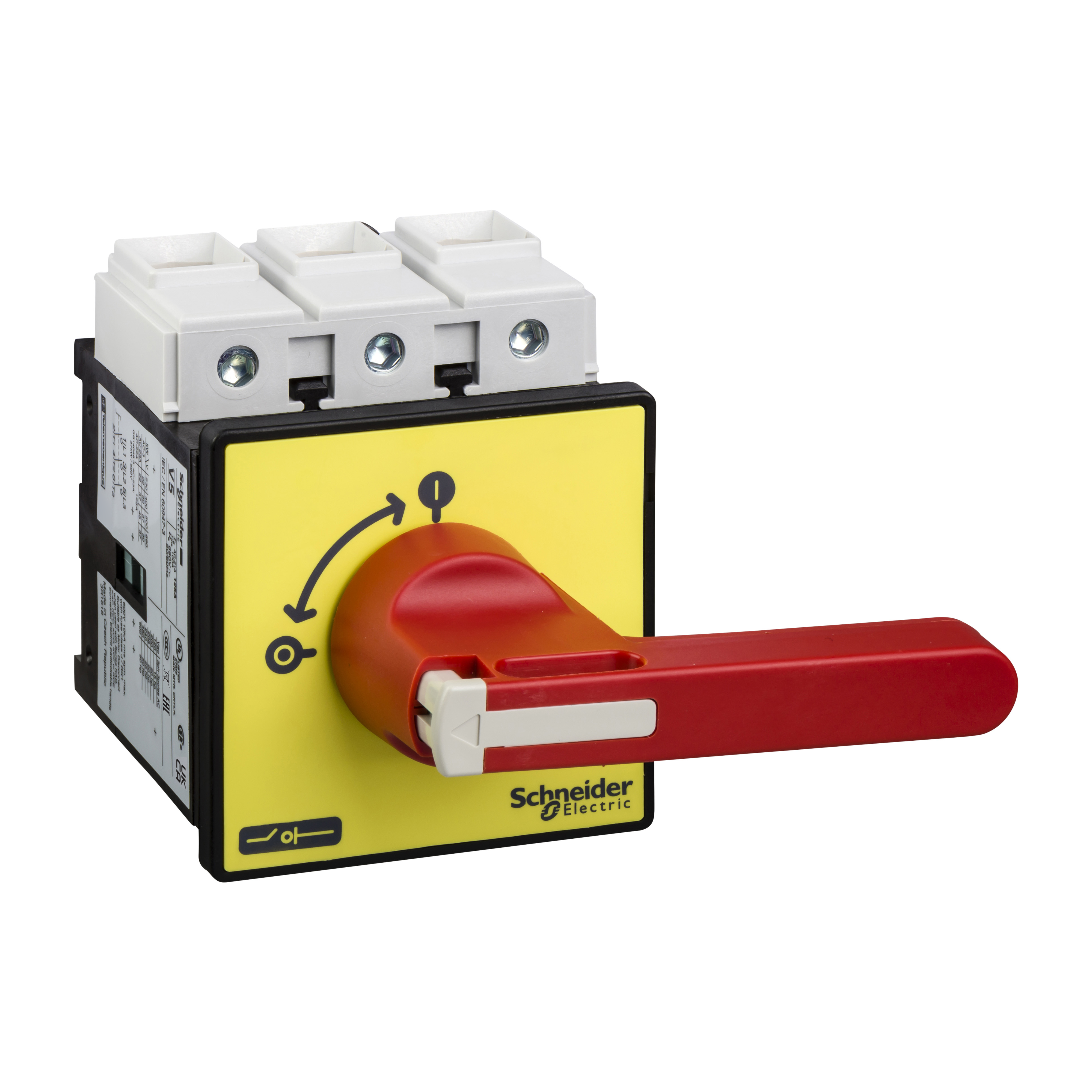

Rozłącznik TeSys Vario do montażu na drzwiach, 3-biegunowy, 175A/690V, do przełączania silników do 45kW@400V AC-23. Kompletne urządzenie składające się z korpusu rozłącznika V6, czerwonego uchwytu z żółtą płytą czołową 90x90mm KCF3PZ. Przeznaczony do użytku jako rozłącznik główny i wyłącznik awaryjny. Uchwyt zamykany na kłódkę, na 3 kłódki (zamawia ne oddzielnie). Uchwyt z mocowaniem do drzwi za pomocą 4 śrub, zapewniający stopień ochrony IP65. Posiada certyfikaty wielu norm (IEC, UL, CSA, CCC, EAC, Certyfikaty morskie), jest zgodny z Green Premium (RoHS/REACh). Etykieta Green Premium jest zobowiązaniem firmy Schneider Electric do dostarczania produktów o najwyższej w swojej klasie ekologicz
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,064 kg |
| ETIM class: | Switch disconnector (low voltage) |
| Rated short-time withstand current lcw: | 2.1 kA |
| Version as emergency stop installation: | yes |
| Number of auxiliary contacts as change-over contact: | 0 |
| Interlockable: | yes |
| Voltage release optional: | no |
| Number of poles: | 3 |
| Degree of protection (IP), front side: | IP65 |
| Suitable for front mounting centre: | no |
| Suitable for front mounting 4-hole: | yes |
| Number of switches: | 1 |
| Rated permanent current at AC-23, 400 V: | 21.8 A |
| Rated permanent current Iu: | 175 A |
| Colour control element: | Red |
| Suitable for floor mounting: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Version as safety switch: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Version as maintenance-/service switch: | no |
| Device construction: | Built-in device fixed built-in technique |
| Max. rated operation voltage Ue AC: | 690 V |
| Version as main switch: | yes |
| Rated operating voltage: | 690 - 690 V |
| Rated operation power at AC-23, 400 V: | 45 kW |
| Version as reversing switch: | no |
| Motor drive integrated: | no |
| Rated operation power at AC-3, 400 V: | 37 kW |
| Type of control element: | Turn button |
| Conditioned rated short-circuit current Iq: | 10 kA |
| Suitable for distribution board installation: | yes |
| Motor drive optional: | no |
| Rated permanent current at AC-21, 400 V: | 160 A |
| Switching power at 400 V: | 90 kW |
| Suitable for intermediate mounting: | no |
