Rozłącznik główny bezpieczeństwa na drzwi TeSys VARIO 12A
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | VCF02 |
GTIN(EAN) | 3389110448870 |
Price unit | piece |
Catalog price | 309,82 zł (251,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

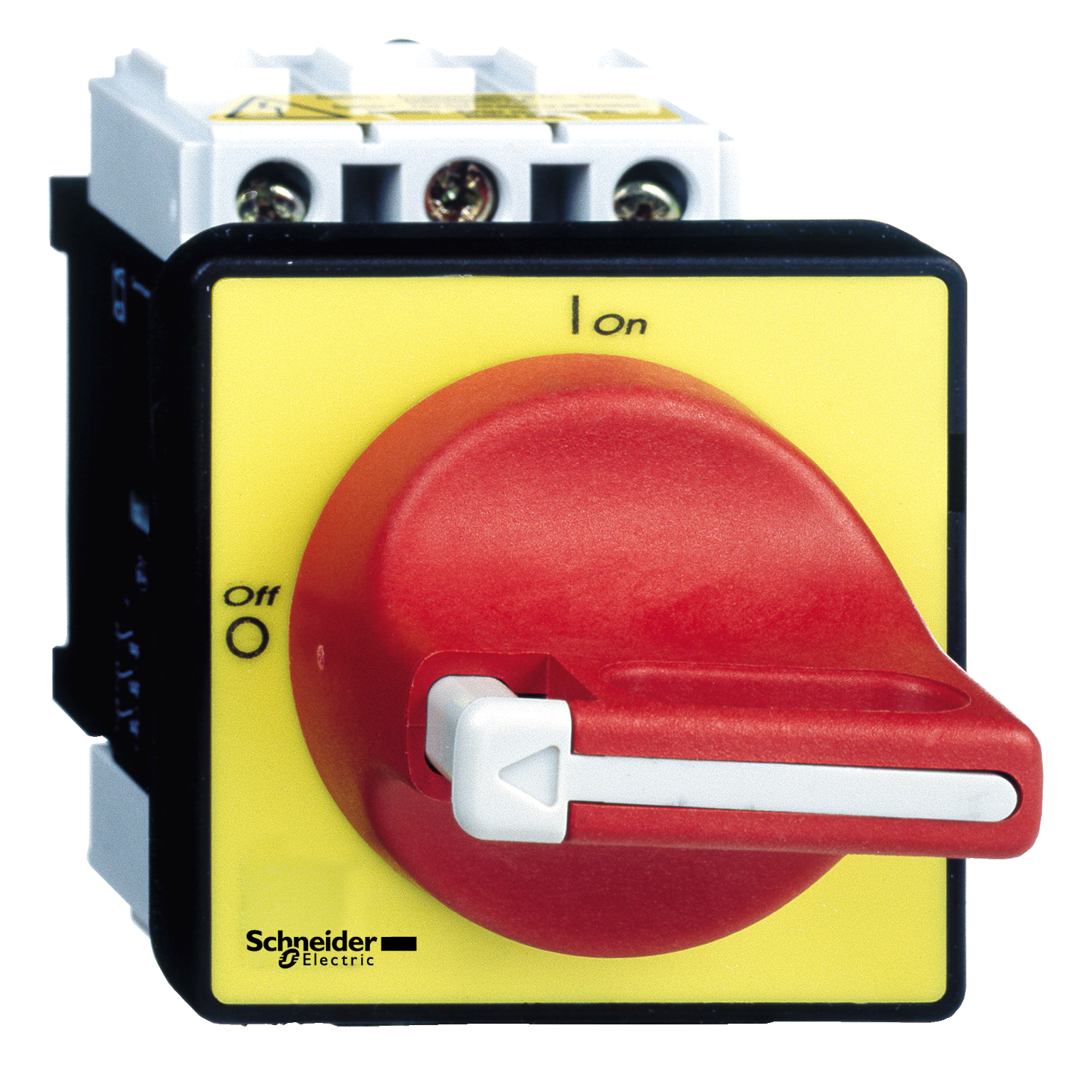

Rozłącznik TeSys Vario do montażu na drzwiach, 3-biegunowy, 12A/690V, do przełączania silników do 4kW@400V AC-23. Kompletny aparat składający się z korpusu rozłącznika V02, czerwonego uchwytu z żółtą płytką czołową 60x60mm KCF1PZ. Przeznaczony do użytku jako rozłącznik główny i wyłącznik awaryjny. Uchwyt zamykany na kłódkę, na 3 kłódki (zamawiane o ddzielnie). Uchwyt z mocowaniem do drzwi za pomocą 4 śrub, zapewniający stopień ochrony IP65. Posiada certyfikaty wielu norm (IEC, UL, CSA, CCC, EAC, Certyfikaty morskie), jest zgodny z Green Premium (RoHS/REACh). Etykieta Green Premium jest zobowiązaniem firmy Schneider Electric do dostarczania produktów o najwyższej w swojej klasie ekologicznośc
Additional features:
Information | Value |
---|---|
Gross weight: | 219 g |
ETIM class: | Switch disconnector (low voltage) |
Rated short-time withstand current lcw: | 0.3 kA |
Version as emergency stop installation: | yes |
Number of auxiliary contacts as change-over contact: | 0 |
Interlockable: | yes |
Voltage release optional: | no |
Number of poles: | 3 |
Degree of protection (IP), front side: | IP65 |
Suitable for front mounting centre: | no |
Suitable for front mounting 4-hole: | yes |
Number of switches: | 1 |
Rated permanent current at AC-23, 400 V: | 8.1 A |
Rated permanent current Iu: | 12 A |
Colour control element: | Red |
Suitable for floor mounting: | no |
Type of electrical connection of main circuit: | Screw connection |
Version as safety switch: | no |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Version as maintenance-/service switch: | no |
Device construction: | Built-in device fixed built-in technique |
Max. rated operation voltage Ue AC: | 690 V |
Version as main switch: | yes |
Rated operating voltage: | 690 - 690 V |
Rated operation power at AC-23, 400 V: | 4 kW |
Version as reversing switch: | no |
Motor drive integrated: | no |
Rated operation power at AC-3, 400 V: | 3 kW |
Type of control element: | Turn button |
Conditioned rated short-circuit current Iq: | 10 kA |
Suitable for distribution board installation: | yes |
Motor drive optional: | no |
Rated permanent current at AC-21, 400 V: | 12 A |
Switching power at 400 V: | 7.5 kW |
Suitable for intermediate mounting: | no |
