Rozłącznik główny bezpieczeństwa na drzwi TeSys MINI VARIO 12A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | VCDN12 |
| GTIN(EAN) | 3389110759877 |
| Price unit | piece |
| Catalog price | 266,80 zł (216,91 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

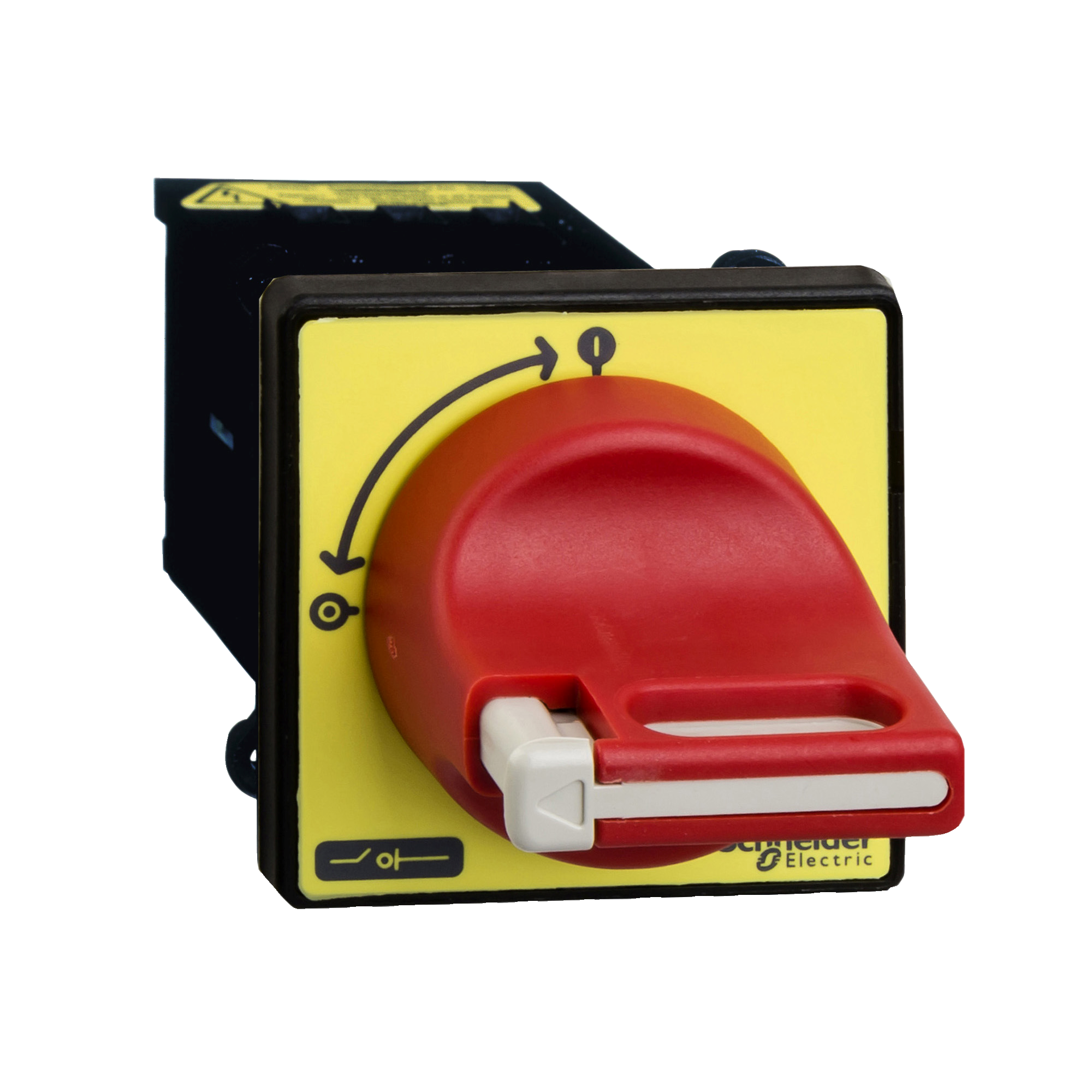

Rozłącznik TeSys Vario do montażu na drzwiach, 3-biegunowy, 12A/690V, do przełączania silników do 4kW@400V AC-23. Kompletny aparat składający się z korpusu rozłącznika VN12, czerwonego uchwytu z żółtą płytą czołową 60x60mm KCD1PZ. Przeznaczony do użytku jako rozłącznik główny i wyłącznik awaryjny. Uchwyt zamykany na kłódkę, na 3 kłódki (zamawiane o ddzielnie). Uchwyt z centralnym mocowaniem na drzwiach, zapewniający stopień ochrony IP65. Posiada certyfikaty wielu norm (IEC, UL, CSA), jest zgodny z Green Premium (RoHS/REACh). Etykieta Green Premium jest zobowiązaniem firmy Schneider Electric do dostarczania produktów o najwyższej w swojej klasie ekologiczności. Green Premium obiecuje zgodność
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 179 g |
| ETIM class: | Switch disconnector (low voltage) |
| Rated short-time withstand current lcw: | 0.14 kA |
| Version as emergency stop installation: | yes |
| Number of auxiliary contacts as change-over contact: | 0 |
| Interlockable: | yes |
| Voltage release optional: | no |
| Number of poles: | 3 |
| Degree of protection (IP), front side: | IP65 |
| Suitable for front mounting centre: | yes |
| Suitable for front mounting 4-hole: | no |
| Number of switches: | 1 |
| Rated permanent current at AC-23, 400 V: | 8.1 A |
| Rated permanent current Iu: | 12 A |
| Colour control element: | Red |
| Suitable for floor mounting: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Version as safety switch: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Version as maintenance-/service switch: | no |
| Device construction: | Built-in device fixed built-in technique |
| Max. rated operation voltage Ue AC: | 690 V |
| Version as main switch: | yes |
| Rated operating voltage: | 690 - 690 V |
| Rated operation power at AC-23, 400 V: | 4 kW |
| Version as reversing switch: | no |
| Motor drive integrated: | no |
| Rated operation power at AC-3, 400 V: | 3 kW |
| Type of control element: | Short thumb-grip |
| Conditioned rated short-circuit current Iq: | 6 kA |
| Suitable for distribution board installation: | no |
| Motor drive optional: | no |
| Rated permanent current at AC-21, 400 V: | 12 A |
| Suitable for intermediate mounting: | no |
