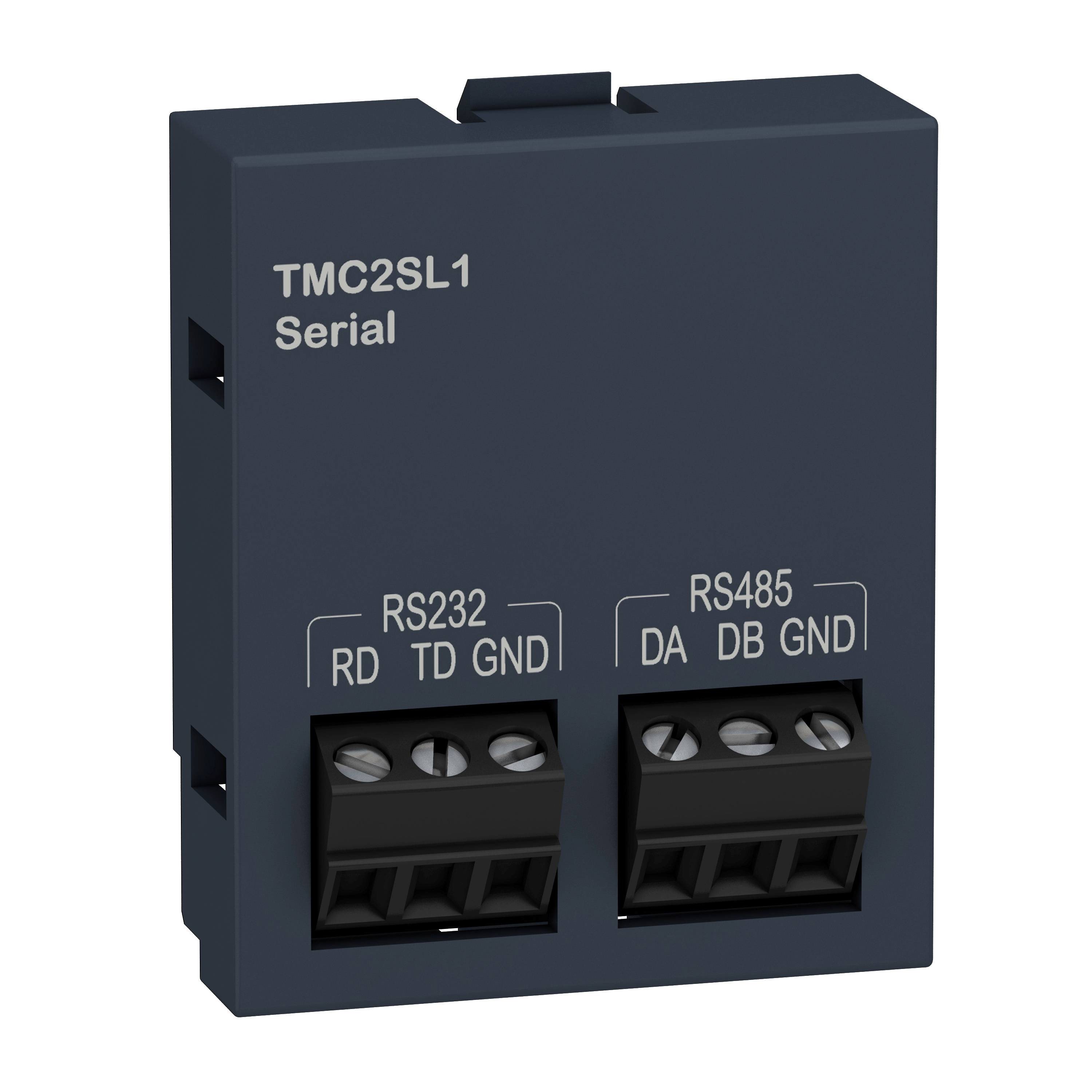

Modicon M221, kaseta komunikacyjna, dodatkowe łącze szeregowe na bloku zacisków śrubowych
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TMC2SL1 |
| GTIN(EAN) | 3606480649141 |
| Price unit | piece |
| Catalog price | 450,18 zł (366,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Produkt jest częścią serii Modicon M221, oferty programowalnych sterowników logicznych dla architektur przewodowych. Moduł linii szeregowej jest rozszerzeniem komunikacji obsługującym szybkość transmisji od 1,2 kb/s do 115,2 kb/s dla magistrali o długości 15 m dla RS485 i 3 m dla RS232. Produkt oferuje ogromną wszechstronność. Nie ma izolacji między liniami, a wewnętrzną logiką. Posiada nieizolowane protokoły portu komunikacyjnego łącza szeregowego, takie jak Modbus master/slave i RTU/ ASCII lub SoMachine-Network. Jego wymiary to 35 mm (szerokość) x 15 mm (głębokość) x 41 mm (wysokość). Waży 0,015 kg. Moduł jest kompatybilny ze sterownikiem PLC Modicon M221C. Sterownik Modicon M221 pozwala osiągąć wzorcową wydajność, jedn ocześnie zwiększając rentowność, dzięki intuicyjnemu oprogramowaniu EcoStruxure Machine Expert Basic.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 30 g |
| ETIM class: | PLC communication module |
| Suitable for safety functions: | no |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| IO link master: | no |
| Explosion safety category for dust: | None |
| Width: | 35 mm |
| Radio standard GPRS: | no |
| Explosion safety category for gas: | None |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| Performance level according to EN ISO 13849-1: | None |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | yes |
| Type of data transmission: | Serial |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Appendant operation agent (Ex ib): | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Appendant operation agent (Ex ia): | no |
| Supporting protocol for CAN: | no |
| Depth: | 15 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Redundancy: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| With potential separation: | no |
| Transmission rate: | 1.2 kb/s |
| Height: | 41 mm |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Number of interfaces PROFINET: | 0 |
| Supporting protocol for SERCOS: | no |
| SIL according to IEC 61508: | None |
| With optical interface: | no |
| Number of HW-interfaces RS-232: | 1 |
| Number of HW-interfaces industrial Ethernet: | 0 |
