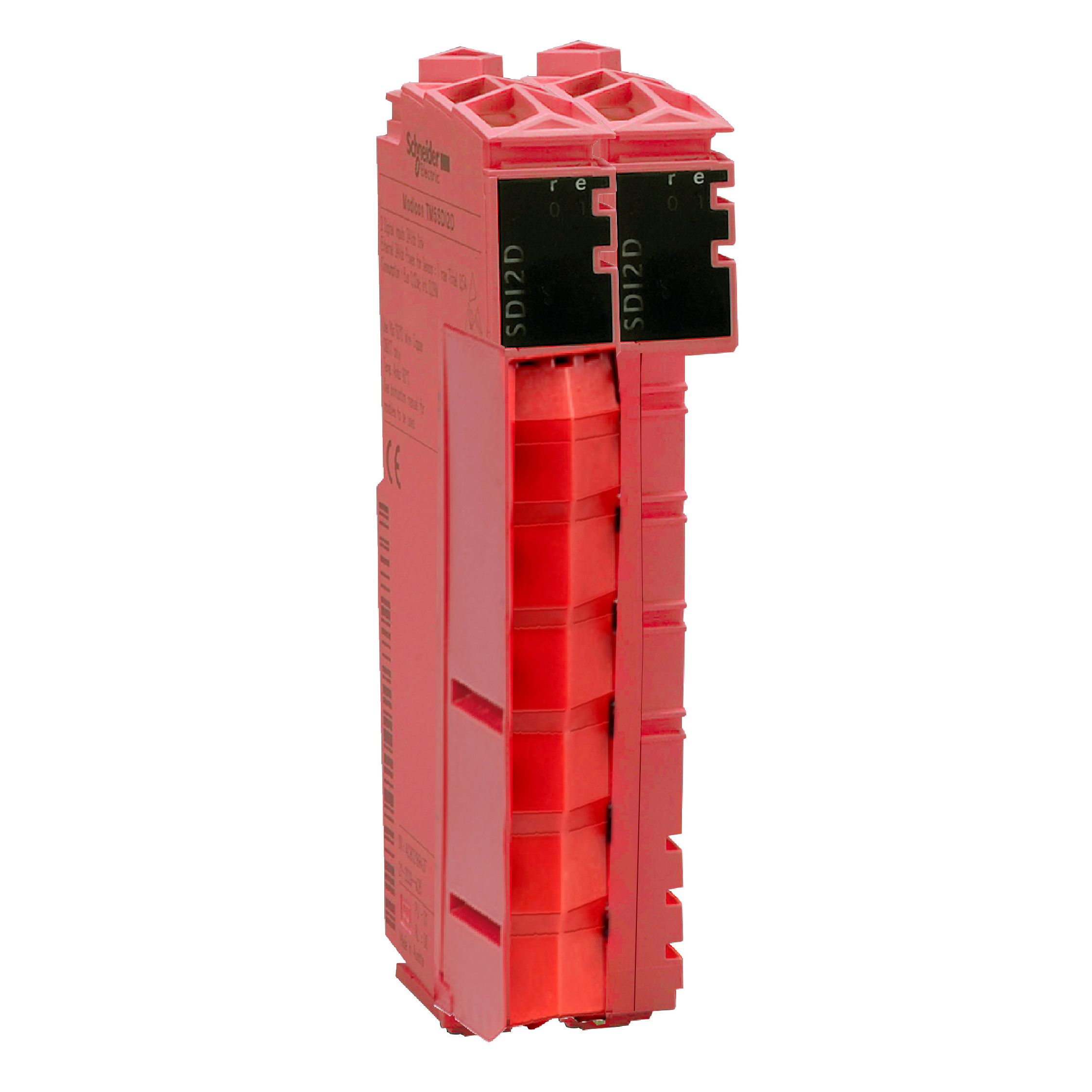

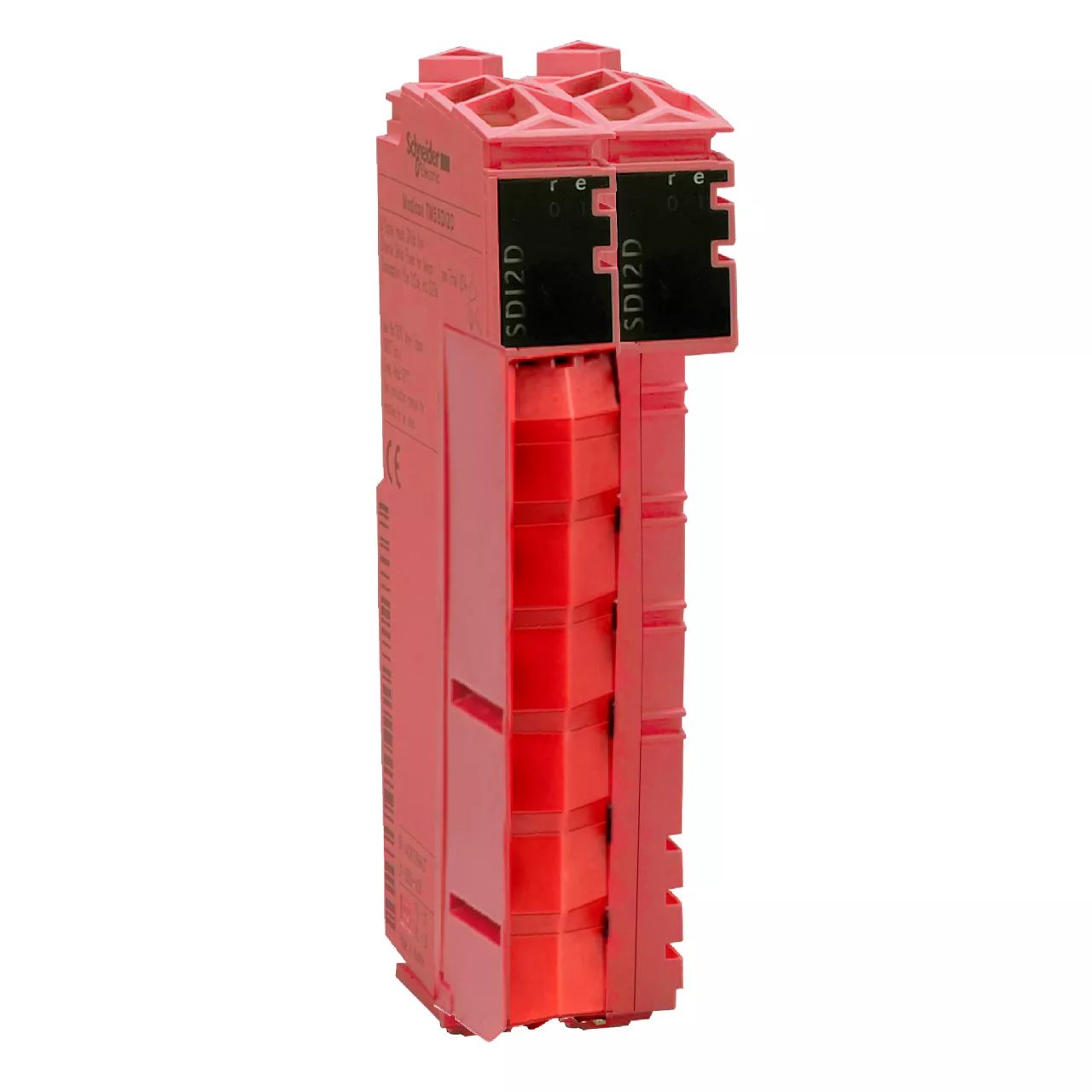

Modicon TM5, moduł mieszanych We/Wy bezpieczeństwa, 2 wejścia cyfrowe typu sink, wyjścia przekaźnikowe 2 NO, 24 VDC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TM5SDM4DTRFS |
| GTIN(EAN) | 3595864128146 |
| Price unit | piece |
| Catalog price | 4 059,00 zł (3 300,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 10 g |
| ETIM class: | PLC digital I/O-module |
| Input current at signal 1: | 3.3 mA |
| Supply voltage DC: | 24 - 24 V |
| Number of digital inputs: | 2 |
| Number of digital outputs: | 2 |
| Suitable for safety functions: | yes |
| Appendant operation agent (Ex ib): | no |
| Type of output voltage: | DC |
| Appendant operation agent (Ex ia): | no |
| Depth: | 108 mm |
| Explosion safety category for dust: | None |
| Width: | 60 mm |
| Voltage type (supply voltage): | DC |
| Short-circuit protection, outputs available: | yes |
| Output current: | 50 A |
| Type of electric connection: | Other |
| Type of digital output: | Relay |
| Type of voltage (input voltage): | DC |
| Redundancy: | no |
| Permitted voltage at input: | 20.4 - 28.8 V |
| Explosion safety category for gas: | None |
| Permitted voltage at output: | 20.4 - 28.8 V |
| Performance level according to EN ISO 13849-1: | Level e |
| Time delay at signal change: | 150 - 150 ms |
| Height: | 32 mm |
| SIL according to IEC 61508: | 3 |
