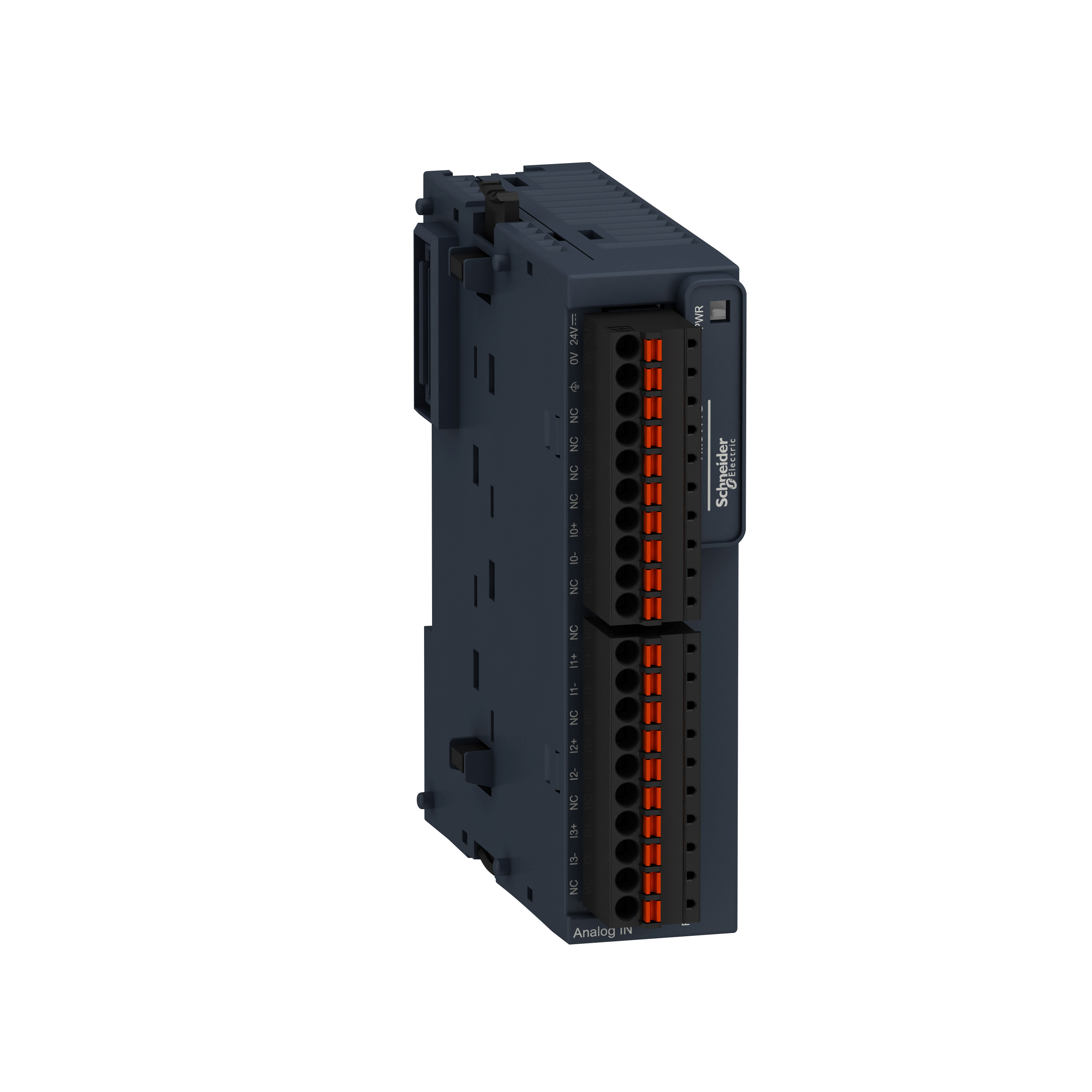

Modicon TM3, moduł wejść analogowych, 4 wejścia różnicowe temperaturowe, wysoka rozdzielczość, zaciski sprężynowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | TM3TI4DG |
GTIN(EAN) | 3606481298393 |
Price unit | piece |
Catalog price | 1 388,67 zł (1 129,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 200 g |
ETIM class: | PLC analogue I/O-module |
Input, resistance thermometer: | no |
Input, resistor: | yes |
Input signal, configurable: | no |
Input, thermocouple: | yes |
Output, current: | no |
Resolution of the analogue inputs: | 16 b |
Output signal configurable: | no |
Resolution of the analogue outputs: | 12 b |
Output, voltage: | no |
Suitable for safety functions: | no |
Number of analogue inputs: | 4 |
Number of analogue outputs: | 0 |
Appendant operation agent (Ex ib): | no |
Appendant operation agent (Ex ia): | no |
Depth: | 70 mm |
Explosion safety category for dust: | None |
Width: | 23.6 mm |
Type of electric connection: | Spring clamp connection |
Input, voltage: | yes |
Input, current: | yes |
Analogue outputs configurable: | no |
Explosion safety category for gas: | None |
Performance level according to EN ISO 13849-1: | None |
Height: | 90 mm |
Analogue inputs configurable: | yes |
SIL according to IEC 61508: | None |
