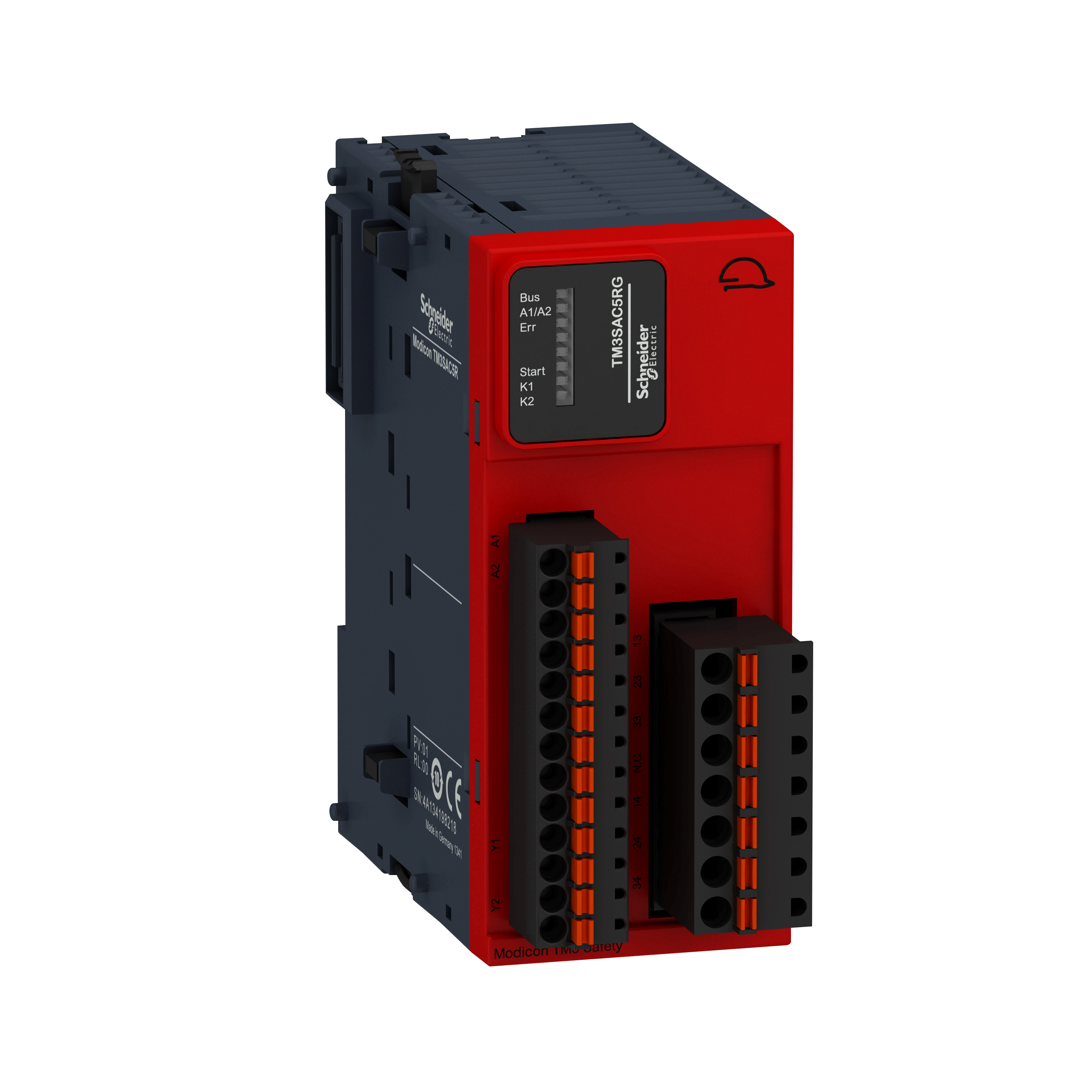

Modicon TM3, wielofunkcyjny moduł bezpieczeństwa, 1 funkcja, kategoria 3, 24 VDC, zaciski sprężynowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TM3SAC5RG |
| GTIN(EAN) | 3606485392981 |
| Price unit | piece |
| Catalog price | 1 408,35 zł (1 145,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 269 g |
| ETIM class: | Device for monitoring of safety-related circuits |
| With approval for BG BIA: | no |
| Rail mounting possible: | yes |
| Type of safety according to IEC 61496-1: | None |
| Stop category according to IEC 60204: | 1 |
| Depth: | 73 mm |
| With approval for TÜV: | yes |
| Width: | 43.7 mm |
| Model: | Other |
| With muting function: | no |
| With approval according to UL: | yes |
| Type of electric connection: | Spring clamp connection |
| Suitable for monitoring of position switches: | no |
| Release-delay: | 0.04 - 0.04 s |
| Suitable for monitoring of valves: | no |
| Suitable for monitoring of tactile sensors: | no |
| Performance level according to EN ISO 13849-1: | Level d |
| Evaluation inputs: | Other |
| Height: | 94 mm |
| With start input: | no |
| Number of outputs, safety related, undelayed, with contact: | 3 |
| Suitable for monitoring of optoelectronic protection equipment: | no |
| Suitable for monitoring of emergency-stop circuits: | yes |
| With feedback circuit: | no |
| SIL according to IEC 61508: | 2 |
| Suitable for monitoring of proximity switches: | no |
| Suitable for monitoring of magnetic switches: | no |
| With detachable clamps: | no |
| Voltage type for actuating: | DC |
| Rated control supply voltage DC: | 24 - 24 V |
