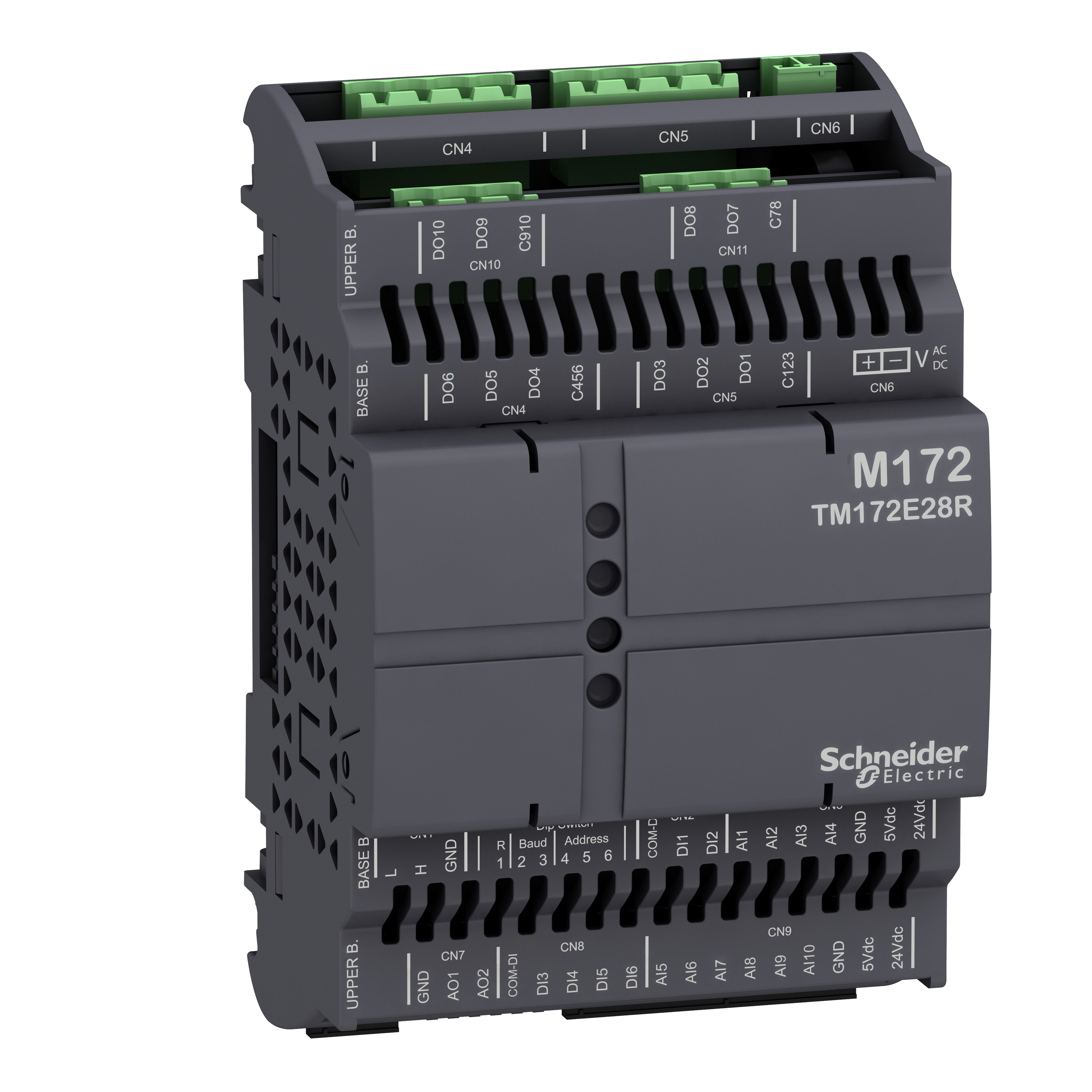

Modicon M172, Moduł rozszerzeń We/Wy PLC HVAC, 6 DI, 10 AI, 10 DO, 2 AO, CAN
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TM172E28R |
| GTIN(EAN) | 3606481267627 |
| Price unit | piece |
| Catalog price | 1 772,43 zł (1 441,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 258 g |
| ETIM class: | PLC analogue/digital I/O-module |
| Width: | 72 mm |
| Voltage type (supply voltage): | AC/DC |
| Number of digital outputs: | 10 |
| Suitable for safety functions: | no |
| Number of digital inputs: | 6 |
| Explosion safety category for dust: | None |
| Supply voltage DC: | 20 - 38 V |
| Number of analogue outputs: | 2 |
| SIL according to IEC 61508: | None |
| Number of analogue inputs: | 10 |
| Depth: | 59 mm |
| Explosion safety category for gas: | None |
| Performance level according to EN ISO 13849-1: | None |
| Appendant operation agent (Ex ia): | no |
| Supply voltage AC 50 Hz: | 24 - 24 V |
| Supply voltage AC 60 Hz: | 24 - 24 V |
| Height: | 110 mm |
| Appendant operation agent (Ex ib): | no |
| Input current at signal 1: | 0.5 mA |
| Analogue input, resistor temperature: | yes |
| Type of electric connection: | Screw connection |
| Analogue input, thermocouple: | no |
| Analogue input, resistor: | no |
| Type of digital output: | Relay |
| Analogue input signal configurable: | yes |
| Permitted voltage at input: | 0 - 24 V |
| Type of voltage (input voltage): | DC |
| Time delay at signal change: | 200 - 200 ms |
| Type of output voltage: | AC |
| Analogue input, current: | yes |
| Analogue output, voltage: | yes |
| Resolution of the analogue outputs: | 13 b |
| Analogue output signal configurable: | yes |
| Resolution of the analogue inputs: | 13 b |
| Analogue output, current: | yes |
| Output current at digital output: | 3 A |
| Output voltage at digital output: | 240 - 240 V |
| Analogue input, voltage: | yes |
| Short-circuit protection, digital outputs available: | no |
| Digital in-/outputs, configurable: | no |
