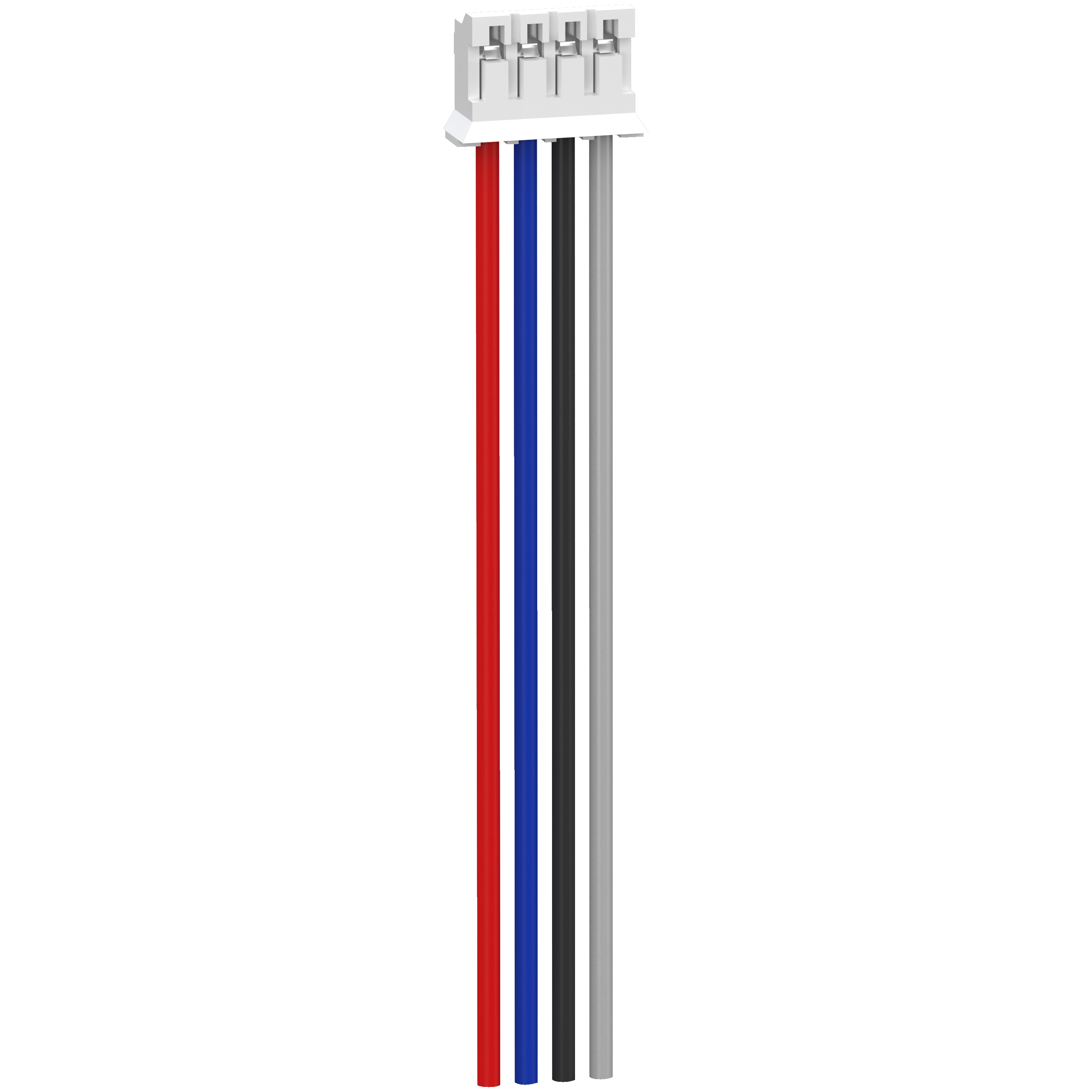

Modicon M171, Kabel ze złączem 4-pin do wyjść analogowych, 2 m, 5 sztuk
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TM171ACB4OAO2M |
| GTIN(EAN) | 3606480752445 |
| Price unit | piece |
| Catalog price | 43,67 zł (35,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 35 g |
| ETIM class: | Data and communication cable |
| Conductor material: | Copper |
| Screen over stranding element: | None |
| Outer diameter approx.: | 10 mm |
| Stranding: | Other |
| Material outer sheath: | Other |
| UV resistant: | no |
| AWG size: | 24 |
| Conductor category: | Class 5 = flexible |
| Category: | 5 |
| Stranding element: | No |
| Material armouring: | Other |
| Colour outer sheath: | Other |
| Diameter conductor: | 1 mm |
| Number of stranding elements: | 1 |
| Radial water blocking cable: | no |
| Longitudinal water blocking cable: | no |
| Approved type of underground installation: | Other |
| Min. permitted bending radius, stationary application/permanent installation: | 15 mm |
| Protective sheath: | Other |
| Min. permitted bending radius, moving application with forced guidance: | 15 mm |
| Min. permitted bending radius, moving application/free movement: | 15 mm |
| Specification core insulation: | Other |
| Specification material outer sheath: | Other |
| Armouring/reinforcement: | None |
| Permitted cable outer temperature during assembling/handling: | 10 - 50 °C |
| Permitted cable outer temperature after assembling without vibration: | 10 - 50 °C |
| Cable geometry: | Round |
| Certified for shipboard application: | no |
| Suitable as signalling cable: | no |
| Number of cores: | 4 |
| Suitable as computer data cable: | yes |
| Core identification: | Colour |
| Suitable as telephone cable: | no |
| Core identification according to HD 308 S2: | no |
| Nominal cross section conductor: | 0.8 mm² |
| Material core insulation: | Other |
| Suitable for underground installation: | no |
| Conductor surface: | Other |
| Halogen free according to EN IEC 60754-2: | no |
| Low smoke according to EN IEC 61034-2: | no |
| Compatible with Grade2TV according to XP-C 90-483: | no |
| Compatible with Grade3TV according to XP-C 90-483: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Weight: | 0.35 kg/km |
| Halogen free according to EN 60754-1/2: | no |
| Insulation integrity according to IEC 60331: | no |
| Low smoke (according to EN 61034-2): | no |
| Oil resistant (according to IEC 60811-404): | no |
