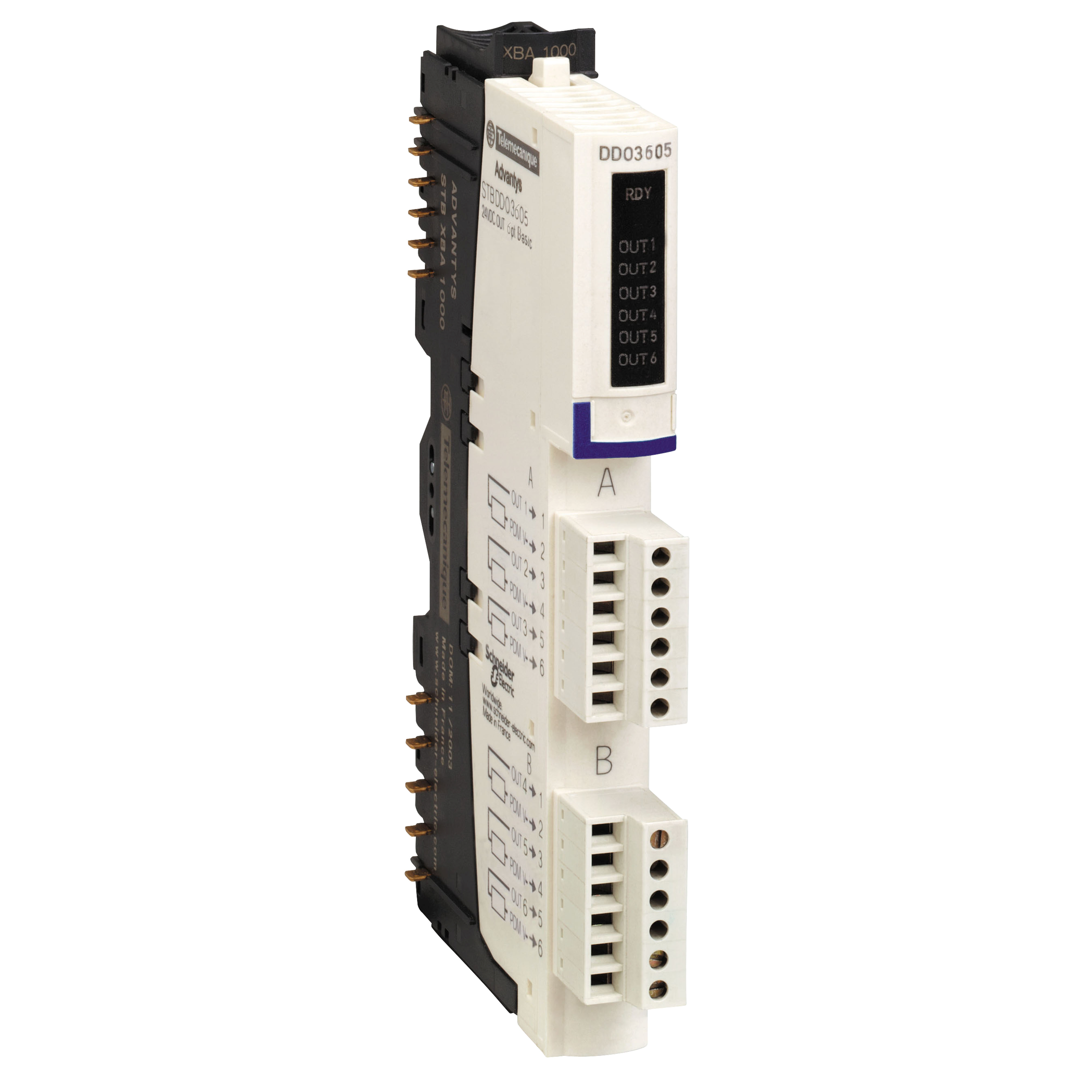

Moduł 24VDC OUT 6PT BASIC zestaw CONNS,BASE
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | STBDDO3605K |
| GTIN(EAN) | 3595863949346 |
| Price unit | piece |
| Catalog price | 632,22 zł (514,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 137 g |
| ETIM class: | Fieldbus, decentr. periphery - digital I/O module |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Time delay at signal change: | 0.55 - 0.9 ms |
| Digital outputs configurable: | yes |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Performance level according to EN ISO 13849-1: | None |
| Width: | 128.3 mm |
| Permitted voltage at output: | 24 - 24 V |
| Permitted voltage at input: | 19.2 - 30 V |
| Radio standard UMTS: | no |
| Number of digital outputs: | 6 |
| Suitable for safety functions: | no |
| Number of digital inputs: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces other: | 0 |
| Number of interfaces PROFINET: | 0 |
| With optical interface: | no |
| SIL according to IEC 61508: | None |
| Supporting protocol for SERCOS: | no |
| IO link master: | no |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Height: | 13.9 mm |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for PROFIsafe: | no |
| Output current: | 0.25 A |
| Type of electric connection: | Screw connection |
| Supporting protocol for SafetyBUS p: | no |
| Short-circuit protection, outputs available: | yes |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for PROFINET IO: | no |
| System accessory: | yes |
| Voltage type (supply voltage): | AC/DC |
| Supporting protocol for INTERBUS-Safety: | no |
| Type of voltage (input voltage): | AC/DC |
| Fieldbus connection over separate bus coupler possible: | yes |
| Depth: | 70 mm |
| Wall mounting/direct mounting: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Digital inputs configurable: | no |
| Type of digital output: | Other |
| Type of output voltage: | AC/DC |
| Supporting protocol for TCP/IP: | yes |
| Supporting protocol for ASI: | no |
| Supporting protocol for PROFIBUS: | yes |
| Appendant operation agent (Ex ia): | no |
| Supporting protocol for CAN: | yes |
| Appendant operation agent (Ex ib): | no |
| Front built-in possible: | no |
| Supporting protocol for INTERBUS: | yes |
| Supporting protocol for KNX: | no |
| Degree of protection (IP): | IP20 |
| Supply voltage DC: | 24 - 24 V |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Rail mounting possible: | no |
| Supporting protocol for DeviceNet: | yes |
| Rack-assembly possible: | yes |
