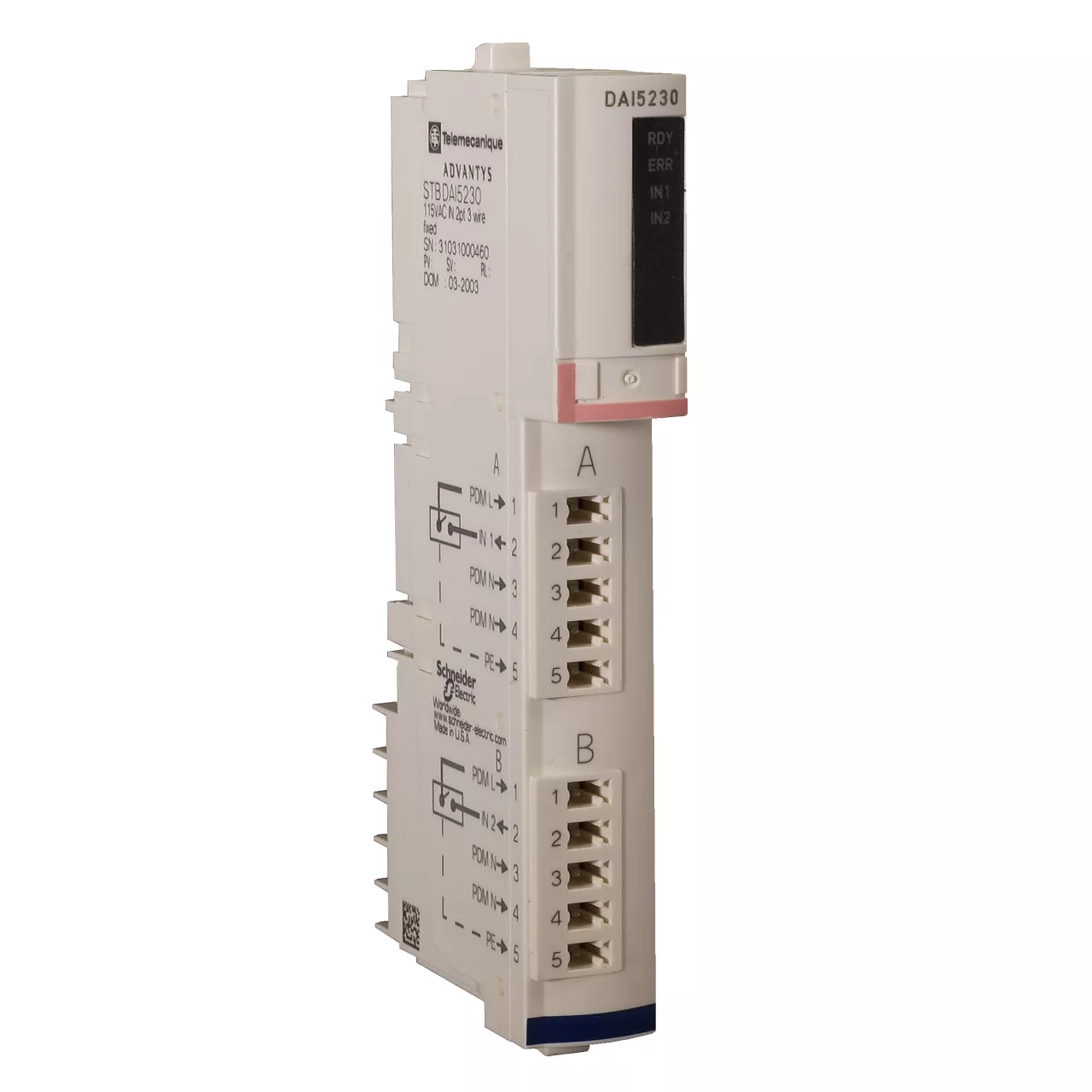

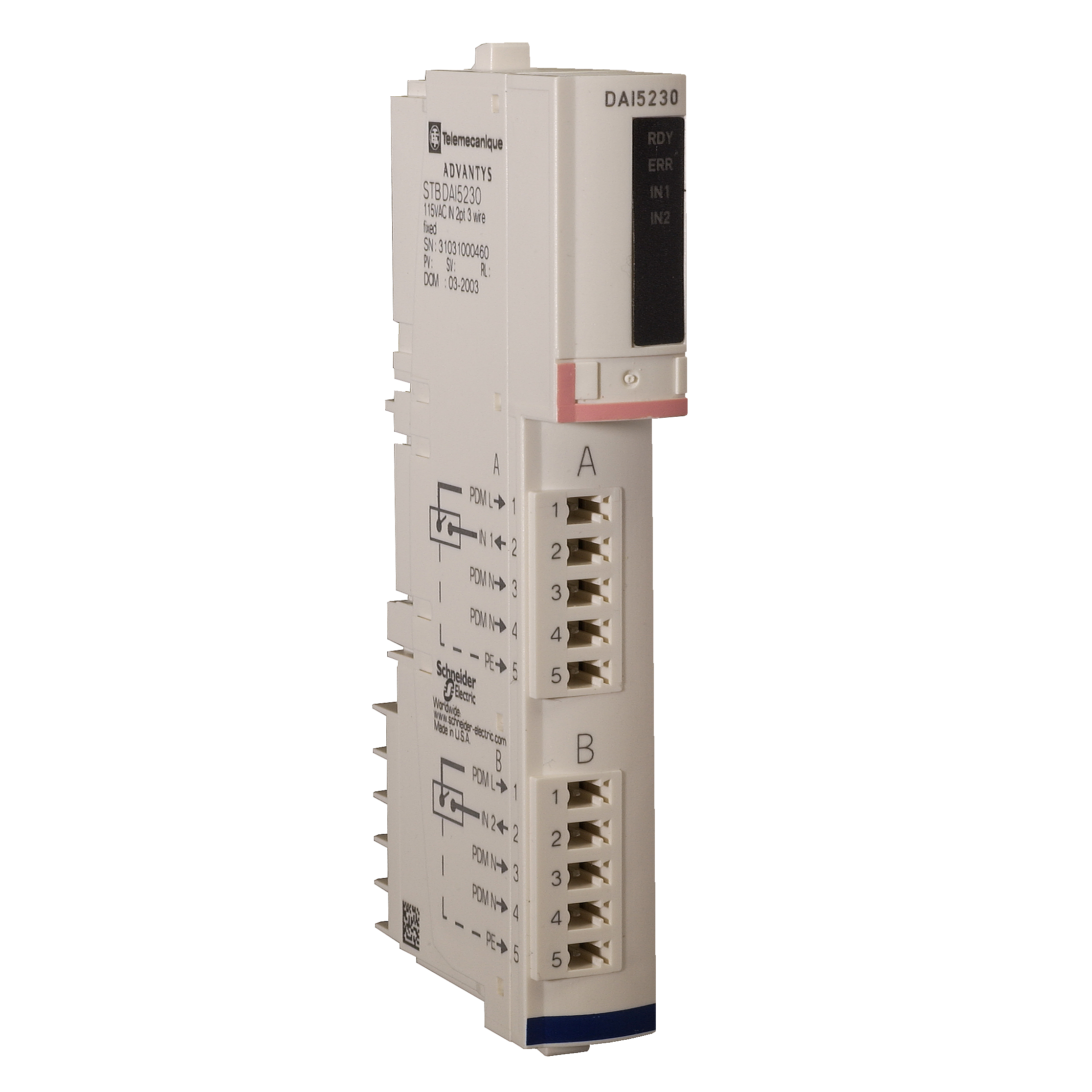

Moduł 115VAC 2PT zestaw CONNS,
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | STBDAI5230K |
| GTIN(EAN) | 3595863989427 |
| Price unit | piece |
| Catalog price | 761,37 zł (619,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 139 g |
| ETIM class: | Fieldbus, decentr. periphery - digital I/O module |
| Number of digital inputs: | 2 |
| Suitable for safety functions: | no |
| Number of digital outputs: | 0 |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| IO link master: | no |
| Explosion safety category for dust: | None |
| Width: | 125 mm |
| Permitted voltage at input: | -3 - 30 V |
| Radio standard GPRS: | no |
| Explosion safety category for gas: | None |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| Digital outputs configurable: | no |
| Performance level according to EN ISO 13849-1: | None |
| Time delay at signal change: | 0.925 - 1.35 ms |
| Digital inputs configurable: | no |
| Wall mounting/direct mounting: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Input current at signal 1: | 2.5 mA |
| Rack-assembly possible: | no |
| Supporting protocol for KNX: | no |
| Front built-in possible: | no |
| Supply voltage AC 60 Hz: | 115 - 115 V |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | yes |
| Supply voltage AC 50 Hz: | 115 - 115 V |
| Rail mounting possible: | no |
| Supporting protocol for DeviceNet: | yes |
| Supporting protocol for TCP/IP: | yes |
| Appendant operation agent (Ex ib): | no |
| Supporting protocol for PROFIBUS: | yes |
| Degree of protection (IP): | IP20 |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | yes |
| Type of output voltage: | AC/DC |
| Supporting protocol for CAN: | yes |
| Appendant operation agent (Ex ia): | no |
| Depth: | 65.1 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Voltage type (supply voltage): | AC/DC |
| Supporting protocol for EtherNet/IP: | yes |
| Short-circuit protection, outputs available: | no |
| Type of electric connection: | Screw connection |
| Supporting protocol for SafetyBUS p: | no |
| Type of digital output: | None |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Type of voltage (input voltage): | AC/DC |
| Fieldbus connection over separate bus coupler possible: | yes |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 18.4 mm |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 0 |
| System accessory: | yes |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of interfaces PROFINET: | 0 |
| With optical interface: | no |
| SIL according to IEC 61508: | None |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
